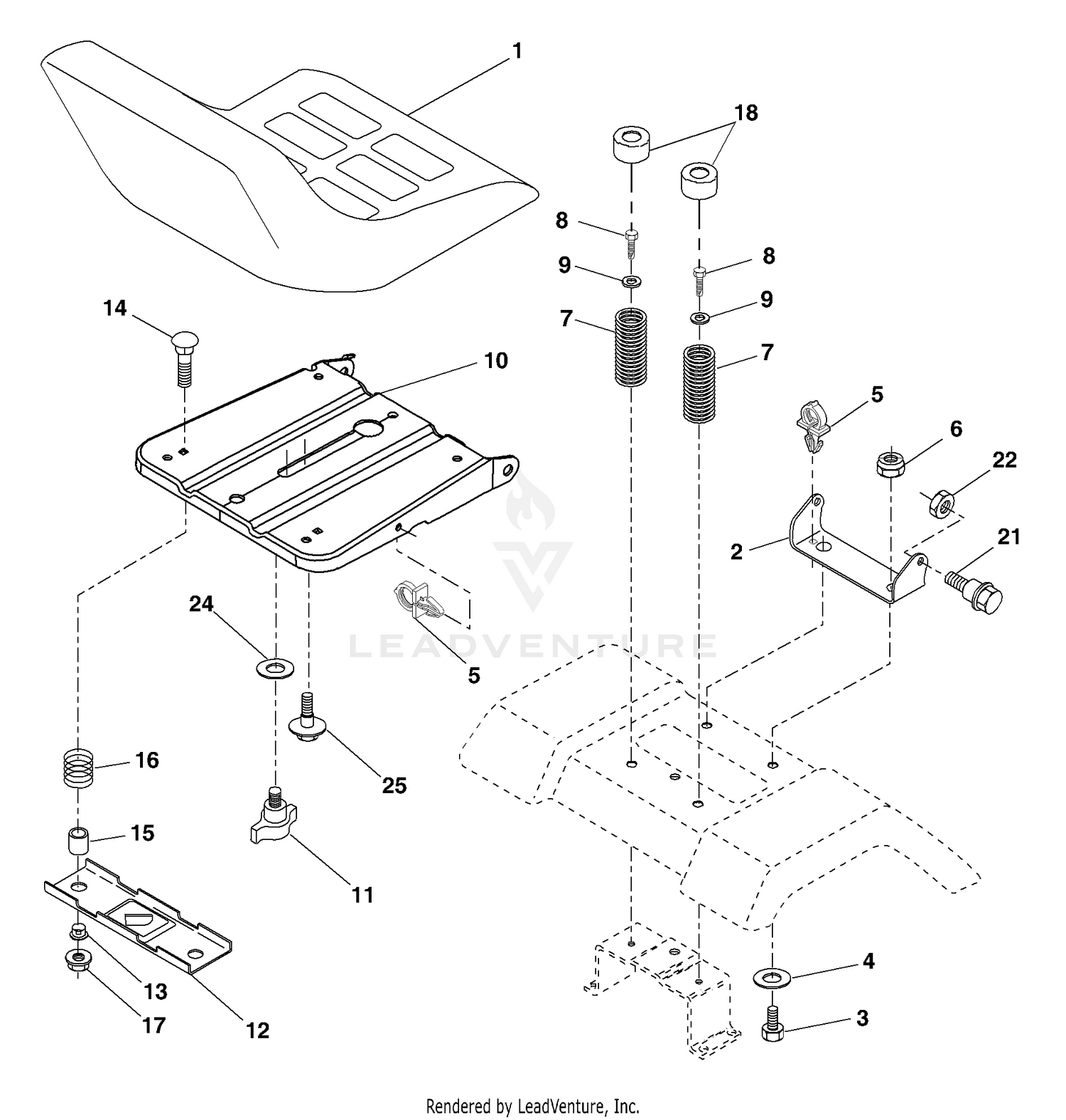

| Ref | Part Number | Description |
|---|
| 1 |
189022 |
Seat Price: Call Us |
| 2 |
140551 |
Bracket Pivot Seat Price: Call Us |
| 3 |
71110616 |
Bolt Fin Hex 3/8-16 unc x 1 Price: Call Us |
| 4 |
19131610 |
Washer 13/32 x 1 x 10 Ga. Price: Call Us |
| 5 |
145006 |
Clip Push-In Price: Call Us |
| 6 |
73800600 |
Nut Hex w/Ins. 3/8-16 unc Price: Call Us |
| 7 |
124181X |
Spring Seat Cprsn Price: Call Us |
| 8 |
17000616 |
Screw 3/8-16 x 1-1/2 Price: Call Us |
| 9 |
19131614 |
Washer 13/32 x 1 x 14 Ga. Price: Call Us |
| 010 |
98-7531 |
HOOK-ENGINE Price: $7.56 |
| 10 |
182493 |
Pan Seat Price: Call Us |
| 11 |
166369 |
Knob Seat Adj. Wingnut Price: Call Us |
| 12 |
121246X |
Bracket Mounting Switch Price: Call Us |
| 13 |
121248X |
Bushing Snap Blk Nyl 50 Id Price: Call Us |
| 14 |
72050412 |
Bolt Rdhd Sqnk 1/4-20 x 1-1/2 Price: Call Us |
| 15 |
121249X |
Spacer Split 28x .88 Zinc Price: Call Us |
| 16 |
123740X |
Spring Cprsn Plate 1.310 Ga. Price: Call Us |
| 17 |
123976X |
Nut Lock 1/4 Lge Flg Gr. 5 Zinc Price: Call Us |
| 18 |
124238X |
Cap Spring Seat Price: Call Us |
| 020 |
100-9195 |
BOLT Price: $0.72 |
| 21 |
171852 |
Bolt Shoulder 5/16-18 unc Price: Call Us |
| 22 |
73800500 |
Nut Hex Lock W/Ins 5/16-18 Price: Call Us |
| 24 |
19171912 |
Washer 17/32 x 1-3/16 x 12 Ga. Price: Call Us |
| 030 |
105-3780 |
GASKET-HEAD, CYLINDER Price: $189.76 |
| 040 |
106-6866 |
CYLINDER HEAD ASM This part replaces 98-9460. Price: $1,257.68 |
| 050 |
105-3705 |
CAP-SEALING This part replaces 98-9395. Price: $6.44 |
| 060 |
98-9687 |
PLUG This part replaces 98-7540. Price: $2.86 |
| 070 |
107-9066 |
GUIDE-VALVE, INLET This part replaces 98-9499. Price: $12.65 |
| 080 |
107-9067 |
GUIDE-VALVE, EXHAUST This part replaces 98-9500. Price: $13.17 |
| 090 |
98-9389 |
CAP-SEALING Price: $5.22 |
| 100 |
98-9479 |
BOLT-HEAD, CYLINDER Price: $14.42 |
| 110 |
98-9647 |
BOLT-HEAD, CYLINDER Price: $15.60 |
| 120 |
98-7509 |
O-RING Price: $4.31 |
