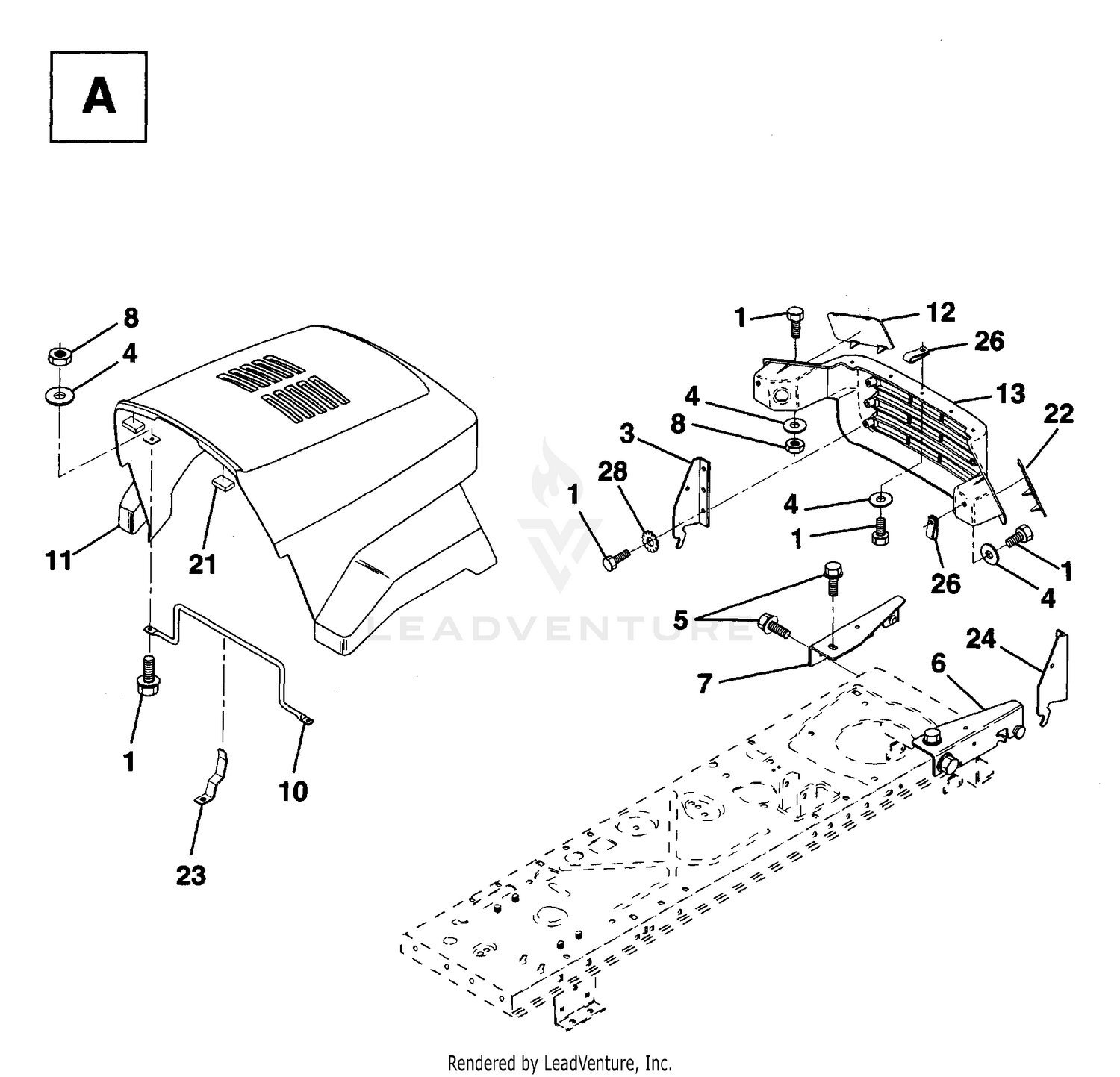

| Ref | Part Number | Description |
|---|
| 1 |
596582501 |
Bolts This part replaces 874780410. Price: $2.99 |
| 1 |
99-5107 |
NUT-LOCK Price: $1.77 |
| 2 |
100-7631 |
PULLEY-IDLER Price: $146.29 |
| 3 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 3 |
532128445 |
BRACKET HOOD Price: $2.99 |
| 4 |
108-1438 |
WASHER-HARDENED Price: $1.76 |
| 4 |
596582301 |
Washers This part replaces 819091016. Price: $2.99 |
| 5 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 817490512. Price: $3.99 |
| 5 |
99-7667 |
WASHER-FLAT Price: $4.80 |
| 6 |
105-4886 |
NUT-TINNERMAN This part replaces 112-4576. Price: $2.37 |
| 6 |
532140051 |
BRACKET ASSY HOOD Price: $3.68 |
| 7 |
112-4874 |
SCREW-HH, TAP Price: $8.70 |
| 8 |
117-8461-03 |
ARM-TRAILING Price: $265.67 |
| 8 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873680400. Price: $3.99 |
| 9 |
117-8465-03 |
LINK-LIFT Price: $29.79 |
| 10 |
119-6301-03 |
ARM-GAUGE, WHEEL Price: $153.51 |
| 10 |
532130850 |
BRACE HOOD Price: $2.99 |
| 11 |
117-8469-03 |
BRACKET-PULLEY Price: $20.10 |
| 11 |
532140142 |
HOOD - LR Price: $339.99 |
| 12 |
117-8484 |
TAB-LOCKING Price: $36.51 |
| 12 |
532130986 |
LENS.LR.LH.HUSQV. Price: $12.99 |
| 13 |
117-8544 |
WHEEL-CASTER Price: $120.71 |
| 13 |
532404673 |
GRILLE.KIT.SERVICE.HUSQ.LR This part replaces 532130984. Price: $449.99 |
| 14 |
119-2985 |
BUSHING Price: $7.60 |
| 15 |
119-2992-03 |
BRACKET-ADJUST,TENSION Price: $42.10 |
| 16 |
119-6184 |
BLOCK-PIVOT Price: $36.42 |
| 17 |
121-2772-03 |
SUPPORT-COVER, BELT Price: $43.49 |
| 18 |
119-6189 |
TUBE-PIVOT Price: $5.65 |
| 19 |
119-6191 |
TUBE-PIVOT Price: $4.68 |
| 20 |
119-6192 |
TUBE-PIVOT Price: $6.50 |
| 21 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 21 |
532126938 |
BUMPER HOOD T Price: $3.99 |
| 22 |
323-6 |
SCREW-HH Price: $0.66 |
| 22 |
532130985 |
LENS RH Price: $13.22 |
| 23 |
3234-40 |
SCREW-HF Price: $3.38 |
| 23 |
532139969 |
HOOD LATCH Price: $3.45 |
| 24 |
325-14 |
SCREW-HH Price: $2.64 |
| 24 |
532142873 |
BRACKET PIVOT Price: $2.99 |
| 25 |
325-9 |
SCREW-HH Price: $1.87 |
| 26 |
325-10 |
SCREW-HH Price: $1.82 |
| 26 |
532052921 |
CLIP TINNERMAN Price: $2.68 |
| 27 |
328-2 |
SCREW-HH Price: $6.51 |
| 28 |
3217-11 |
NUT-HEX Price: $0.95 |
| 28 |
811050400 |
Washer, Lock, External Tooth 1/4 Price: $5.99 |
| 29 |
119-6253 |
SPACER-LIMITER Price: $9.65 |
| 30 |
3296-51 |
NUT-LOCK, NI Price: $3.23 |
