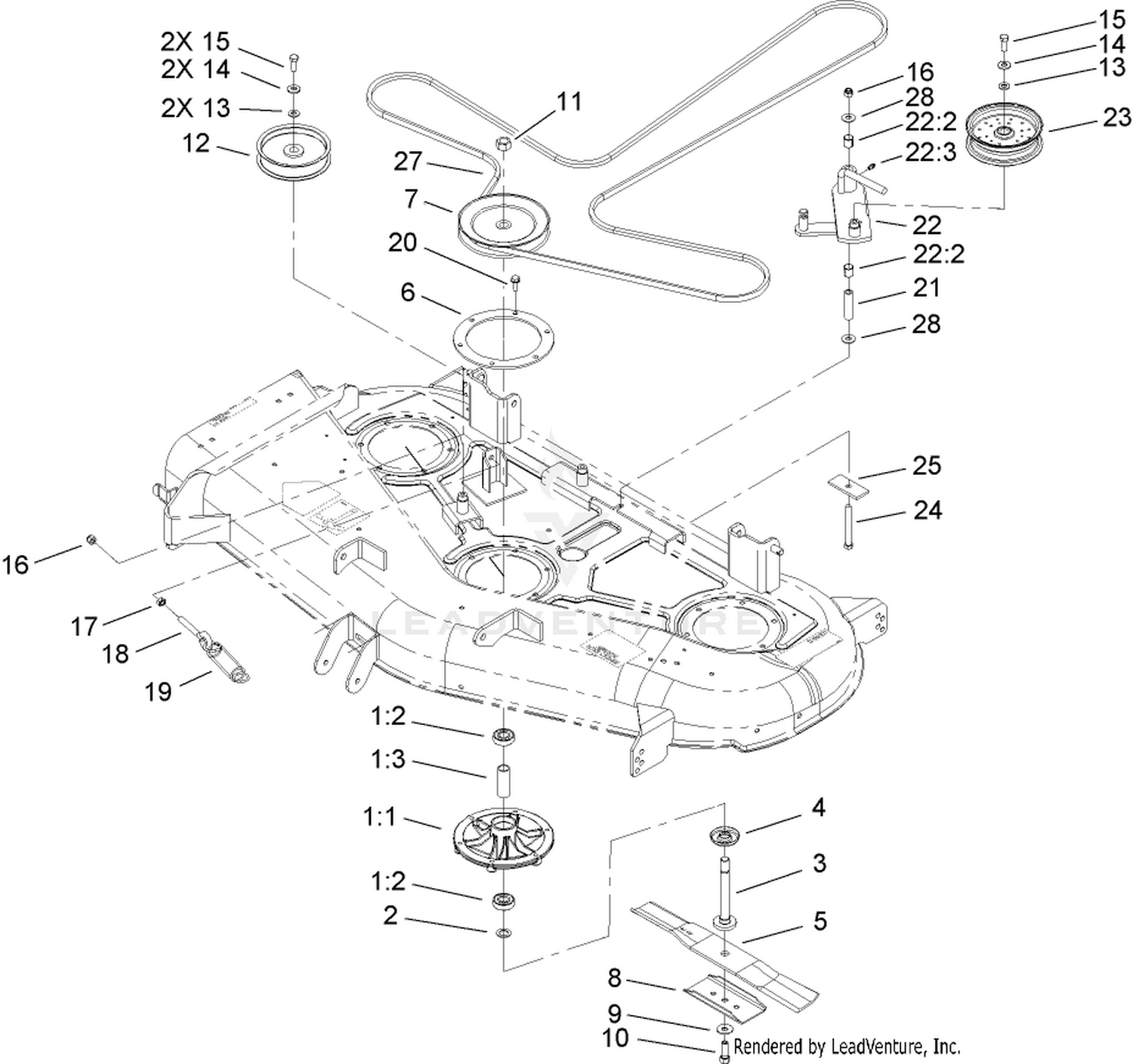

| Ref | Part Number | Description |
|---|
| 2 |
80-4380 |
SPACER Price: $4.08 |
| 3 |
80-4341 |
SHAFT-SPINDLE Price: $40.48 |
| 4 |
80-4360 |
SHIELD-BEARING Price: $12.11 |
| 5 |
107-1742-03 |
BLADE-RECYCLER Price: $24.06 |
| 6 |
107-1743-03 |
RING-SUPPORT, DECK Price: $17.53 |
| 7 |
107-1740 |
PULLEY AND HUB ASM Price: $84.60 |
| 8 |
80-0510-03 |
STIFFENER-BLADE Price: $10.93 |
| 9 |
3290-465 |
WASHER-BELLEVILLE Price: $2.89 |
| 10 |
26-0671 |
SCREW-HH Price: $7.99 |
| 11 |
3219-6 |
NUT-HEX Price: $2.78 |
| 12 |
1-613098 |
PULLEY-IDLER Price: $33.36 |
| 13 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 14 |
98-5975 |
WASHER-BELLEVILLE Price: $3.09 |
| 15 |
323-6 |
SCREW-HH Price: $0.66 |
| 16 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 17 |
3217-7 |
NUT-HEX Price: $0.28 |
| 18 |
94-2547 |
BOLT-EYE Price: $15.17 |
| 19 |
105-6992 |
SPRING-EXTENSION Price: $21.88 |
| 20 |
32144-41 |
SCREW-TAPTITE Price: $4.79 |
| 21 |
1-603384 |
BUSHING-PIVOT, IDLER Price: $8.74 |
| 22 |
105-7010 |
IDLER ARM ASM Price: $217.31 |
| 23 |
116-4669 |
IDLER-PULLEY, FLAT This part replaces 99-8912. Price: $54.77 |
| 24 |
1-800805 |
SCREW-HH Price: $2.42 |
| 25 |
104-8037-03 |
PLATE-BOLT, RETAINER Price: $3.42 |
| 27 |
106-2217 |
BELT-V Price: $190.22 |
