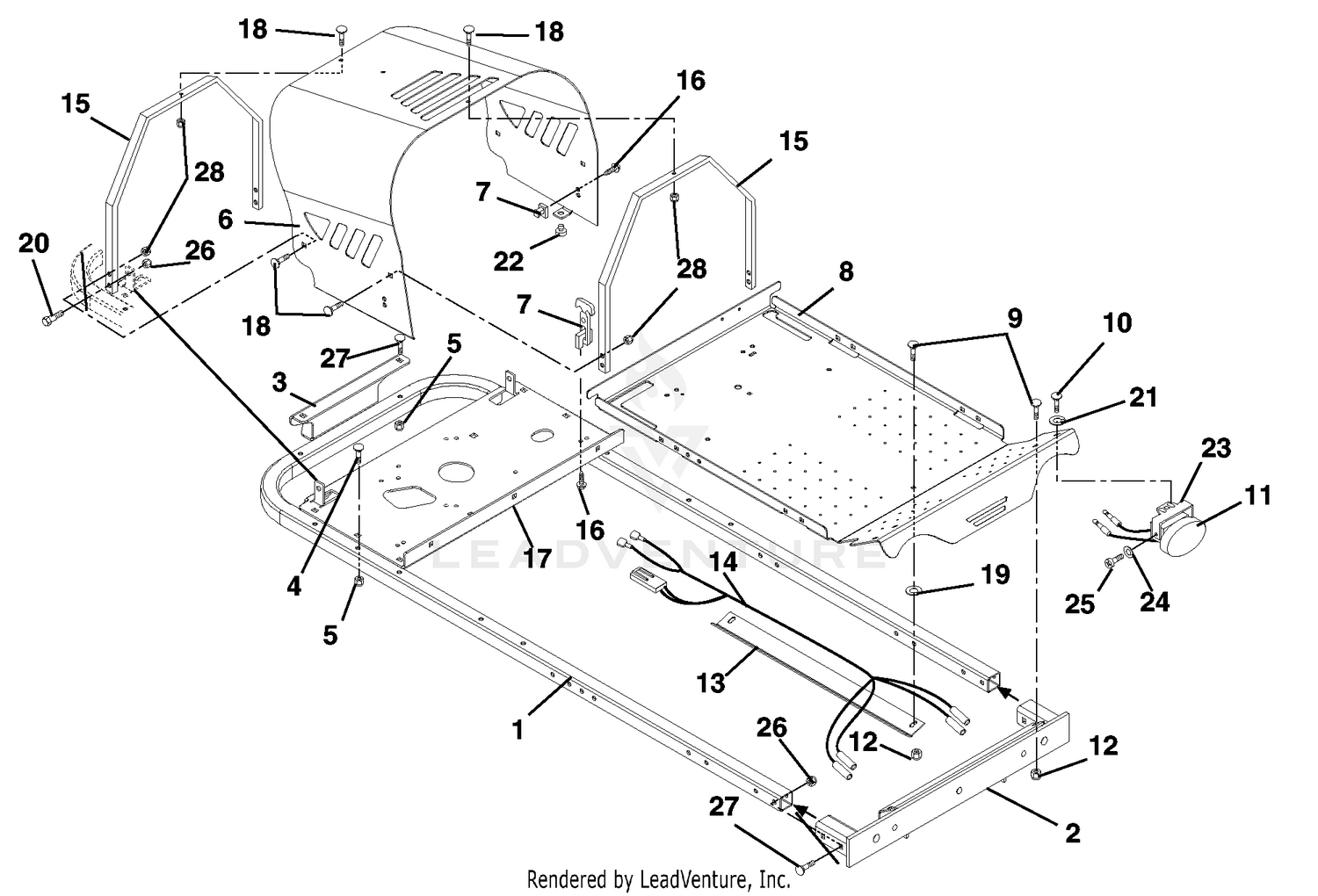

| Ref | Part Number | Description |
|---|
| 1 |
01581251 |
TUBE-FRAME BLK Price: $209.95 |
| 2 |
01600951 |
WMT, AXLE MOUNT Price: $42.95 |
| 3 |
51512800 |
TRAILER HITCH W/DECALS Price: $74.95 |
| 4 |
06200234 |
BLT,RHSN .38-16X2.50 G5 ZCC This part replaces 06224400. Price: $3.95 |
| 5 |
06500726 |
NUT,NYL-FLG .38-16 GF ZCC This part replaces 06545500. Price: $1.45 |
| 6 |
01605053 |
HOOD, ZOOM Price: $142.95 |
| 7 |
09079500 |
LATCH, RUBBER Price: $31.45 |
| 8 |
01578353 |
FOOTREST Price: $154.95 |
| 9 |
06200231 |
BLT-RHSN .31-18X1.00 G5 ZCC This part replaces 06216100. Price: $1.45 |
| 10 |
07008100 |
SCR-CAP BTHD.31-18X.50 GR5 YZ This part replaces 039062. Price: $0.95 |
| 12 |
06500809 |
NUT,NYL-FLG .31-18 GF ZCC This part replaces 06545400. Price: $1.45 |
| 13 |
01589951 |
BKT-HARNESS Price: $20.45 |
| 14 |
01587900 |
HARNESS, LIGHT Price: $29.95 |
| 15 |
01605151 |
BRACE, HOOD Price: $66.50 |
| 16 |
05901825 |
BLT, HWH #10-24X.50 ZCC This part replaces 06116700. Price: $0.45 |
| 17 |
00183651 |
PLATE, ENGINE Price: $111.00 |
| 18 |
06200333 |
BLT, RHSSN .31-18X.625 G5 ZCC This part replaces 06212200. Price: $1.45 |
| 19 |
06401103 |
WSHR, FLT .328X.870X.179 ZCC This part replaces 06439100. Price: $2.95 |
| 20 |
07056700 |
BOLT-SHLDR .375-16X.150 Price: $3.95 |
| 21 |
06300119 |
WSHR-LK-REG .312X.078 ZCC This part replaces 06308600. Price: $0.95 |
| 22 |
07516000 |
BUTTON BUMPER Price: $0.95 |
| 23 |
01603100 |
WMT, LIGHT BRACKET Price: $52.95 |
| 24 |
06311200 |
WSHR-LK 4MMX1MM REG CL ZINC Price: $0.15 |
| 25 |
05980400 |
SCREW-M4X.07X8 SHCS CLZNC Price: $1.95 |
| 26 |
06500822 |
NUT-LK-TOP-FLG .38-16 ZC120 This part replaces 06542000. Price: $0.95 |
| 27 |
06200301 |
BLT,RHSN .38-16X2.25 G5 ZCC This part replaces 06213400. Price: $3.95 |
