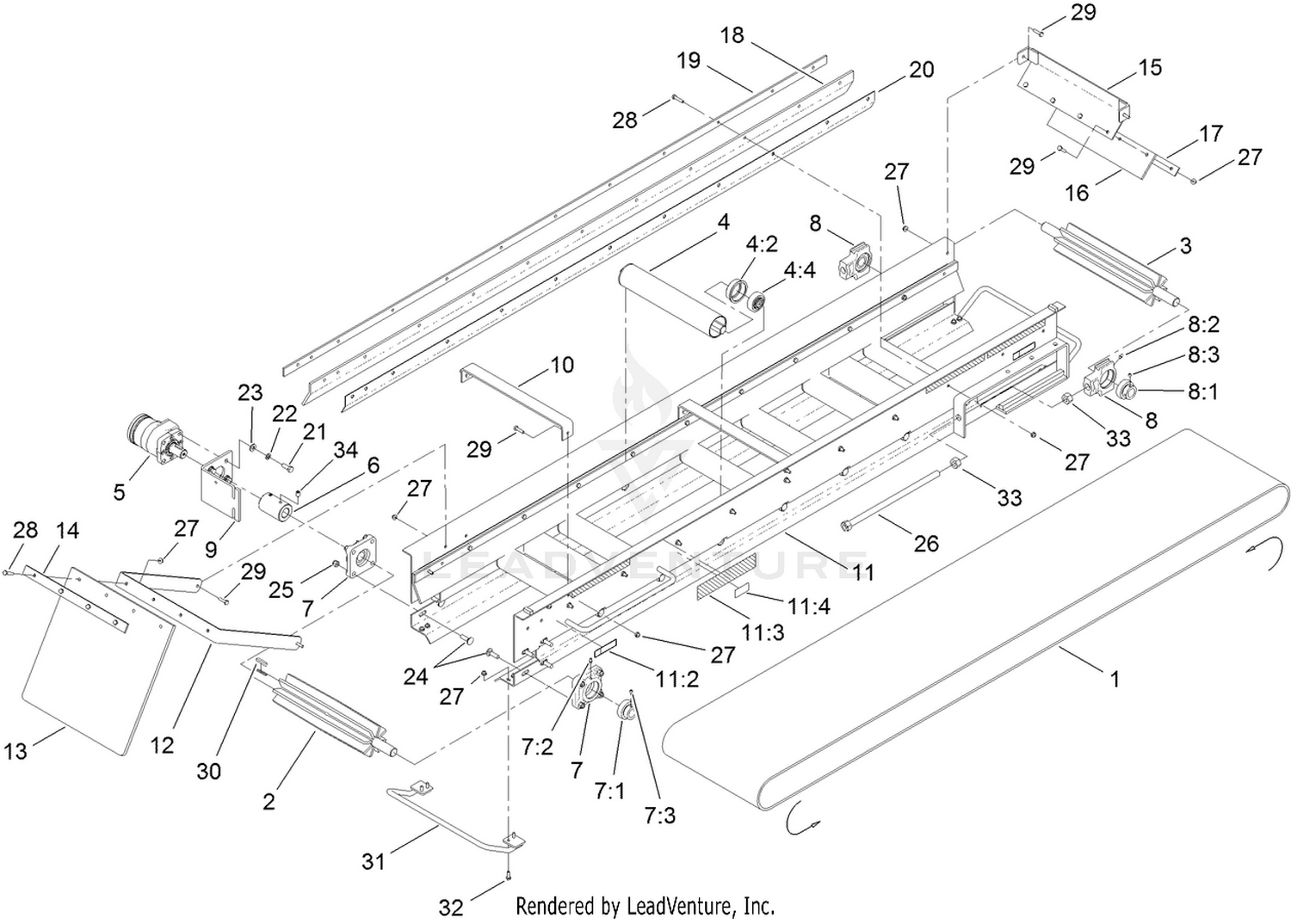

Belt Drive Assembly
Parts (33)
| Ref | Part Number | Description |
|---|---|---|
| 1 | T60191240 | BELT-ENDLESS Price: $991.51 |
| 2 | T36022010-03 | DRIVE ROLLER ASM Price: $595.11 |
| 3 | T36022012-03 | IDLER ROLLER ASM Price: $401.37 |
| 4 | T36021156 | BELT ROLLER ASM Price: $236.60 |
| 5 | T56011022 | HYD MOTOR ASM Price: $488.10 |
| 6 | 120-0908 | COUPLER-RIGID Price: $134.64 |
| 7 | T60116160 | FLANGE-4 BOLT Price: $67.79 |
| 8 | T60114110 | TAKE-UP 1 Price: $30.10 |
| 9 | T36022032-01 | BRACKET-MOUNT, MOTOR Price: $38.82 |
| 10 | T36022060-01 | BAR-SPACER Price: $52.60 |
| 11 | 120-0916 | CONVEYOR ASM Price: $1,379.29 |
| 12 | T36021050-01 | BRACKET-DEFLECTOR Price: $125.35 |
| 13 | T36022002 | DISCONTINUED Price: $80.26 |
| 14 | T36021040-01 | BAR-DEFLECTOR, CROSS CONVEYOR Price: $59.75 |
| 15 | 120-0912-01 | SEAL BRACKET ASM Price: $59.80 |
| 16 | T36021170 | SKIRT-RUBBER, REAR Price: $32.45 |
| 17 | T36021060-01 | BAR-SEAL Price: $53.46 |
| 18 | T36021180 | SKIRT-RUBBER, SIDE Price: $80.66 |
| 19 | T36021190-01 | RETAINER-SKIRT Price: $123.72 |
| 20 | T36021195-01 | SUPPORT-SKIRT This part replaces T36021195. Price: $151.96 |
| 21 | 323-6 | SCREW-HH Price: $0.66 |
| 22 | 3253-21 | WASHER-LOCK Price: $0.28 |
| 23 | 3256-24 | WASHER-FLAT Price: $0.28 |
| 24 | 119-4162 | SCREW-CARR This part replaces 3231-25. Price: $1.73 |
| 25 | 3296-39 | NUT-LOCK, NI Price: $2.29 |
| 26 | T36021110 | TENSIONER ROD ASM Price: $70.73 |
| 27 | 104-7201 | NUT-HF Price: $0.69 |
| 28 | 321-8 | SCREW-HH Price: $0.34 |
| 29 | 321-6 | SCREW-HH Price: $0.25 |
| 30 | T36022014 | KEY-DRIVER Price: $23.62 |
| 31 | T0000-7831-01 | HANDLE ASM This part replaces T0000-7831. Price: $114.65 |
| 32 | 321-4 | SCREW-HH Price: $0.99 |
| 33 | 3217-11 | NUT-HEX Price: $0.95 |
