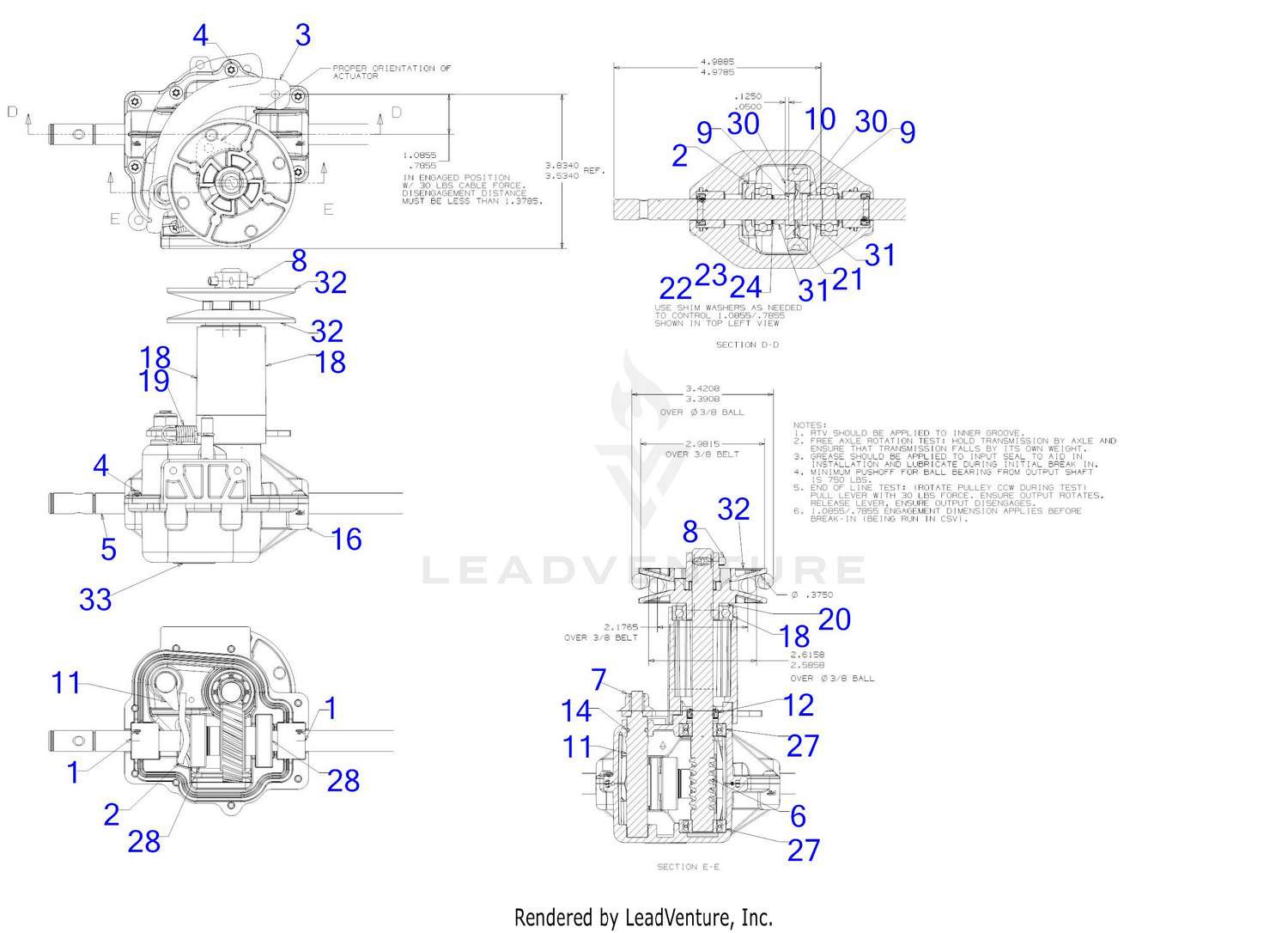

| Ref | Part Number | Description |
|---|
| 1 |
N/A |
BEARING ASSEMBLY |
| 2 |
N/A |
ACTUATOR PLATE |
| 3 |
N/A |
CLUTCH LEVER |
| 4 |
710-04329 |
SCREW .159 x .610 Price: $4.13 |
| 5 |
N/A |
OUTPUT SHAFT |
| 6 |
N/A |
INPUT SHAFT |
| 7 |
712-04065 |
NUT Price: $3.68 |
| 8 |
715-0150 |
ROLL PIN Price: $3.86 |
| 9 |
N/A |
DOWEL PIN |
| 11 |
N/A |
ACTUATOR |
| 12 |
721-04107A |
OIL SEAL Price: $3.95 |
| 14 |
N/A |
O-RING |
| 16 |
N/A |
LOWER HOUSING |
| 18 |
N/A |
CAM TUBE |
| 19 |
732-04313 |
EXTENSION SPRING Price: $3.96 |
| 20 |
736-0287 |
Washer, Flat, .793 x 1.24 x .060 This part replaces 936-0287. Price: $3.93 |
| 21 |
N/A |
WASHER |
| 22 |
736-04202 |
FLAT WASHER .504 X.700X.010 Price: $3.00 |
| 23 |
N/A |
WASHER |
| 24 |
936-0520 |
FLAT WASHER Price: $5.23 |
| 27 |
741-04116 |
BALL BEARING Price: $6.90 |
| 28 |
N/A |
BEARING |
| 30 |
N/A |
HUB |
| 31 |
N/A |
SPACER |
| 32 |
756-04262 |
HALF PULLEY Not Available Price: |
| 33 |
N/A |
LABEL |
