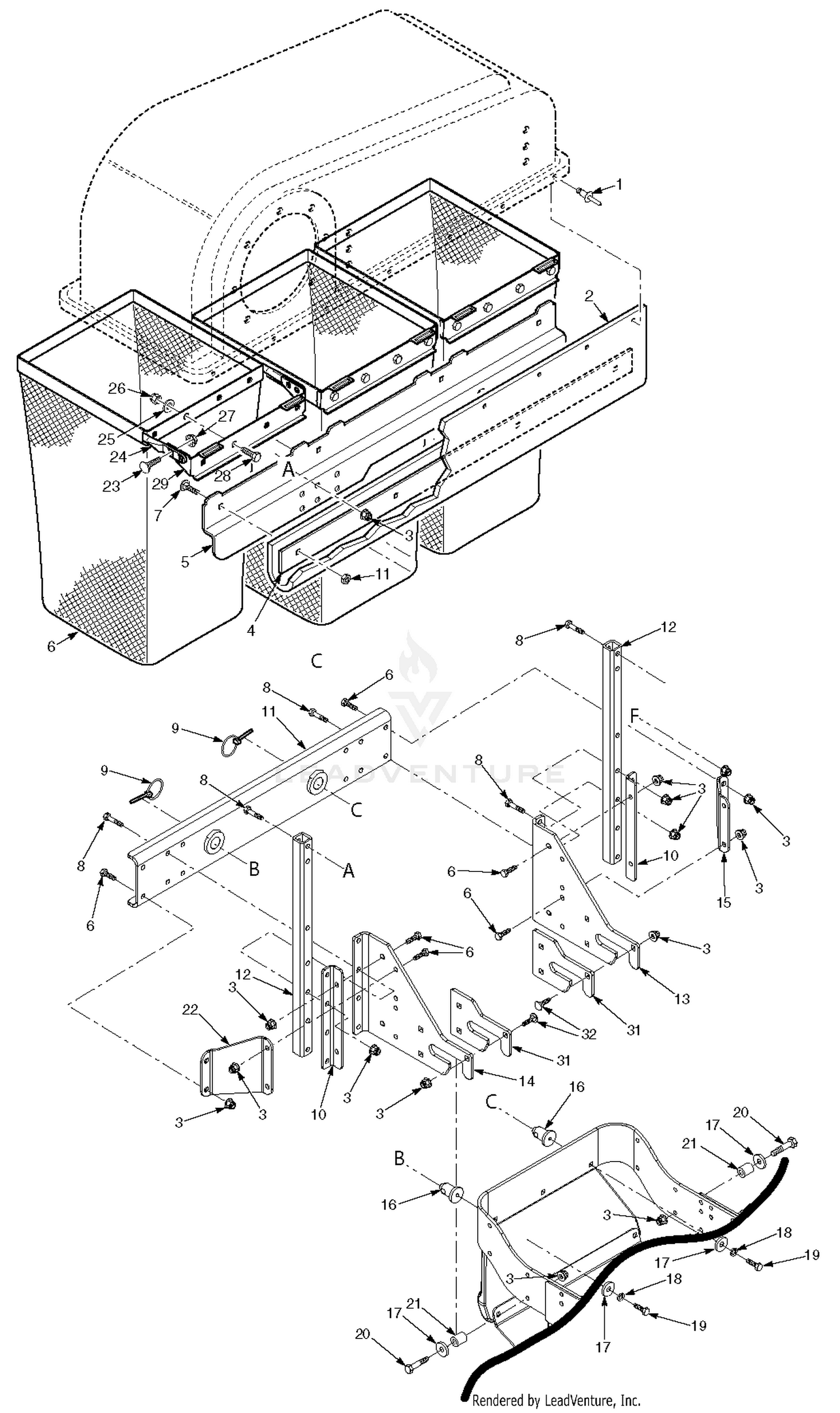

| Ref | Part Number | Description |
|---|
| 1 |
04090-02 |
Pop Rivet, 3/16 x .652 Price: Call Us |
| 2 |
482321 |
Seal, Hood Price: Call Us |
| 3 |
04117-02 |
Nut, Elastic Flange 3/8-16 Price: Call Us |
| 4 |
423312 |
Retainer, Seal Price: Call Us |
| 5 |
452385 |
Support, Bag Frame Price: Call Us |
| 6 |
462968 |
BAG ASSY, GC This part replaces 482569. Price: Call Us |
| 7 |
04003-02 |
Bolt, Carriage 1/4-20 x 3/4" Price: Call Us |
| 8 |
04001-46 |
Bolt, Hex Head 3/8-16 x 2-1/4" Price: Call Us |
| 9 |
04066-04 |
Quick Pin Price: Call Us |
| 10 |
426012 |
Mounting Bracket, Tube Price: Call Us |
| 11 |
453043 |
MTG BRKT WLMT, GC-STC/SCVZ This part replaces 452382. Price: Call Us |
| 12 |
426015 |
Tube, Upright Price: Call Us |
| 13 |
426011 |
Mounting Bracket, GC R.H. Price: Call Us |
| 14 |
426010 |
Mounting Bracket, GC L.H. Price: Call Us |
| 15 |
426017 |
Angle Bracket, GC Price: Call Us |
| 16 |
43884 |
Pin, GC Locator Price: Call Us |
| 17 |
04041-11 |
Flatwasher, 3/8-.406 x 1.50 x 7 Ga. Price: Call Us |
| 18 |
04030-04 |
Lockwasher, 3/8” Spring, Kawasaki FX / FT & FT-EFI / B&S 32BV Price: Call Us |
| 19 |
04001-32 |
Bolt, Hex Head 3/8-16 x 1-1/4", Kawasaki FX / FT & FT-EFI Price: Call Us |
| 20 |
04001-46 |
Bolt, Hex Head 3/8-16 x 2-1/4" Price: Call Us |
| 21 |
43886 |
Spacer Price: Call Us |
| 22 |
426016 |
Angle Bracket, GC Price: Call Us |
| 23 |
04003-12 |
Bolt, Carriage 5/16-18 x 3/4" Price: Call Us |
| 24 |
423197 |
Tube, Bag Support Price: Call Us |
| 25 |
04040-15 |
Flatwasher, 5/16-.375 x .875 x .083 Price: Call Us |
| 26 |
04021-10 |
Nut, Elastic Stop 5/16-18 Price: Call Us |
| 27 |
04019-03 |
Nut, Serrated Flange 5/16-18 Price: Call Us |
| 28 |
04001-08 |
Bolt, Hex Head 5/16-18 x 3/4" Price: Call Us |
| 29 |
423198 |
Mount, Bag Frame Tube Price: Call Us |
| 30 |
04021-02 |
Lock Nut, 1/4-20 Center Lock Price: Call Us |
| 31 |
426024 |
Wear Plate, GC Price: Call Us |
