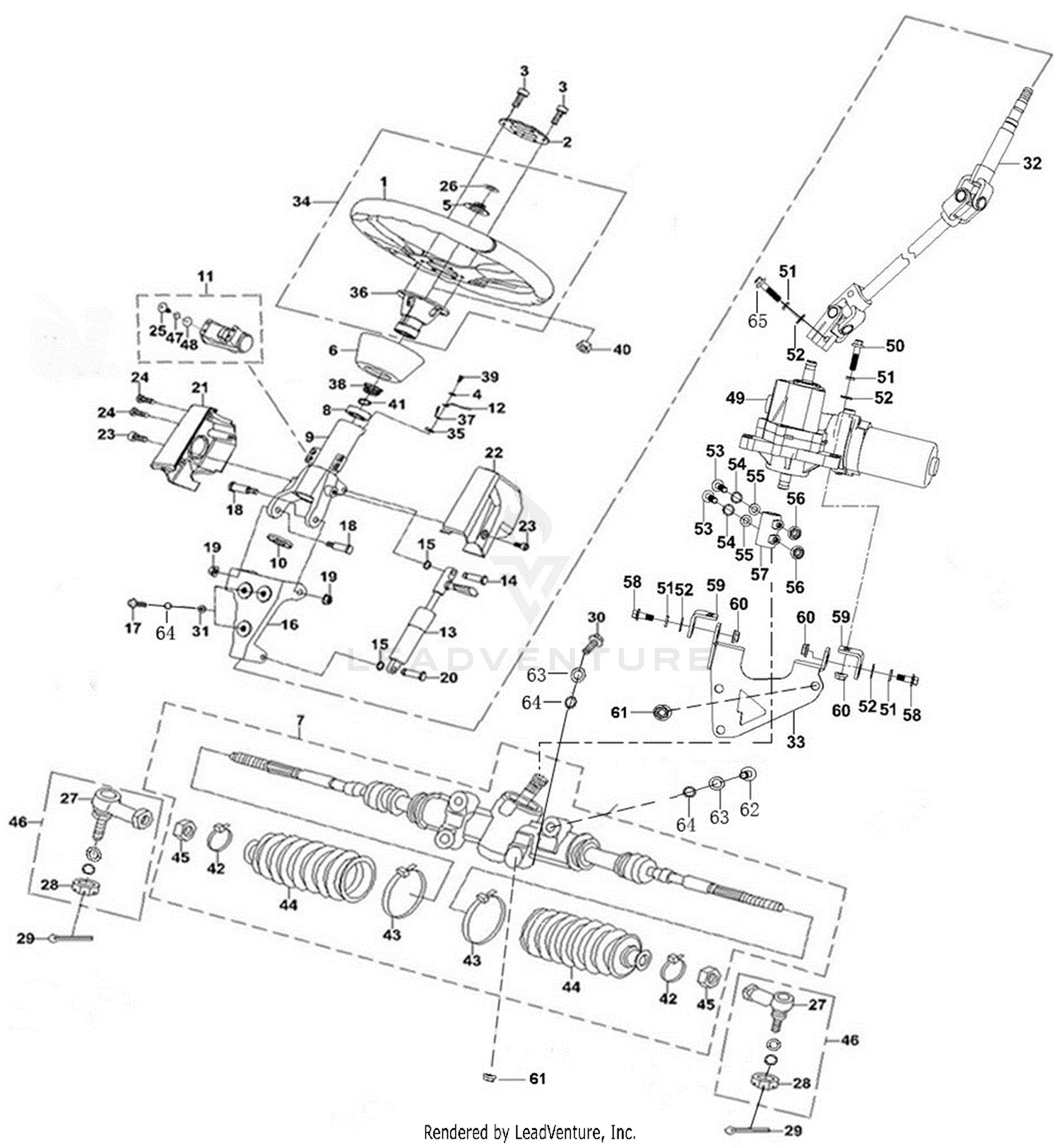

| Ref | Part Number | Description |
|---|
| 1 |
503-02077 |
STEERING WHEEL ASSEMBLY Price: $152.26 |
| 2 |
503-01576 |
STEERING WHEEL CAP Price: $7.40 |
| 3 |
503-00376 |
SOCKET HEXAGON SCREW M6X16 Price: $4.47 |
| 4 |
503-01577 |
WASHER - HORN Price: $4.06 |
| 5 |
503-01578A |
HORN SWITCH Price: $34.63 |
| 6 |
503-01579 |
STEERING POST COVER KIT Not Available Price: |
| 7 |
503-01580A |
STEERING ASSEMBLY Price: $269.67 |
| 8 |
503-01581 |
BEARING 6003-2RZ Not Available Price: |
| 9 |
503-01582 |
STEERING COLUMN COVER Price: $300.91 |
| 10 |
503-01583 |
BEARING 6805 Price: $7.96 |
| 11 |
503-03184 |
KEY SWITCH (MY19) Price: $131.36 |
| 12 |
503-01585 |
HORN GROUND WIRE Price: $10.80 |
| 13 |
503-01586B |
GAS SPRING WHEEL ASSEMBLY Price: $42.68 |
| 14 |
503-01587 |
SHOULDER COTTER PIN 8X34 Not Available Price: |
| 15 |
503-01342A |
CLIP Price: $4.06 |
| 16 |
503-01588 |
MOUNTING BRACKET Price: $150.02 |
| 17 |
503-00409 |
HEX FLANGE BOLT M10X1.25X20 Price: $5.36 |
| 18 |
503-01589 |
SHOULDER BOLT M6X10X2.5X30.5 Price: $5.35 |
| 19 |
503-01590 |
LOCK NUT M6 Price: $4.42 |
| 20 |
503-01591 |
SHOULDER COTTER PIN 8X45 Not Available Price: |
| 21 |
503-01592A |
STEERING COLUMN COVER III Price: $7.12 |
| 22 |
503-01593A |
STEERING COLUMN COVER II Price: $7.12 |
| 23 |
503-01594 |
HEX HEAD FLANGE BOLT M6X12 Price: $3.71 |
| 24 |
503-01595 |
SCREW - SELF TAPPING ST3.9X13 Price: $3.77 |
| 25 |
503-01985 |
PAN HEAD SCREW M5X16 Price: $3.19 |
| 26 |
503-01988 |
INSTRUMENT PANEL SEAL Not Available Price: |
| 28 |
503-00381 |
HEX THIN SLOTTED NUT M12X1.25 Not Available Price: |
| 29 |
503-01597 |
COTTER PIN 2X30 Price: $3.77 |
| 30 |
503-01598 |
HEX HEAD FLANGE BOLT M10X1.25-40 Price: $3.94 |
| 31 |
503-00999 |
WASHER 10X32X5 Price: $6.50 |
| 32 |
503-01596 |
SHAFT - WHEEL ASSEMBLY Price: $246.00 |
| 32 |
503-01875 |
EPS STEERING SHAFT Price: $201.22 |
| 33 |
503-01880A |
EPS MOUNTING BRACKET Price: $30.63 |
| 34 |
503-01599A |
STEERING WHEEL ASSEMBLY Price: $148.43 |
| 35 |
503-01600 |
HORN INSULATION WASHER Price: $4.06 |
| 36 |
503-01601 |
CONNECTING WHEEL FLANGE Not Available Price: |
| 37 |
503-01602 |
HORN REED SWITCH Price: $6.24 |
| 38 |
503-01603 |
SPRING HORN SWITCH Price: $8.83 |
| 39 |
503-02724 |
CROSS HEAD SCREW M4X10 Price: $0.30 |
| 40 |
503-01572 |
LOCK NUT M12X1.25 Price: $4.75 |
| 41 |
503-01605 |
CLIP Price: $8.52 |
| 42 |
503-00386 |
SPRING CLAMP Price: $12.55 |
| 43 |
503-00387 |
DIRT-PROOF BOOT CLAMP Price: $16.15 |
| 44 |
503-00388 |
DIRT-PROOF BOOT Price: $71.80 |
| 45 |
503-01606 |
NUT M14X1.5 Price: $4.09 |
| 46 |
503-01607P |
BALL JOINT ASSEMBLY Price: $45.11 |
| 47 |
503-01326 |
SPRING WASHER Price: $3.94 |
| 48 |
503-01987 |
FLAT PAD Price: $3.19 |
| 49 |
503-00902 |
ELECTRICAL POWER STEERING COMP Price: $1,461.31 |
| 50 |
503-00166 |
HEXAGON FLANGE BOLTS M8X35 Not Available Price: |
| 51 |
503-01411 |
WASHER 8 Price: $4.06 |
| 52 |
503-01197 |
SPRING WASHER Price: $4.59 |
| 53 |
503-02039 |
HEX FLANGE BOLT M8x40 Price: $1.11 |
| 54 |
503-01411 |
WASHER 8 Price: $4.06 |
| 55 |
503-01197 |
SPRING WASHER Price: $4.59 |
| 56 |
503-01371 |
NUT HEXAGON FLANGE HEAD M8 Price: $3.94 |
| 57 |
503-02061 |
EPS ADAPTER SLEEVE Price: $47.75 |
| 58 |
503-00042 |
HEXAGON FLANGE BOLT M8X20 Price: $6.38 |
| 59 |
503-01878 |
EPS MOUNTING BRACKET I Price: $4.07 |
| 60 |
503-01371 |
NUT HEXAGON FLANGE HEAD M8 Price: $3.94 |
| 61 |
503-01375 |
LOCK NUT M10X1.25 Price: $6.13 |
| 62 |
503-00044 |
HEX FLANGE BOLT M10X1.25X45 Not Available Price: |
| 63 |
503-01395 |
WASHER 10 Price: $3.94 |
| 64 |
503-00064 |
SPRING WASHER Price: $5.36 |
