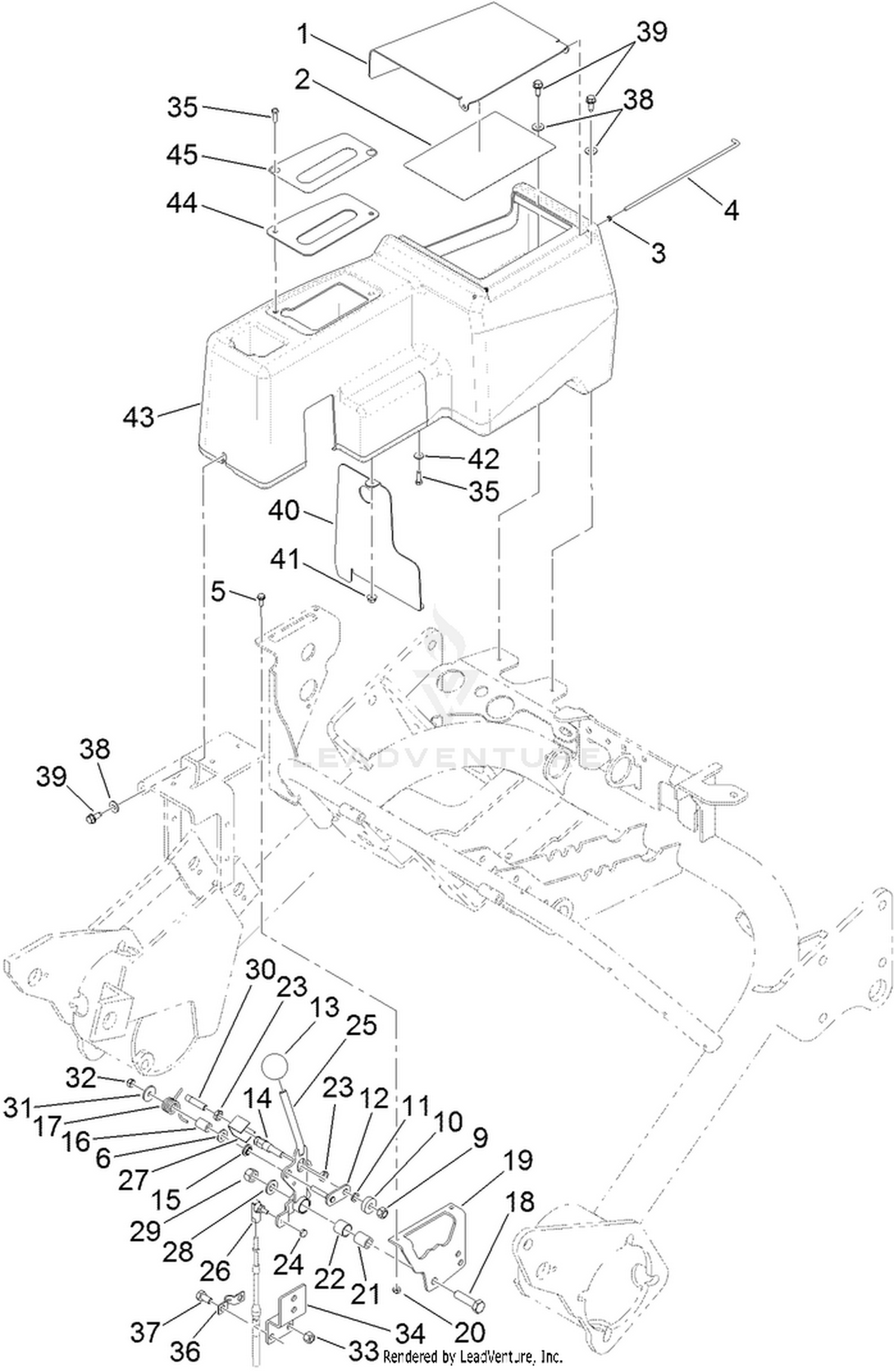

Speed Selector Lever and Console Assembly
Parts (42)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 105-8254-03 | LID-CONSOLE Price: $63.57 |
| 2 | 115-8156 | DECAL-SPEED, CLIP Price: $7.59 |
| 3 | 105-8283 | BUSHING Price: $1.70 |
| 4 | 105-8256 | ROD-HINGE Price: $17.77 |
| 5 | 3290-321 | SCREW-HWH Price: $3.99 |
| 6 | 3256-23 | WASHER-PLAIN Price: $0.28 |
| 9 | 33024-00 | NUT-LOCK, NI Price: $0.75 |
| 10 | 251-259 | BEARING-BALL Price: $13.67 |
| 11 | 75-5470 | SPACER-BEARING Price: $3.06 |
| 12 | 120-3198 | ROLLER-PIVOT Price: $9.78 |
| 13 | 233-42 | KNOB Price: $12.88 |
| 14 | 94-9617 | PIN-SPRING Price: $9.91 |
| 15 | 94-9619 | BUSHING Price: $17.13 |
| 16 | 94-9618 | SPACER-SPRING Price: $9.85 |
| 17 | 94-9620 | SPRING-TORSION Price: $20.28 |
| 18 | 33115-040 | SCREW-HH Price: $1.22 |
| 19 | 94-6398 | BRACKET-TRACTION Price: $31.52 |
| 20 | 3296-12 | NUT-LOCK, NI Price: $1.29 |
| 21 | 94-1378 | TUBE-PIVOT, HANDLE Price: $9.66 |
| 22 | 256-311 | BUSHING-SPLIT Price: $13.37 |
| 23 | 117-4059 | NUT-HEX Price: $1.84 |
| 24 | 3296-27 | NUT-LOCK, NI Price: $0.27 |
| 25 | 94-9611 | HANDLE Price: $151.08 |
| 26 | 2411-38 | JOINT-BALL Price: $21.96 |
| 27 | 106-6356 | SHIELD-SWITCH Price: $12.11 |
| 28 | 3256-24 | WASHER-FLAT Price: $0.28 |
| 29 | 33025-00 | NUT-LOCK, NI Price: $0.54 |
| 30 | 120-5348 | ACTUATOR-SWITCH Price: $50.78 |
| 31 | 3256-67 | WASHER Price: $0.49 |
| 32 | 33023-00 | NUT-LOCK Price: $0.25 |
| 33 | 3296-29 | NUT-LOCK, NI Price: $2.09 |
| 34 | 105-5417-03 | BRACKET-CABLE, SHIFTER Price: $21.91 |
| 35 | 3290-134 | SCREW Price: $0.27 |
| 36 | 93-2279 | CLAMP-CABLE Price: $7.12 |
| 37 | 322-2 | SCREW-HH Price: $0.69 |
| 38 | 3256-22 | WASHER-FLAT Price: $0.39 |
| 39 | 32144-10 | SCREW-HWH Price: $4.29 |
| 40 | 105-8255-03 | BAFFLE-CONSOLE Price: $33.59 |
| 41 | 3290-148 | NUT-HF Price: $0.25 |
| 42 | 3256-77 | WASHER-FLAT Price: $1.60 |
| 43 | 105-8250 | CONSOLE Price: $213.37 |
| 44 | 105-8280-03 | PLATE-CONSOLE Price: $9.63 |
