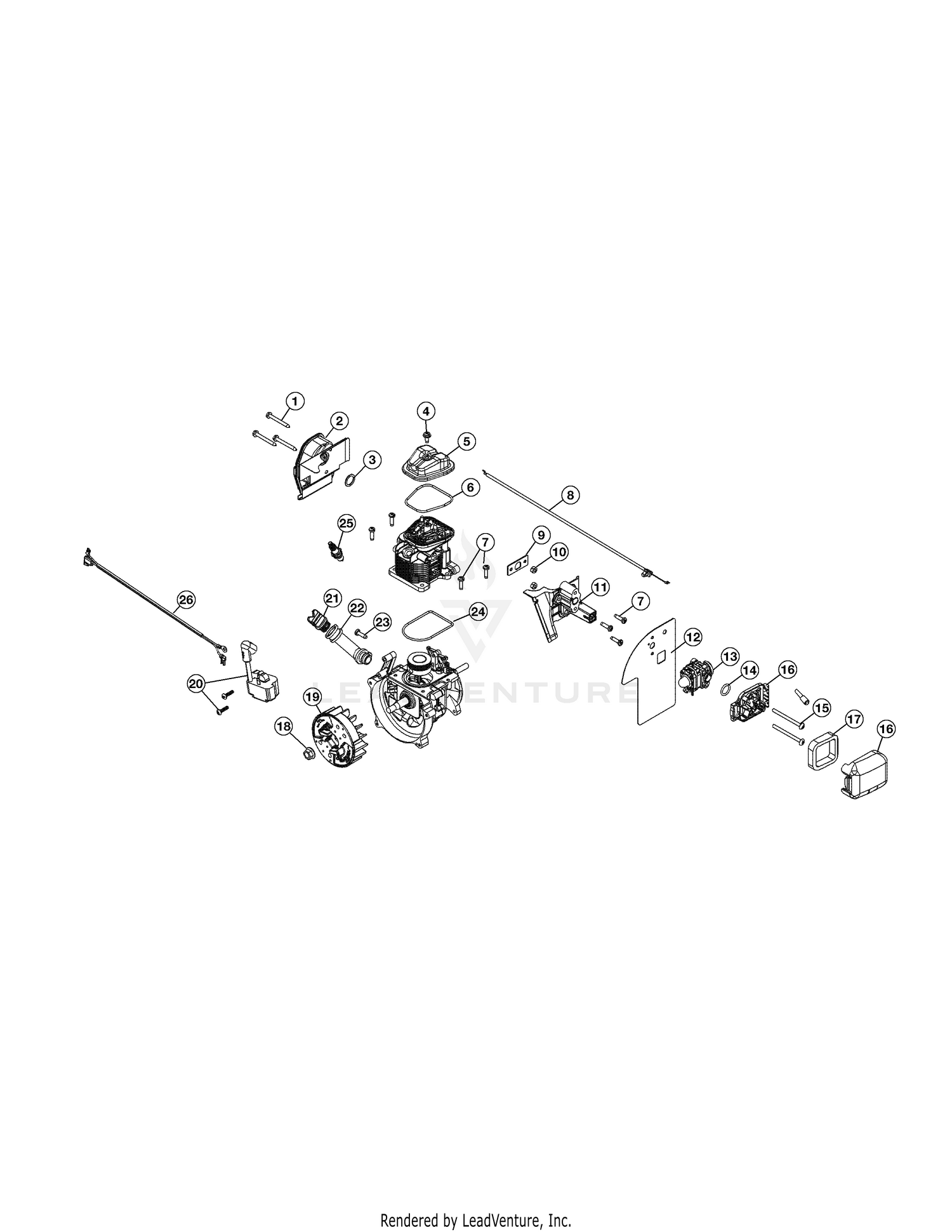

| Ref | Part Number | Description |
|---|
| 1 |
710-04809 |
SCREW M5 x 44MM This part replaces 710-04487. Price: $2.83 |
| 2 |
753-05900 |
MUFFLER ASSEMBLY Not Available Price: |
| 3 |
753-05244 |
Muffler Gasket Price: $5.11 |
| 4 |
791-181025 |
Screw Price: $2.44 |
| 5 |
753-05901 |
Rocker Cover Price: $7.13 |
| 6 |
753-05902 |
O-Ring Price: $4.58 |
| 7 |
9052-1 |
SCREW, M5 X18 This part replaces 791-181003. Price: $3.78 |
| 8 |
753-05903 |
Throttle Cable Price: $14.42 |
| 9 |
753-05673 |
Insulator Gasket Price: $9.07 |
| 10 |
712-04099 |
Nut Price: $5.94 |
| 11 |
753-05904 |
Insulator Price: $7.25 |
| 12 |
753-05905 |
Carburetor Gasket Price: $8.93 |
| 13 |
753-05908 |
CARB AC5 Not Available Price: |
| 14 |
791-181751 |
Carburetor O-Ring Price: $3.92 |
| 15 |
710-04517 |
Screw Price: $4.71 |
| 16 |
753-04223 |
Air Cleaner Assembly (Incl. Ref No. 17) Not Available Price: |
| 17 |
791-181757 |
Air Filter Price: $3.59 |
| 18 |
712-04137 |
Nut Price: $6.07 |
| 19 |
753-05906 |
FLYWHEEL ASSEMBLY Not Available Price: |
| 20 |
753-05907 |
Module Price: $45.78 |
| 21 |
753-05408 |
Oil Plug (Incl. 5) This part replaces 753-05400. Price: $25.95 |
| 22 |
753-05909 |
Oil Fill Tube Price: $8.36 |
| 23 |
710-04604A |
SCREW M5X0.8 This part replaces 710-04604. Price: $3.63 |
| 24 |
753-05910 |
O-Ring Price: $2.65 |
| 25 |
794-00082 |
Spark Plug This part replaces 794-00043. Price: $6.35 |
| 26 |
753-05911 |
Lead Wire Price: $5.20 |
