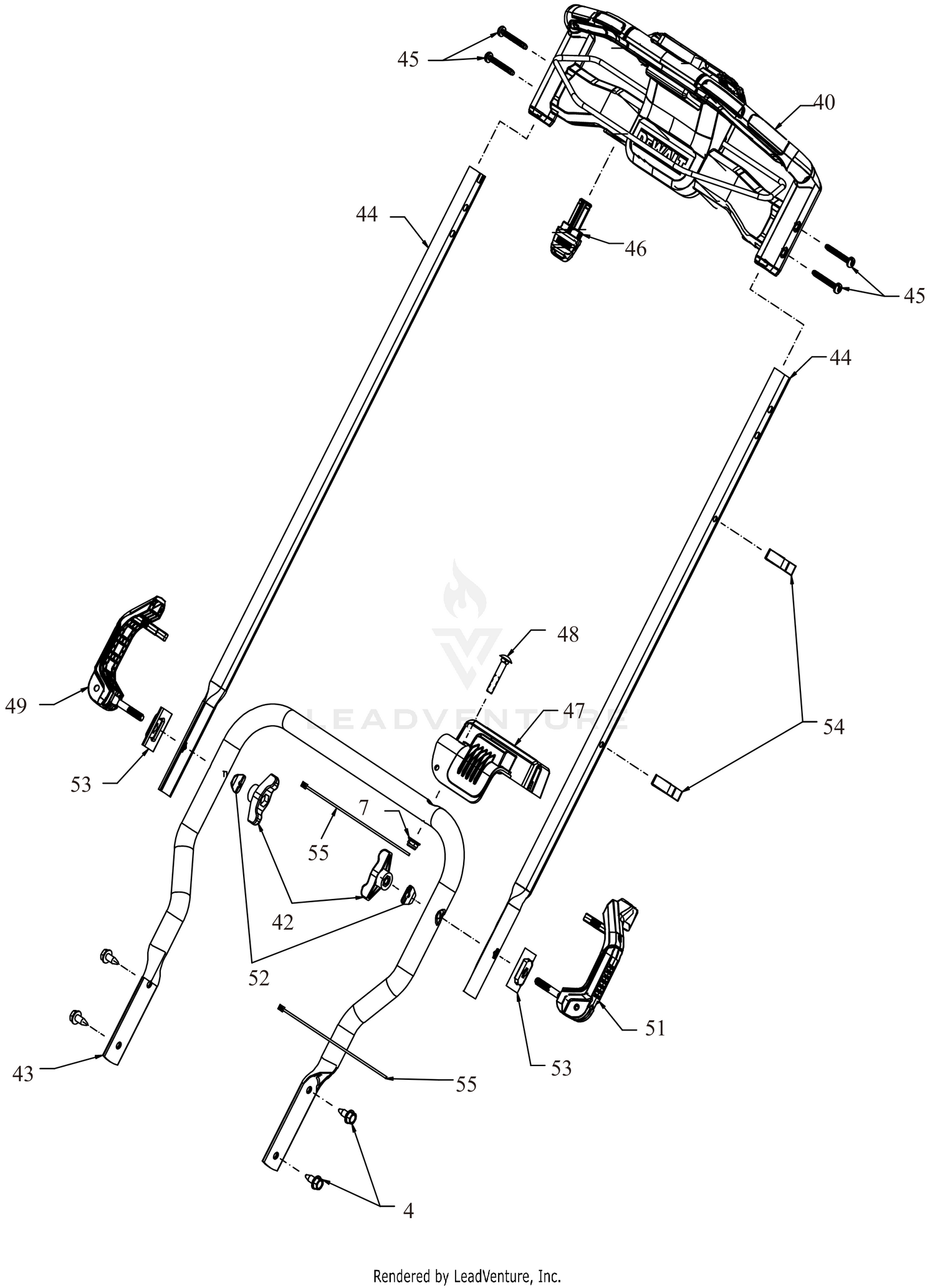

Handle Assembly
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 7 | 712-04063 | FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 40 | NA485094 | HANDLE PANEL Price: $213.07 |
| 42 | 720-05984 | WING KNOB 5/16-18 Price: $1.70 |
| 43 | 749-09424 | HANDLE (LOWER) Price: $16.51 |
| 44 | 749-09489 | HANDLE (UPPER) Price: $10.81 |
| 45 | BD-330045-29 | SCREW M6X45-T30-THD FRM Price: $0.56 |
| 46 | BD-NA262050 | KEY Price: $0.56 |
| 47 | 330019-02 | SCREW Price: $0.10 |
| 47 | NA485095 | BRACKET Price: $48.98 |
| 48 | 710-0458 | CARRIAGE BOLT 5/16-18 x 1.75 Price: $3.72 |
| 49 | 330019-02 | SCREW Price: $0.10 |
| 49 | NA394533 | HANDLE CAMLOCK (RH) Price: $21.07 |
| 51 | 330019-02 | SCREW Price: $0.10 |
| 51 | NA394551 | HANDLE CAMLOCK (LH) Price: $21.07 |
| 52 | 736-0451 | SADDLE WASHER Price: $3.75 |
| 52 | BD-394429-02 | CABLE TIE 2.5X195 Price: $0.56 |
| 53 | 790-04079 | HANDLE TAB Price: $1.12 |
| 54 | 731-27928 | CABLE CLIP Price: $1.12 |
