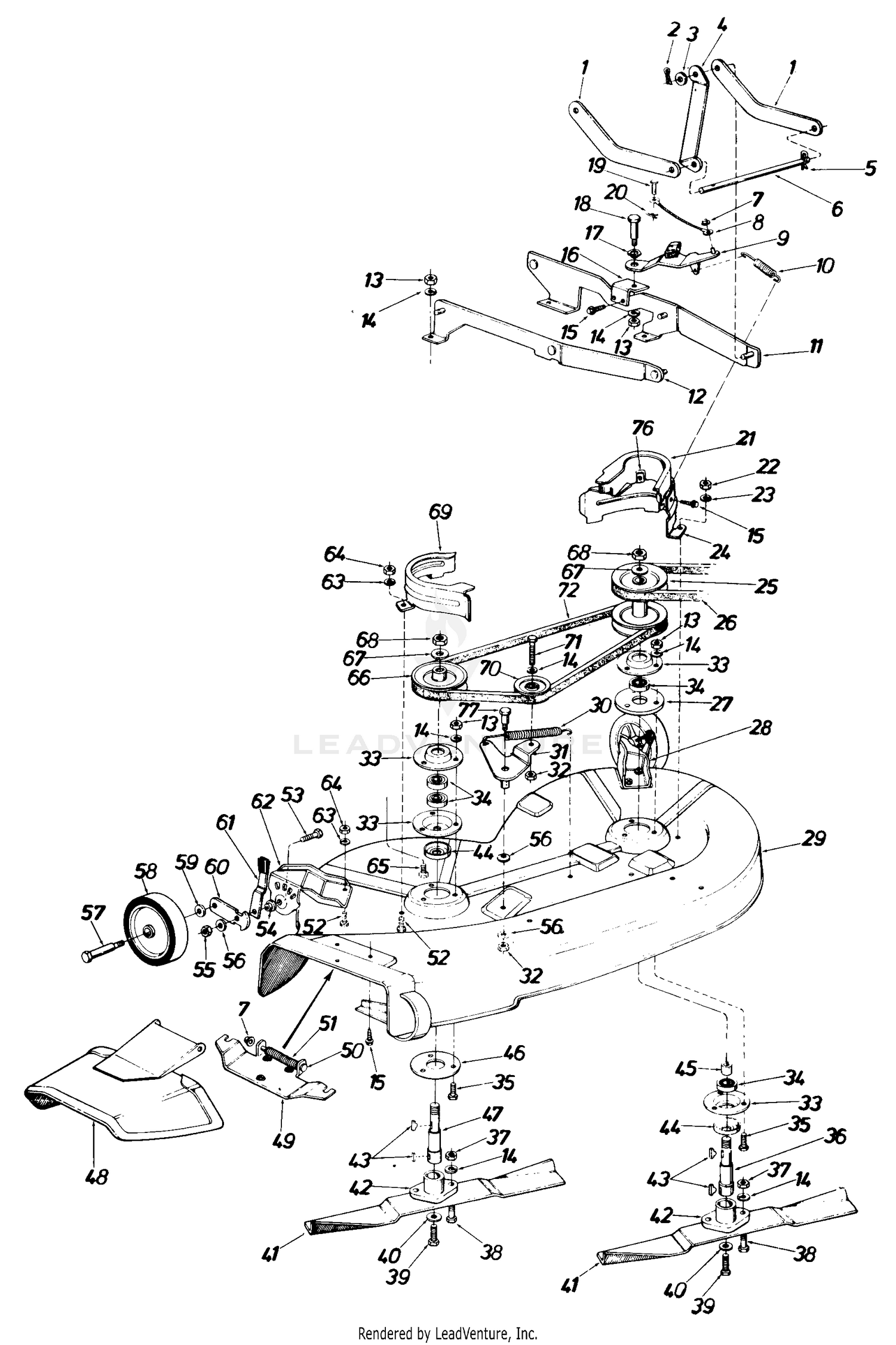

| Ref | Part Number | Description |
|---|
| 1 |
13866 |
DECK STABI I IZER Not Available Price: |
| 2 |
714-0111 |
Cotter Pin 3/32" Dia. x 1.00" Lg. Price: $4.20 |
| 3 |
736-0192 |
Fl-Wash. 50" I.D. x 1.00" O.D. x .090 Thk. Price: $3.75 |
| 4 |
13867 |
DIAGONAL BRACE Not Available Price: |
| 5 |
714-0149B |
Inter. Cotter Pin This part replaces 714-0149. Price: $3.95 |
| 6 |
738-0392 |
CONNECTING ROD Not Available Price: |
| 7 |
726-0106 |
PUSH NUT This part replaces 7260106. Price: $3.37 |
| 8 |
946-0237 |
BRAKE CABLE Not Available This part replaces 746-0237. Price: |
| 9 |
13908 |
Spindle Brake Arm Ass'y. Price: Call Us |
| 10 |
HG-50384 |
EXTENSION SPRING Not Available This part replaces 732-0250. Price: |
| 11 |
14091 |
Hanger Brkt. Ass'y.-L.H. Side Price: Call Us |
| 12 |
14092 |
Hanger Brkt. Ass'y. - R.H. Side Price: Call Us |
| 13 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 14 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 15 |
710-0599 |
Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg. Price: $3.86 |
| 16 |
14096 |
Spindle Brake Pivot Brkt. Price: Call Us |
| 17 |
936-0141 |
Spr. Wash. 7/16" I.D. This part replaces 736-0141. Price: $6.01 |
| 18 |
938-0155 |
Shoulder Bolt This part replaces 738-0155. Price: $6.01 |
| 19 |
911-0701 |
Clevis Pin 1/4" Dia. x .53" Lg. This part replaces 711-0701. Price: $5.99 |
| 20 |
714-0100 |
Hairpin Cotter 1/4" Dia. Price: Call Us |
| 21 |
14090 |
Upper Belt Guard-L.H. Side Price: Call Us |
| 22 |
912-0287 |
HEX NUT 1/4-20 Not Available This part replaces 7120287. Price: |
| 23 |
936-0329 |
L-Wash. 1/4" I.D. This part replaces 736-0329. Price: $3.90 |
| 24 |
14089 |
Lower Belt Guard-L.H. Side Price: Call Us |
| 25 |
756-0346 |
PULLEY Not Available Price: |
| 26 |
954-0251 |
V-BELT 1/2 x 51 Not Available This part replaces 754-0251. Price: |
| 27 |
14088B-0637 |
Spindle Spacer Plate This part replaces 14088. Price: $25.69 |
| 28 |
09082 |
BRACKET-WH Not Available Price: |
| 30 |
932-0121 |
Extension Spring .73" O.D. x 4.31 0 Lg. This part replaces 732-0121. Price: $13.21 |
| 31 |
14768 |
Deck Idler Brkt. Ass'y. Price: Call Us |
| 32 |
712-0375 |
Hex Cent. L-Nut 3/8-16 Thd. Price: $4.02 |
| 33 |
08253B |
Bearing Housing This part replaces 08253. Price: $17.97 |
| 34 |
741P0919B |
BALL BEARING This part replaces 741-0919. Price: $18.90 |
| 35 |
710-0322 |
HEX BOLT 5/16-18 x 1 LG.* Not Available Price: |
| 36 |
738-0466 |
BLADE SPINDLE Not Available Price: |
| 37 |
912-3057 |
Hex Nut 5/16-24 Thd. This part replaces 712-0123. Price: $5.94 |
| 39 |
710-0459A |
Hex Cap Screw 3/8-24 x 1.5 This part replaces 710-0459. Price: $6.50 |
| 40 |
736-0217 |
L-Wash. 3/8" I.D. Heavy Duty Price: $3.86 |
| 41 |
742-0122 |
BLADE 19" Not Available Price: |
| 42 |
10769 |
BLADE ADAP Not Available Price: |
| 44 |
13703 |
SHIELD-BRG Not Available Price: |
| 45 |
950-0142 |
SPACER Not Available This part replaces 750-0142. Price: |
| 46 |
09164A-0637 |
Plate Deck Reinforcement Not Available This part replaces 09164. Price: |
| 47 |
911-0255 |
BLADE SPINDLE Not Available This part replaces 711-0255. Price: |
| 48 |
11574 |
Chute Cover Ass'y. Price: Call Us |
| 49 |
11396 |
ADAPTER Not Available Price: |
| 50 |
711-0570 |
ENGINE FERRULE Not Available Price: |
| 51 |
732-0261 |
TORSION SPRING Not Available Price: |
| 52 |
910-0289 |
Hex Bolt 1/4-20 x .50" Lg. This part replaces 710-0289. Price: $3.15 |
| 53 |
710-3005 |
Hex Bolt 3/8-16 x 1.25" Lg. This part replaces 710-0342. Price: $3.61 |
| 54 |
748-0279 |
SHOULDER SPACER Not Available Price: |
| 55 |
712-0181 |
Hex Jam L-Nut 3/8-16 Thd. Price: $3.90 |
| 56 |
936-0219 |
Bell-Wash. .400" I.D. x 1.13" O.D. This part replaces 736-0219. Price: $3.86 |
| 57 |
938-0373 |
Shld. Bolt .498" Dia. x 1.53" This part replaces 738-0373. Price: $8.45 |
| 58 |
734-06265 |
DECK WHEEL (5.0 DIA X 1.38) This part replaces 734-0973. Price: $11.69 |
| 59 |
736-0105 |
Belleville Wash. .400" I.D. x .88" O.D. x .060 Price: $3.96 |
| 60 |
10937 |
BAR-WHEEL PIVOT Not Available Price: |
| 61 |
14082 |
LEVER ASSEMBLY-SPRING Not Available Price: |
| 62 |
09080 |
BRACKET-WH Not Available Price: |
| 63 |
936-0329 |
L-Wash. 1/4" I.D. This part replaces 736-0329. Price: $3.90 |
| 64 |
912-0287 |
HEX NUT 1/4-20 Not Available This part replaces 7120287. Price: |
| 65 |
710-0473 |
Mach. Screw: #10-24 X 0.5" This part replaces 710-0399. Price: $3.90 |
| 67 |
736-0158 |
L-Wash. 5/8" I.D.* Price: $3.90 |
| 68 |
712-3015 |
HEX NUT This part replaces 7120242. Price: $4.02 |
| 69 |
14095 |
Belt Guard R.H. Side Price: Call Us |
| 70 |
756-0487 |
Idler Pulley This part replaces 756-0293. Price: $45.43 |
| 71 |
710-3005 |
Hex Bolt 3/8-16 x 1.25" Lg. This part replaces 710-0342. Price: $3.61 |
| 72 |
954-0250 |
V-BELT 1/2 x 53 Not Available This part replaces 754-0250. Price: |
| 76 |
726-0292 |
Speed Nut 1/4-2 Thd. Price: Call Us |
