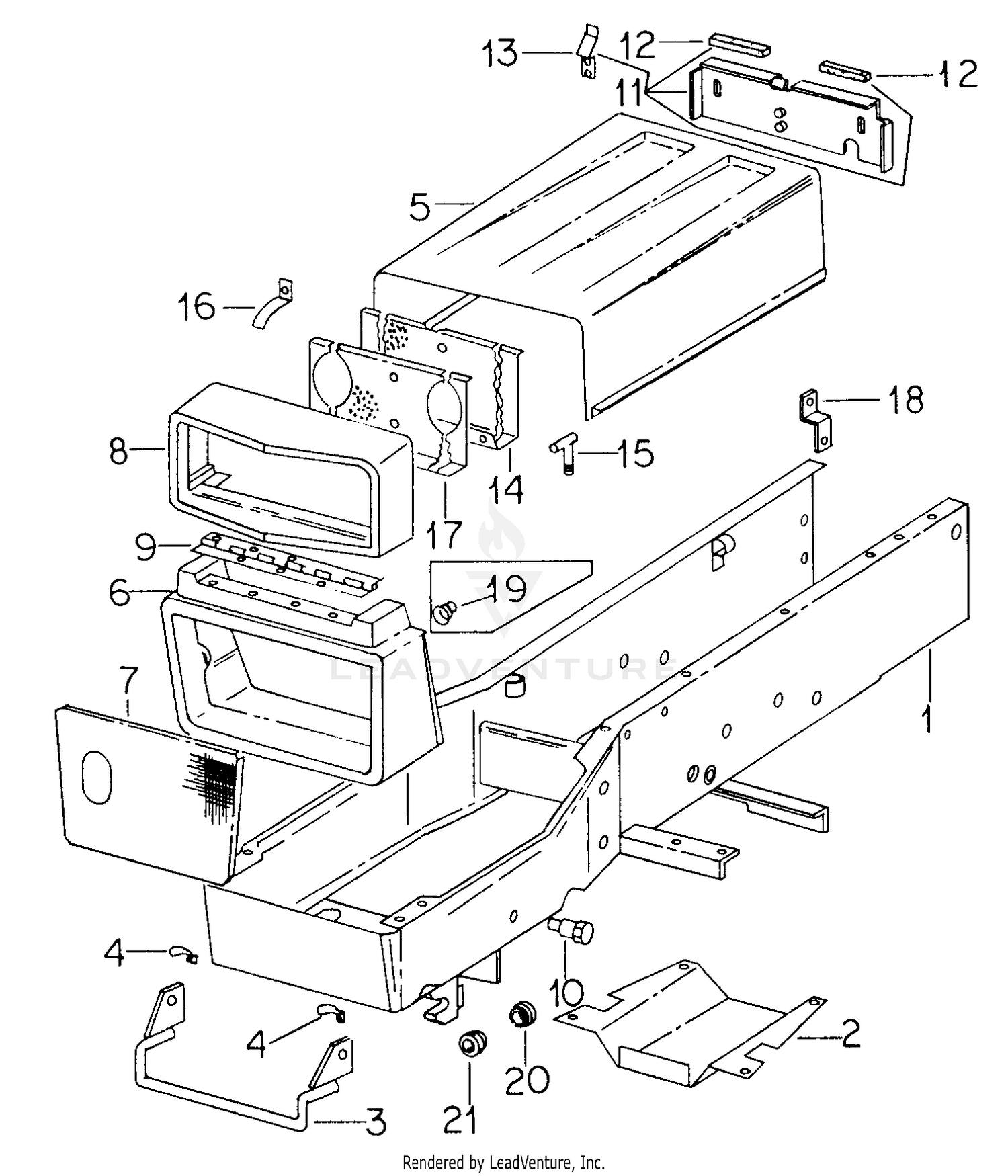

Frame Ad Grille
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | None | Frame Assy |
| 2 | IH-61504-C1 | SHIELD, FRAME LOWER Not Available Price: |
| 3 | IH-544170-R1 | HITCH Not Available Price: |
| 4 | IH-402344-R3 | SPRING Not Available Price: |
| 5 | IH-61515-C1 | HOOD ASSY Not Available Price: |
| 6 | None | Housing, Grille |
| 8 | IH-61294-C1 | GRILLE, HOOD EXTENSION Not Available Price: |
| 9 | IH-106254-C1 | HINGE, HOOD Not Available Price: |
| 10 | 738-3001 | BOLT-SHOUL Not Available Price: |
| 11 | IH-64533-C3 | SUPPORT Not Available Price: |
| 13 | IH-61523-C2 | LATCH-SPRING Not Available Price: |
| 14 | IH-61418-C1 | PANEL Not Available Price: |
| 15 | IH-545522-R2 | BOLT Not Available This part replaces IH-545522-R1. Price: |
| 16 | IH-106617-C2 | CLIP Not Available Price: |
| 17 | None | Not used in this application |
| 18 | 703-0168 | BRACKET-TRANS MTG Not Available Price: |
| 19 | IH-391347-R2 | Spring, Hold Down Price: $14.11 |
| 20 | 711-3005 | AXLE PIVOT BUSHING Not Available Price: |
