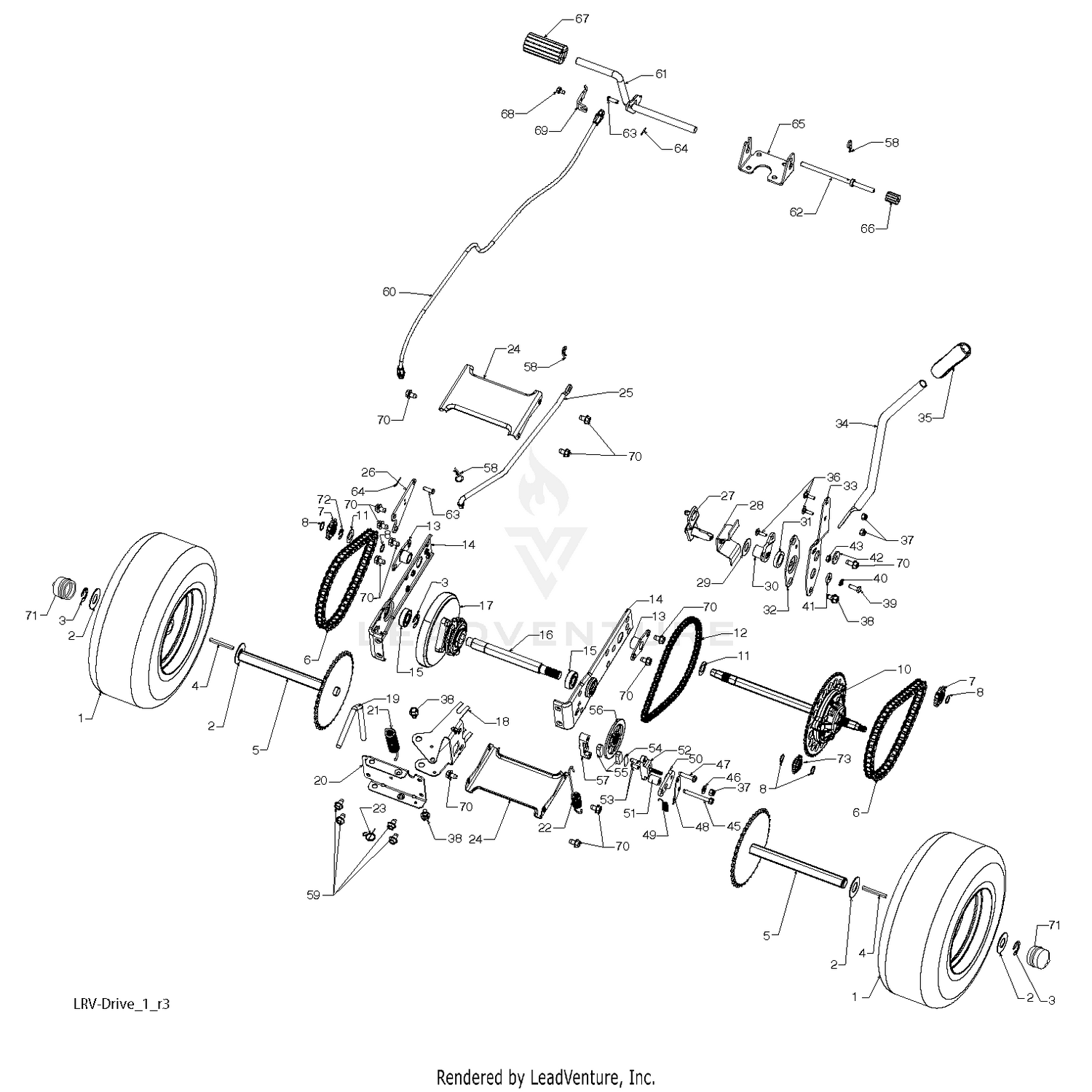

| Ref | Part Number | Description |
|---|
| 1 |
532436498 |
WHEEL ASM (REAR) Price: $66.99 |
| 2 |
532121748 |
WASHER, 16 GA. Price: $1.99 |
| 3 |
812000001 |
E-CLIP Price: $2.99 |
| 4 |
532123583 |
KEY. SQUARE Price: $2.69 |
| 5 |
532427939 |
WELDMENT. DRIVE AXLE Price: $34.99 |
| 6 |
532428069 |
CHAIN DRIVE Price: $12.99 |
| 7 |
532427873 |
SPROCKET. 9 TOOTH SPLINED Price: $5.99 |
| 8 |
812100009 |
RING, SNAP Price: $2.99 |
| 10 |
532436144 |
SERVICE, TRANSAXLE This part replaces 532428876. Price: $381.99 |
| 11 |
532001370 |
WASHER, THRUST Price: $2.99 |
| 12 |
532430645 |
CHAIN, PRIMARY DRIVE Price: $12.99 |
| 13 |
532430845 |
BUSHING Price: $5.99 |
| 14 |
532438568 |
BRACKET.CARRIER This part replaces 532427946. Price: $7.99 |
| 15 |
532124793 |
BEARING ASM Price: $11.99 |
| 16 |
532427926 |
SHAFT INPUT Price: $26.99 |
| 17 |
532436144 |
SERVICE, TRANSAXLE This part replaces 532428106. Price: $381.99 |
| 18 |
532424759 |
ARM, SHIFT Price: $8.99 |
| 19 |
532430870 |
ROD, BYPASS Price: $11.99 |
| 20 |
532427997 |
BRACE CARRIER REAR Price: $5.99 |
| 21 |
532428077 |
SPRING, CARRIER Price: $4.99 |
| 22 |
532428076 |
SPRING, BRAKE Price: $2.99 |
| 23 |
532431374 |
SPRING, BYPASS Price: $2.99 |
| 24 |
532427995 |
BRACE CARRIER BOX Price: $6.99 |
| 25 |
532428303 |
LINK, SHIFT Price: $5.99 |
| 26 |
532429816 |
ARM. CLUTCH Price: $3.99 |
| 27 |
532429053 |
WELDMENT SHIFT LEVER Price: $12.99 |
| 28 |
532428302 |
SUPPORT, SHIFT LEVER Price: $2.99 |
| 29 |
532174840 |
WASHER, NYLON Price: $3.99 |
| 30 |
532444304 |
HUB.SHIFT This part replaces 532183900. Price: $4.99 |
| 31 |
532429055 |
SPACER, NYLON Price: $2.99 |
| 32 |
532428464 |
MNTG BRKT. SHIFT ARM Price: $2.99 |
| 33 |
532428461 |
BRACKET, SHIFTER FLEX Price: $11.99 |
| 34 |
532428462 |
TUBE SHIFT ARM Price: $11.99 |
| 35 |
532411555 |
GRIP.HANDLE.LIFT.PVC.BLACK This part replaces 532196492. Price: $2.99 |
| 36 |
872110406 |
BOLT, CARRIAGE - 114-20 X 3/4 Price: $4.99 |
| 37 |
539976978 |
NUT.1/4C.NYLOC This part replaces 873800400. Price: $1.49 |
| 38 |
532165492 |
BOLT, SHOULDER Price: $3.99 |
| 39 |
874780416 |
Bolt Hex Fin 1/4-20 unc x 1 Gr. 5 This part replaces 874780412. Price: $3.99 |
| 40 |
810040400 |
WASHER, LOCK Price: $3.99 |
| 41 |
734115201 |
WASHER - M6 This part replaces 819091210. Price: $1.99 |
| 42 |
532166002 |
WASHER, SERRATED Price: $3.99 |
| 43 |
873680400 |
NUT, CROWN LOCK 114-20 Price: $2.69 |
| 45 |
817490436 |
SCREW 1/4-20 X 2 114 Price: $2.99 |
| 46 |
819091016 |
WASHER Price: $2.99 |
| 47 |
817490420 |
SCREW, 1/4-20 X 1 1/2 Price: $2.99 |
| 48 |
532430249 |
PLATE BRAKE ANTI - ROTATE Price: $2.99 |
| 49 |
532430245 |
SPRING, BRAKE RETURN Price: $2.99 |
| 50 |
532428021 |
ARM, BRAKE Price: $4.99 |
| 51 |
532430247 |
SPACER RETURN Price: $2.99 |
| 52 |
532428078 |
CALIPER, BRAKE ASM Price: $6.99 |
| 53 |
877010810 |
PIN, DOWEL 1/4 Price: $2.99 |
| 54 |
532428019 |
PLATE, BRAKE PAD Price: $2.99 |
| 55 |
532428017 |
PUCK BRAKE Price: $2.99 |
| 56 |
532435253 |
ROTOR, BRAKE Price: $5.99 |
| 57 |
532428016 |
CAP, BRAKE CALIPER Price: $3.99 |
| 58 |
532004497 |
RETAINER M This part replaces 532124788. Price: $5.99 |
| 59 |
817490508 |
Screw, Hex Washer Head Threaded, Rolling 5/16-18 x 1/2 Price: $3.99 |
| 60 |
532440855 |
CABLE.BRAKE. This part replaces 532428460. Price: $45.99 |
| 61 |
532427945 |
WELDMENT, PEDAL Price: $7.99 |
| 62 |
532429678 |
ROD, PARKING BRAKE Price: $5.99 |
| 63 |
877100812 |
PIN, .25 X .75 CLEVIS Price: $2.99 |
| 64 |
876020208 |
PIN, 1/16 DIA. COTTER Price: $7.99 |
| 65 |
532429325 |
BRACKET, BRAKE SUPPORT Price: $5.99 |
| 66 |
532429694 |
COVER PEDAL Price: $3.99 |
| 67 |
532429693 |
COVER, BRAKE PEDAL Price: $4.99 |
| 68 |
817490406 |
SCREW, 1/4-20 X 3/8 Price: $2.99 |
| 69 |
532428070 |
BRAKE CABLE MOUNT Price: $2.99 |
| 70 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $2.49 |
| 71 |
532436499 |
CAP HUB AXLE Price: $3.99 |
| 72 |
812000002 |
E RING #5133-62 Price: $3.99 |
| 532436144 |
SERVICE, |
TRANSAXLE Price: $381.99 532436144 |
