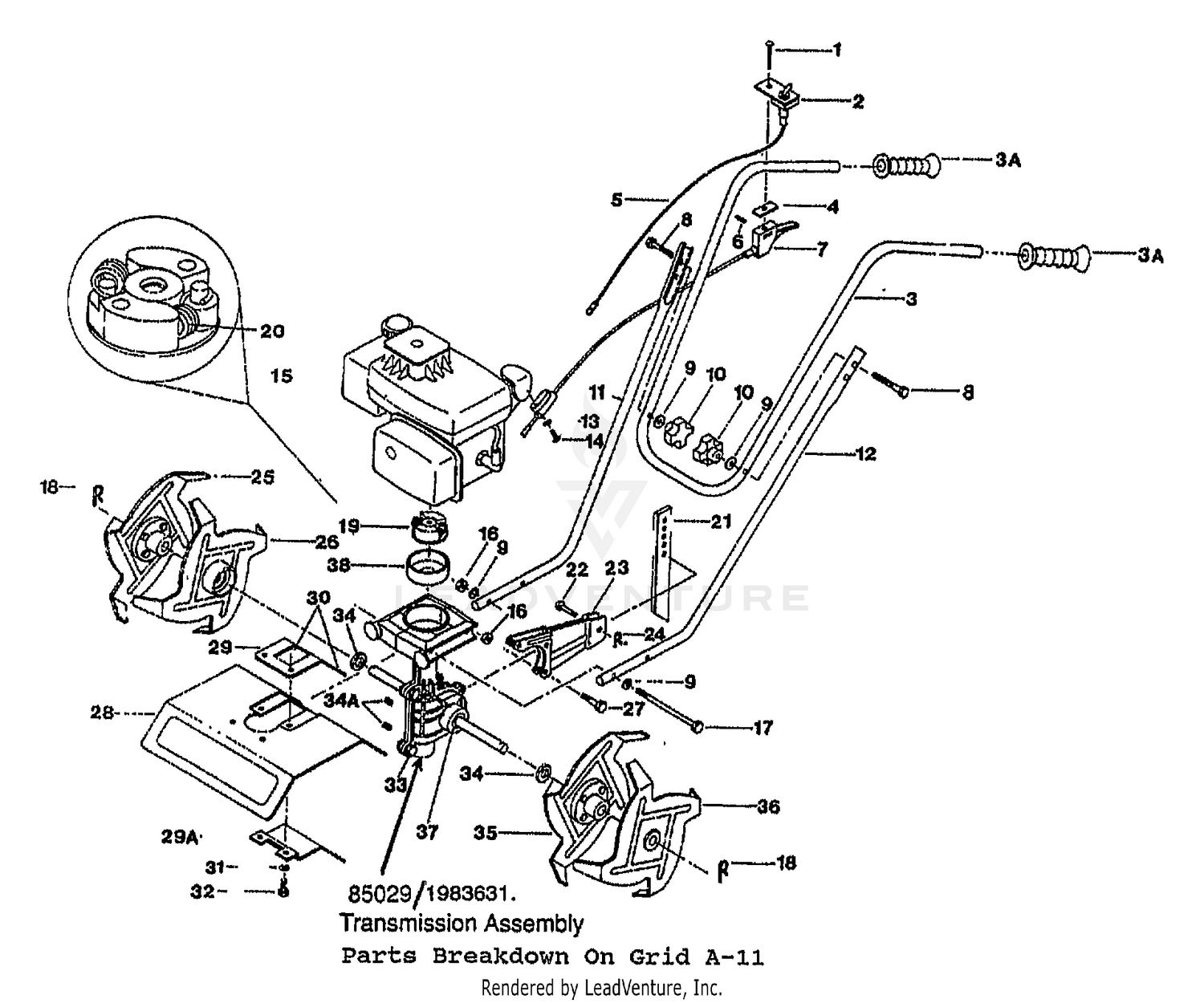

| Ref | Part Number | Description |
|---|
| 2 |
1981012001 |
SWITCH BRACKET AS/850 Not Available Price: |
| 2 |
1983718 |
IGN. SWITCH 96 Not Available Price: |
| 3 |
1981046 |
UPPER HANDLE ASSEMBLY Not Available Price: |
| 3A |
1983728 |
GRIP 97 Not Available Price: |
| 4 |
1983649 |
PAD-ISOLAT Not Available Price: |
| 5 |
1766998 |
HARNESS-WI Not Available Price: |
| 6 |
712-0127 |
FLAT WELD NUT Not Available This part replaces 1185490. Price: |
| 7 |
1984508 |
CABLE-THROTTLE MINITILLER Price: Call Us |
| 8 |
710-1174 |
SCREW 5/16-18 x 2.0 This part replaces 1983659. Price: $6.28 |
| 9 |
736-0275 |
FLAT WASHER This part replaces 1107382. Price: $5.99 |
| 10 |
1983729 |
KNOB Not Available Price: |
| 11 |
1984509001 |
H/BAR-LOWE Not Available Price: |
| 12 |
1984510001 |
HANDLE LOWER LEFT Not Available Price: |
| 18 |
1185590 |
PIN-HITCH .149DIA Price: $4.26 |
| 19 |
1984515 |
KIT-ROTOR ASSM Price: Call Us |
| 20 |
1984513 |
KIT-ROTOR ASSM Price: Call Us |
| 21 |
1981014001 |
DRAG STAKE Not Available Price: |
| 22 |
1983723 |
CLEVIS PIN Not Available Price: |
| 23 |
1981010001 |
DRAG STAKE Not Available Price: |
| 24 |
714-0145 |
Click Pin This part replaces 1703011. Price: $4.42 |
| 25 |
1984430 |
TINE ASSEMBLY (RH) OUTER Not Available Price: |
| 26 |
1984429 |
ASSM-TINE INNER RH Price: Call Us |
| 28 |
1985791 |
HOOD W/DECAL 85056 SPEEDYHOE Not Available Price: |
| 29 |
1981022010 |
PLATE REAR Not Available Price: |
| 29A |
1981018010 |
SHIELD-ROCK PNT Not Available Price: |
| 30 |
1983662 |
SCR M10-32 Not Available Price: |
| 31 |
936-0329 |
Lock Washer This part replaces 1100241. Price: $3.90 |
| 32 |
1100807 |
SCR-HH 1/4 Not Available Price: |
| 33 |
710-0206 |
Hex Screw, 1/4-20 x 7/8 This part replaces 1111600. Price: $3.94 |
| 34 |
1983713 |
WASHER-FELT 1.5X.72X.13 Price: $4.53 |
| 34A |
1983052 |
SCREW-HXSK Not Available Price: |
| 35 |
1984427 |
ASSM-TINE INNER LH Price: Call Us |
| 36 |
1984428 |
ASSM-TINE OUTER LH Price: Call Us |
| 37 |
1904183 |
KIT-DUST CAP Not Available This part replaces 1983622. Price: |
| 37 |
1983052 |
SCREW-HXSK Not Available Price: |
| 38 |
1984514 |
CLUTCH-DRUM & HUB Not Available Price: |
| 1982393 |
KIT-TINE |
REPLACE 85059 (INCL. 25,26,35,36, TWO 18, TWO 34) Price: Call Us 1982393 |
| 1983094 |
DECAL-CAUTION |
Not Available Price: 1983094 |
| 1983095 |
DECAL-WARNING |
Not Available Price: 1983095 |
| 1983096 |
DECAL-THROTTLE |
HHT Not Available Price: 1983096 |
| 1983097 |
DECAL-ENGINE |
ON/OF Not Available Price: 1983097 |
| 1983224 |
DECAL-LAZYBOY |
PT/13001/00 Price: Call Us 1983224 |
| 1983647 |
CUP-MEASUR |
Not Available Price: 1983647 |
| 1984515 |
KIT-ROTOR |
ASSM Price: Call Us 1984515 |
