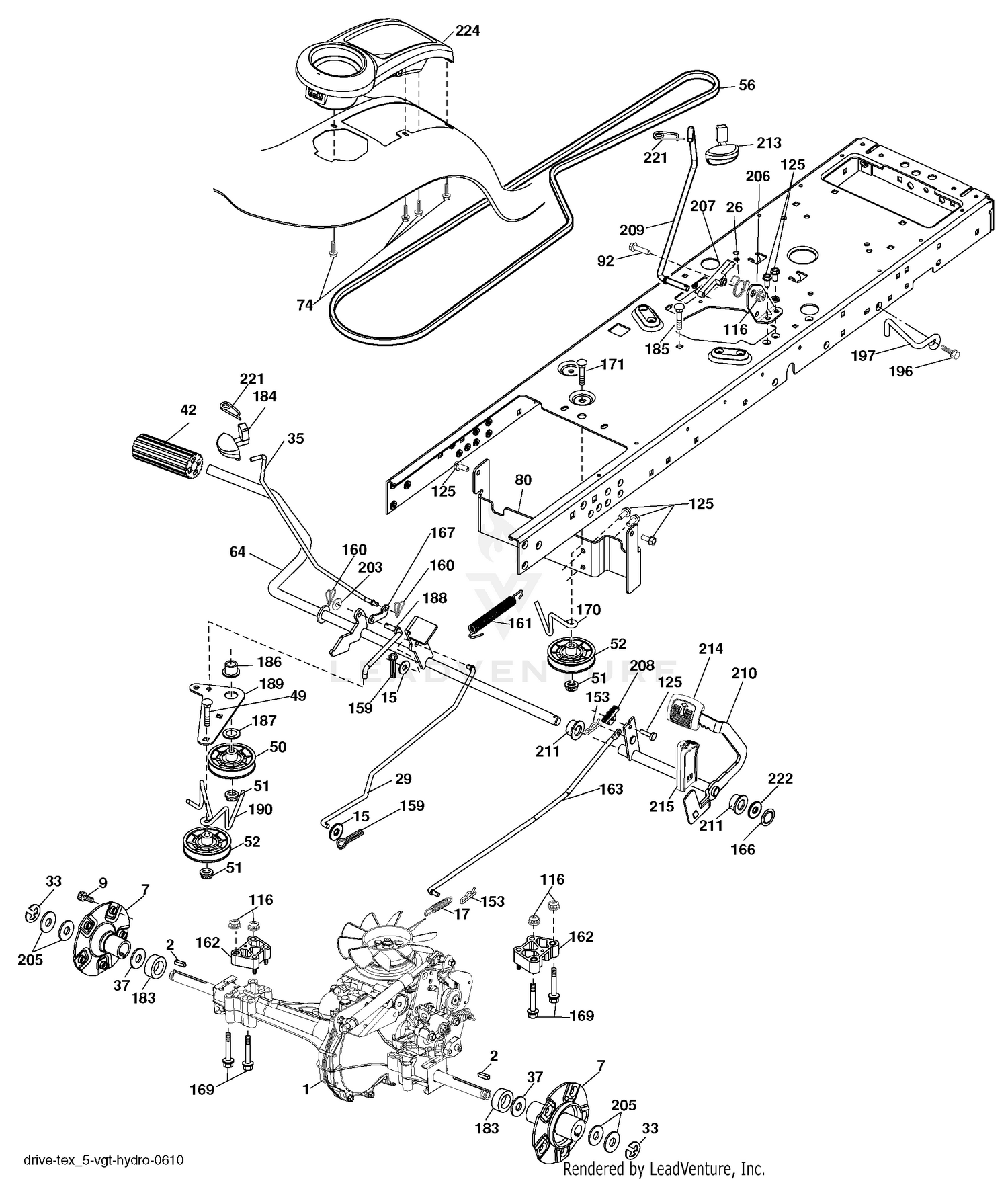

| Ref | Part Number | Description |
|---|
| 1 |
32121-6 |
PIN-ROLL, SLOTTED Price: $0.28 |
| 2 |
186211 |
Key 1.87 x 2.500 Price: Call Us |
| 2 |
32121-45 |
PIN-SPRING Price: $0.27 |
| 3 |
49-6440-03 |
PEDAL-FORWARD Price: $84.90 |
| 4 |
74-9100 |
PAD-PEDAL, FORWARD Price: $27.08 |
| 5 |
75-2970 |
PEDAL-TRACTION Price: $135.64 |
| 6 |
74-9110 |
PAD-PEDAL, REVERSE Price: $13.49 |
| 7 |
199844 |
Hub Asm. Wheel Price: Call Us |
| 7 |
75-6550 |
DISC-FRICTION Price: $7.96 |
| 8 |
75-6490 |
LEVER ASM Price: $78.45 |
| 9 |
140080 |
Bolt Hub Wheel Price: Call Us |
| 9 |
233-42 |
KNOB Price: $12.88 |
| 11 |
112-5084 |
BRACKET-LEVER This part replaces 75-6510. Price: $61.39 |
| 12 |
75-6580 |
CABLE-PEDAL Price: $34.72 |
| 13 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 14 |
3272-2 |
PIN-COTTER Price: $2.29 |
| 15 |
19131316 |
Washer 13/32 x 13/16 x 16 Ga. Price: Call Us |
| 15 |
3290-461 |
WASHER-SPRING Price: $3.89 |
| 16 |
121-4600 |
NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 17 |
197296 |
Spring, Brake Price: Call Us |
| 17 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 18 |
256-236 |
BEARING-MOUNT, FLANGE Price: $27.99 |
| 19 |
322-3 |
SCREW-HH Price: $0.79 |
| 20 |
93-8742 |
FOOTPAD-BRAKE Price: $27.95 |
| 23 |
63-7880 |
PIN-LATCH, BRAKE Price: $6.04 |
| 24 |
63-7733 |
LH BRAKE CABLE ASM Price: $210.39 |
| 25 |
63-7732 |
RH BRAKE CABLE ASM Price: $210.39 |
| 26 |
199679 |
Spring Return Cruise Price: Call Us |
| 26 |
3256-69 |
WASHER-FLAT Price: $0.62 |
| 27 |
32121-16 |
PIN-SPRING Price: $0.41 |
| 28 |
283-58 |
PIN-CLEVIS Price: $3.87 |
| 29 |
199467 |
Rod, Brake Price: Call Us |
| 29 |
75-1440-03 |
PEDAL-BRAKE, LH Price: $207.74 |
| 30 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 31 |
32121-50 |
PIN-SPRING Price: $1.21 |
| 32 |
75-1430 |
RH BRAKE PEDAL ASM Price: $255.51 |
| 33 |
12000001 |
Ring E #5133-75 Price: Call Us |
| 33 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 34 |
75-3270-03 |
HUB-PIVOT, TRACTION Price: $144.73 |
| 35 |
197275 |
Rod, Brake, Park Price: Call Us |
| 35 |
75-1470 |
PIN-PIVOT, BRAKE Price: $45.68 |
| 36 |
75-2170-03 |
TUBE-CONTROL, PUMP Price: $103.73 |
| 37 |
121749X |
Washer 25/32 x 1-1/4 x 16 Ga. Price: Call Us |
| 37 |
3220-3 |
NUT-HJ Price: $0.28 |
| 38 |
2411-36 |
BEARING-END, ROD Price: $32.13 |
| 39 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 40 |
323-9 |
SCREW-HH Price: $1.29 |
| 42 |
123533X |
Cover, Foot Pedal Price: Call Us |
| 49 |
72110614 |
Bolt Price: Call Us |
| 50 |
194327 |
Pulley Idler Flat Price: Call Us |
| 51 |
73900600 |
Lock Nut 3/8-16 Price: Call Us |
| 52 |
194326 |
Idler V-Groove 910" Offset Price: Call Us |
| 56 |
140218 |
V-Belt, Drive Price: Call Us |
| 64 |
197865 |
Shaft Asm. Pedal Brake Control Price: Call Us |
| 74 |
142432 |
Screw 1/4 x 1/2 Price: Call Us |
| 80 |
400507 |
Bracket Strp. Trq. Price: Call Us |
| 92 |
74760520 |
Bolt Fin Hex 5/16-18 unc x 1.25 Price: Call Us |
| 116 |
73900500 |
Nut Lock Hex Flange 5/16-18 Price: Call Us |
| 125 |
17000512 |
Screw 5/16-18 x 3/4 Price: Call Us |
| 153 |
4497H |
Retainer Spring 1" Price: Call Us |
| 159 |
76020412 |
Pin Cotter 1/8 x 3/4 Price: Call Us |
| 160 |
169484 |
Retainer Clip Price: Call Us |
| 161 |
195403 |
Spring, Return, Clutch Price: Call Us |
| 162 |
195785 |
Spacer Trans. Price: Call Us |
| 163 |
199000 |
Rod Control Cruise Price: Call Us |
| 166 |
197290 |
Nut Push .625 Price: Call Us |
| 167 |
196211 |
Latch Brake Parking Price: Call Us |
| 169 |
74490560 |
Bolt Hex Flngd. 5/16-18 x 3.75 Price: Call Us |
| 170 |
194322 |
Keeper Belt Centerspan Price: Call Us |
| 171 |
72110616 |
Bolt Price: Call Us |
| 183 |
400424 |
Spacer Split 800 x 350. Price: Call Us |
| 184 |
195361X428 |
Handle Parking Brake Price: Call Us |
| 185 |
72110620 |
Bolt Price: Call Us |
| 186 |
194321 |
Spacer Retainer Price: Call Us |
| 187 |
19133210 |
Washer Price: Call Us |
| 188 |
194323 |
Link Clutch Ground Drive Price: Call Us |
| 189 |
194317 |
Bellcrank Ground Drive Price: Call Us |
| 190 |
194318 |
Keeper Bellcrank Ground Drive Price: Call Us |
| 196 |
17000616 |
Screw 3/8-16 x 1 Price: Call Us |
| 197 |
199769 |
Bracket Clutch Anti-Rotation Price: Call Us |
| 203 |
19111116 |
Washer 11/32 x 11/16 x 16 Ga. Price: Call Us |
| 205 |
121748X |
Washer 25/32 x 1-5/8 x 16 Ga. Price: Call Us |
| 206 |
197867 |
Bracket Mount Latch Cruise Price: Call Us |
| 207 |
197868 |
Latch Control Cruise Price: Call Us |
| 208 |
197869 |
Gear Sector Control Cruise Price: Call Us |
| 209 |
199466 |
Rod Control Cruise Price: Call Us |
| 210 |
197860 |
Rocker Asm. Pedal Control Price: Call Us |
| 211 |
120183X |
Bearing Nylon Blk .629 Price: Call Us |
| 213 |
195352X428 |
Knob Control Cruise Price: Call Us |
| 214 |
197302 |
X428 Pedal Forward Price: Call Us 197302 X428 |
| 215 |
197301 |
X428 Pedal Reverse Price: Call Us 197301 X428 |
| 221 |
403187 |
Retainer Spring Clip Handle Price: Call Us |
| 222 |
19212010 |
Washer 21/32 x 1-1/4 x 10 Ga. Price: Call Us |
