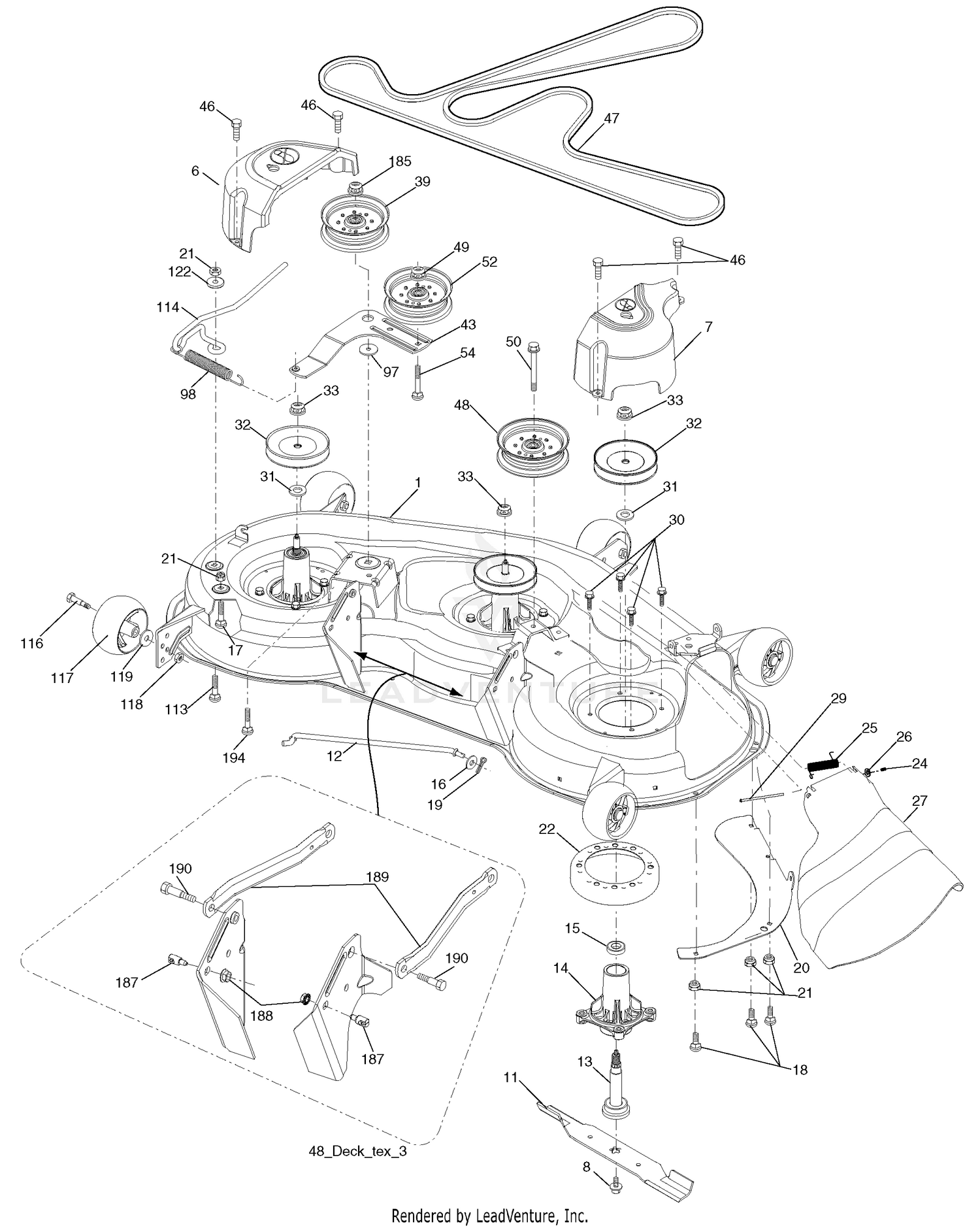

| Ref | Part Number | Description |
|---|
| 1 |
197216 |
Deck Weldment Mower Price: Call Us |
| 1 |
87-7270 |
WASHER-THRUST Price: $0.89 |
| 2 |
3213-2 |
SCREW-HH Price: $1.90 |
| 3 |
340-16 |
FITTING-HYD, 90 DEG Price: $54.23 |
| 4 |
340-166 |
FITTING-TEE, HYD Price: $47.31 |
| 5 |
105-1226 |
DISCONTINUED,ORDER SEPERATE PUMPS Price: Call Us |
| 6 |
197248 |
Cover Mandrel LH Price: Call Us |
| 6 |
354-77 |
FITTING-QUICK Price: $55.94 |
| 7 |
199102 |
Cover Mandrel RH Price: Call Us |
| 7 |
354-79 |
CAP-DUST Price: $7.81 |
| 8 |
174365 |
Bolt 7/16 Asm. Blade Price: Call Us |
| 8 |
56-9530 |
FITTING-HYD, 90 DEG Price: $109.45 |
| 9 |
2412-111 |
CLAMP Price: $4.39 |
| 10 |
92-7526 |
FITTING-HYD 90 SPCL Price: $119.68 |
| 11 |
104-3797 |
FITTING-STRAIGHT Price: $26.85 |
| 11 |
173921 |
Blade Mulching Price: Call Us |
| 11 |
180054 |
Blade High Lift Price: Call Us |
| 12 |
340-109 |
FITTING-TEE Price: $59.90 |
| 12 |
400337 |
Rod Anti-Sway Price: Call Us |
| 13 |
187291 |
Shaft Asm. w/Lower Bearing Price: Call Us |
| 13 |
340-98 |
FITTING-ELBOW, 90 DEG Price: $31.91 |
| 14 |
104-5482 |
HOSE-SUCTION Price: $67.06 |
| 14 |
187281 |
Housing, Mandrel Price: Call Us |
| 15 |
104-5484 |
HOSE-SUCTION Price: $85.47 |
| 15 |
110485X |
Bearing, Ball, Mandrel Price: Call Us |
| 16 |
105-0122 |
HARNESS-WIRE Price: $26.07 |
| 16 |
19131312 |
Washer 13/23 x 13/16 x 1 2Ga. Price: Call Us |
| 17 |
105-3874 |
HOSE ASM Price: $199.36 |
| 17 |
72110505 |
Bolt Carr. 5/16-18 x 5/8 Price: Call Us |
| 18 |
105-3875 |
HYD HOSE ASM Price: $171.90 |
| 18 |
72140505 |
Bolt RdHd 5/16-18 unc x 5/8 Price: Call Us |
| 19 |
194208 |
Pin Cotter 5/16 Bowtie Lock Price: Call Us |
| 19 |
92-7595 |
HOSE-HYD Price: $102.70 |
| 20 |
105-3869 |
HOSE ASM Price: $109.78 |
| 20 |
174378 |
Baffl e Vortex Price: Call Us |
| 21 |
73680500 |
Nut, Crownlock 5/16-18 unc Price: Call Us |
| 22 |
174493 |
Stripper Mandrel Deck Price: Call Us |
| 22 |
340-141 |
FITTING-STR Price: $21.08 |
| 24 |
105304X |
Cap Sleeve Price: Call Us |
| 25 |
178102 |
Spring, Torsion Price: Call Us |
| 26 |
110452X |
Nut, Push Price: Call Us |
| 27 |
180655X428 |
Defl ector Shield Price: Call Us |
| 29 |
131491 |
Rod, Hinge Price: Call Us |
| 30 |
173984 |
Screw, Thdroll Washer Head Price: Call Us |
| 31 |
187690 |
Washer, Spacer Mower Vented Price: Call Us |
| 32 |
153532 |
Pulley, Mandrel Price: Call Us |
| 33 |
400234 |
Nut, Flg. Top Lock Price: Call Us |
| 39 |
197380 |
Pulley, Idler, Stationary Price: Call Us |
| 43 |
196065 |
Arm, Idler Price: Call Us |
| 46 |
137729 |
Screw, Thdroll. 1/4-20 x 5/8 Price: Call Us |
| 47 |
197242 |
Belt Drive Deck Price: Call Us |
| 48 |
193197 |
Pulley Idler Primary Price: Call Us |
| 49 |
73900600 |
Nut, Lock Flg. 3/8-16 unc Price: Call Us |
| 50 |
17490636 |
Screw 3/8-16 x 1-1/4 unc Price: Call Us |
| 52 |
197379 |
Pulley Idler Price: Call Us |
| 54 |
72110612 |
Bolt Carriage 3/8-16 x 1-1/2 Gr.5 Price: Call Us |
| 97 |
178515 |
Washer Hardened Price: Call Us |
| 98 |
196105 |
Spring Drive Price: Call Us |
| 113 |
72110508 |
Bolt Rdhd Sqnk 5/16-18 x 3/4 Price: Call Us |
| 114 |
197451 |
Rod Tension Relief Price: Call Us |
| 116 |
4898H |
Bolt, Shoulder Price: Call Us |
| 117 |
188606 |
Gauge Wheel Price: Call Us |
| 118 |
73930600 |
Nut 3/8-16 UNC Price: Call Us |
| 119 |
19121414 |
Washer 3/8 x 7/8 x 14 Ga. Price: Call Us |
| 122 |
187557 |
Bushing Tension Relief Price: Call Us |
| 185 |
73900700 |
Nut Lock Flange 7/16-14 Gr. 5 Price: Call Us |
| 187 |
195161 |
Stud Fastener w/"D" Anti-Rotation Price: Call Us |
| 188 |
73900500 |
Nut Lock Hex Flange Price: Call Us |
| 189 |
195185 |
Arm Susp. Mower Rear Price: Call Us |
| 190 |
196539 |
Bolt Shoulder Price: Call Us |
| 194 |
72140716 |
Bolt Carr Sqnk 3/8-16 x 2-1/4 Price: Call Us |
