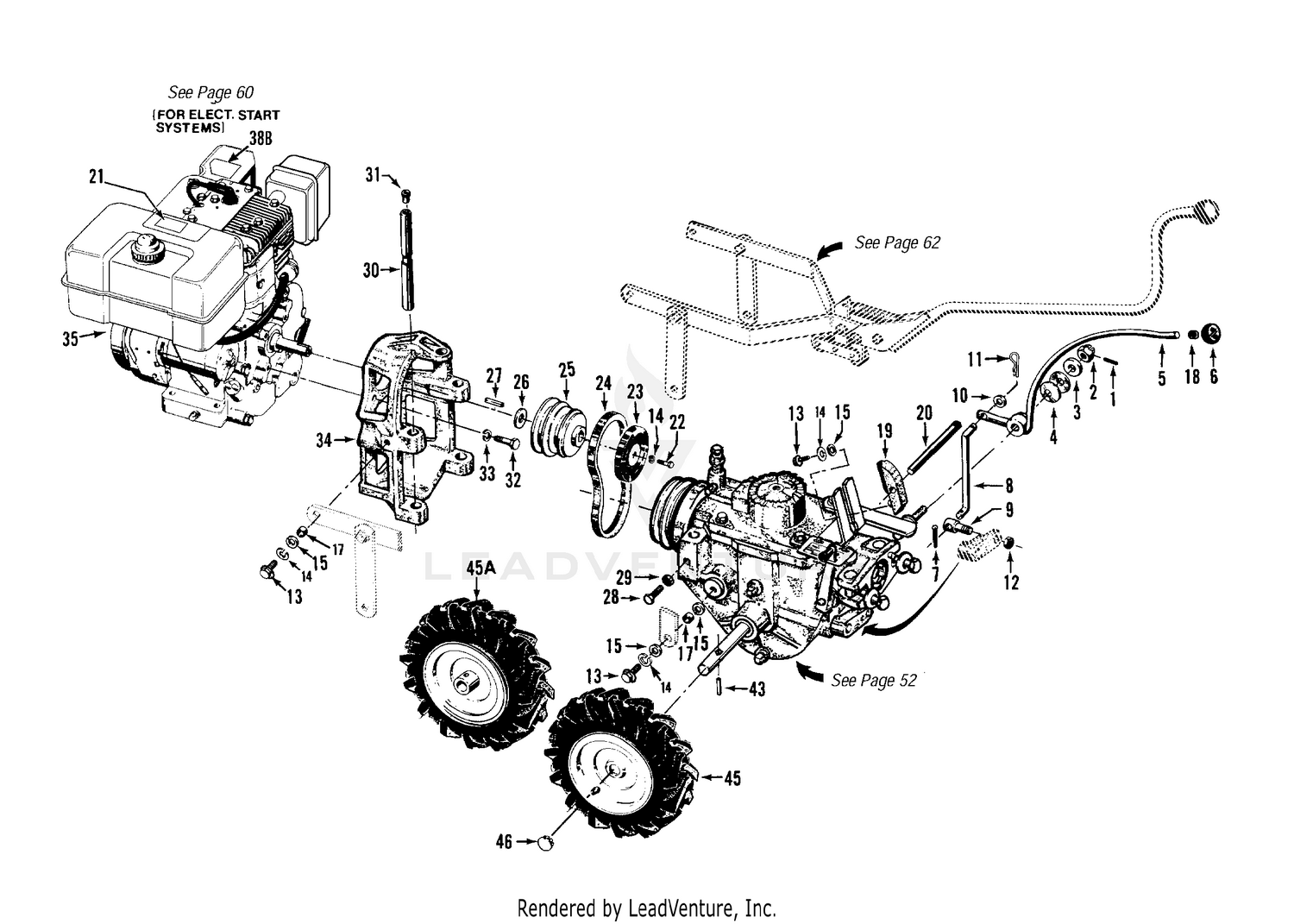

| Ref | Part Number | Description |
|---|
| 1 |
GW-9362 |
PIN - spring, 1/8" dia., retains castle nut to threaded stud This part replaces 9362. Price: $3.82 |
| 2 |
9838 |
Nut-castle (slotted), 1/2"-20 Price: Call Us |
| 3 |
GW-9934 |
WASHER- shoulder, 1/2" (shoulder faces disc washers) This part replaces 9934. Price: $13.73 |
| 4 |
GW-9932 |
WASHER- disc spring (concave surfaces face each other) This part replaces 9932. Price: $21.54 |
| 6 |
1902240 |
Knob-wheel speed shift lever Price: $20.45 |
| 7 |
GW-9317 |
PIN - cotter, 3/32" x 1" This part replaces 9317. Price: $3.22 |
| 8 |
GW-1231 |
ROD - connecting rod, wheel speed shift lever This part replaces 1231. Price: $14.83 |
| 9 |
GW-1033 |
SWIVEL - connecting rod This part replaces 1033. Price: $13.56 |
| 10 |
736-0275 |
FLAT WASHER This part replaces 1107382. Price: $5.99 |
| 11 |
714-04048 |
PIN - hair cotter This part replaces 9338. Price: $7.04 |
| 12 |
912-0158 |
Hex Lock Nut, 5/16-18 This part replaces 1110107. Price: $2.83 |
| 13 |
710-0514 |
SCREW 3/8-16 x 1 GR5 This part replaces 1100046. Price: $3.78 |
| 14 |
736-0169 |
L-Wash. 3/8" I.D." This part replaces 1100243. Price: $3.33 |
| 15 |
736-3050 |
Washer, Plain (flat) 3/8, S.A.E. This part replaces 1107383. Price: $3.90 |
| 17 |
GW-1113-1099 |
BUSHING - spacer, 19/64" (.300") long, yoke link to retaining plug This part replaces 1113-1. Price: $4.53 |
| 18 |
GW-9120 |
RING- retaining (tolerance ring) This part replaces 9120. Price: $5.94 |
| 20 |
GW-2100 |
ROD - belt adjustment, 7" long, with measuring gauge This part replaces 2100. Price: $11.28 |
| 22 |
710-0459A |
BOLT - hex. hd., 3/8"-24 x 1-1/2", engine pulley This part replaces 1100011. Price: $6.50 |
| 25 |
619-04124 |
PULLEY- engine P.T.O. (Power Take Off) This part replaces 1483. Price: $135.20 |
| 26 |
736-04187 |
SHIM - engine pulley, 1/16" thick This part replaces 1138-1. Price: $4.36 |
| 26 |
736-04192 |
SHIM - same as above, 1/32" thick This part replaces 1138-2. Price: $5.94 |
| 27 |
GW-9303 |
KEY - engine pulley, 3/16" square x 2-1/2" This part replaces 9303. Price: $3.22 |
| 28 |
710-0376 |
Hex Screw, 5/16-18 x 1.00 This part replaces 1100045. Price: $3.66 |
| 29 |
N/A |
UNKNOWN |
| 30 |
GW-1034A |
BAR- engine mounting This part replaces GW-1034. Price: $41.06 |
| 31 |
GW-9147 |
PLUG - thread protector, red plastic This part replaces 9147. Price: $7.05 |
| 32 |
710-0672 |
BOLT- hex. hd., 5/16"-24 x 1-1/8", engine mounting This part replaces 9572. Price: $3.85 |
| 33 |
936-0119 |
LOCK WASHER 5/16 This part replaces 1100242. Price: $4.29 |
| 34 |
719-04222-0637 |
Motor Mount This part replaces 1916274001. Price: $274.62 |
| 38B |
1904565 |
DECAL-WARNING Not Available Price: |
| 43 |
GW-9322099 |
PIN -roll (spirol, 5/16" x 1-1/2" long, wheel hub to shaft This part replaces 9322. Price: $6.86 |
| 46 |
1902020 |
HUB CAP Not Available Price: |
