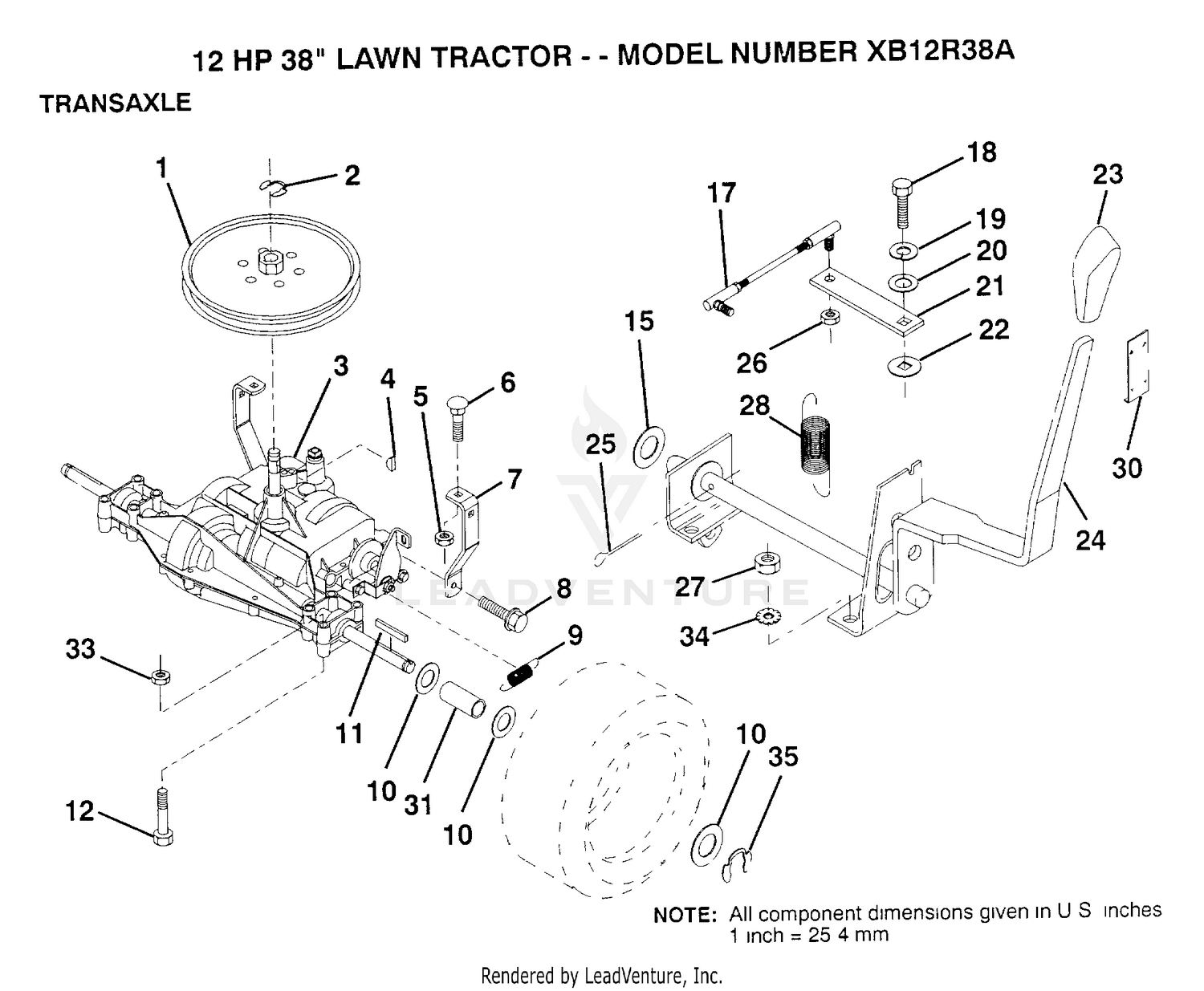

| Ref | Part Number | Description |
|---|
| 1 |
123385X |
PULLEY Price: Call Us |
| 1 |
302-60 |
FITTING-GREASE Price: $2.26 |
| 2 |
12000028 |
SUB= 2267J Price: Call Us |
| 2 |
32151-104 |
RING-RETAINING, EXTERNAL Price: $4.85 |
| 3 |
123655X |
SUB= 137366 Price: Call Us |
| 3 |
87-1430 |
JOINT-BALL Price: $97.01 |
| 4 |
2228M |
SUB= 2228M1 Price: Call Us |
| 4 |
87-2420 |
SEAL-JOINT, BALL Price: $16.46 |
| 5 |
3256-27 |
WASHER-FLAT Price: $0.47 |
| 5 |
73680500 |
SUB= 73690500 Price: Call Us |
| 6 |
32136-2 |
NUT-SHH Price: $3.55 |
| 6 |
72140506 |
BOLT Price: Call Us |
| 7 |
3272-17 |
PIN-COTTER Price: $1.79 |
| 8 |
112771-03 |
JOINT-BALL, LH This part replaces 112771. Price: $77.99 |
| 8 |
17490512 |
SCREW Price: Call Us |
| 9 |
110422X |
SUB= 146682 Price: Call Us |
| 9 |
3-8386 |
NUT-PINION, REEL Price: $9.79 |
| 10 |
100-8534 |
TIE ROD-STEERING Price: $73.44 |
| 10 |
121749X |
WASHER Price: Call Us |
| 11 |
123583X |
SQUARE KEY Price: Call Us |
| 11 |
3220-11 |
NUT-JAM Price: $0.81 |
| 12 |
112772-03 |
JOINT-BALL, RH This part replaces 112772. Price: $77.99 |
| 12 |
74760644 |
BOLT Price: Call Us |
| 13 |
100-8541 |
BUSHING-A ARM Price: $3.49 |
| 14 |
138-8290 |
A-ARM ASM-LH This part replaces 100-6745. Price: $715.80 |
| 16 |
100-8544 |
PIVOT PIN ASM Price: $71.60 |
| 17 |
327-4 |
SCREW-HH Price: $2.20 |
| 18 |
328-24 |
SCREW-HH Price: $23.99 |
| 18 |
71040412 |
SUB= 74550412 Price: Call Us |
| 19 |
10040400 |
LOCKWASHER Price: Call Us |
| 19 |
32128-50 |
NUT-FLANGE Price: $1.78 |
| 20 |
100-8413 |
LH AXLE ASM This part replaces 100-8535. Price: $644.57 |
| 20 |
19091210 |
WASHER LT Price: Call Us |
| 22 |
105701X |
WASH-SHFT PLT LT Price: Call Us |
| 22 |
3234-4 |
SCREW-HHF Price: $0.50 |
| 23 |
32128-33 |
NUT-HF Price: $0.25 |
| 24 |
128202 |
SUB= 532128202 Price: Call Us |
| 24 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 25 |
108-3651 |
SPINDLE-SERVICE ASM, LH This part replaces 100-6739. Price: $210.69 |
| 25 |
76020416 |
PIN COTTER 1/8 Price: Call Us |
| 26 |
73810500 |
NUT.LOCK.5/16-24 Price: Call Us |
| 27 |
108-3670 |
PIVOT-STEERING This part replaces 100-6774. Price: $137.54 |
| 27 |
73510500 |
NUT Price: Call Us |
| 28 |
256-318 |
BEARING-NYLINER Price: $19.24 |
| 29 |
3-6781 |
WASHER-THRUST Price: $1.40 |
| 30 |
100-6785 |
RING-RETAINING Price: $2.99 |
| 30 |
123692X |
KNOB RETAINER Price: Call Us |
| 31 |
100-8278 |
HYD CYLINDER ASM Price: $1,220.90 |
| 31 |
123409X |
SPACER Price: Call Us |
| 32 |
915031 |
NUT Price: $1.09 |
| 33 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 33 |
73680600 |
SUB= 73690600 Price: Call Us |
| 34 |
11050500 |
LOCKWASHER.5/16.E Price: Call Us |
| 34 |
87-3470 |
BUMPER Price: $18.89 |
| 35 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 36 |
93-6166 |
NUT-HEX Price: $0.41 |
| 37 |
3256-25 |
WASHER-FLAT Price: $0.25 |
| 38 |
32136-13 |
NUT-SHH Price: $2.85 |
| 39 |
2412-134 |
CLAMP-R Price: $5.79 |
| 40 |
32128-33 |
NUT-HF Price: $0.25 |
| 41 |
321-6 |
SCREW-HH Price: $0.25 |
| 42 |
100-7060 |
DISCONTINUED Price: Call Us |
