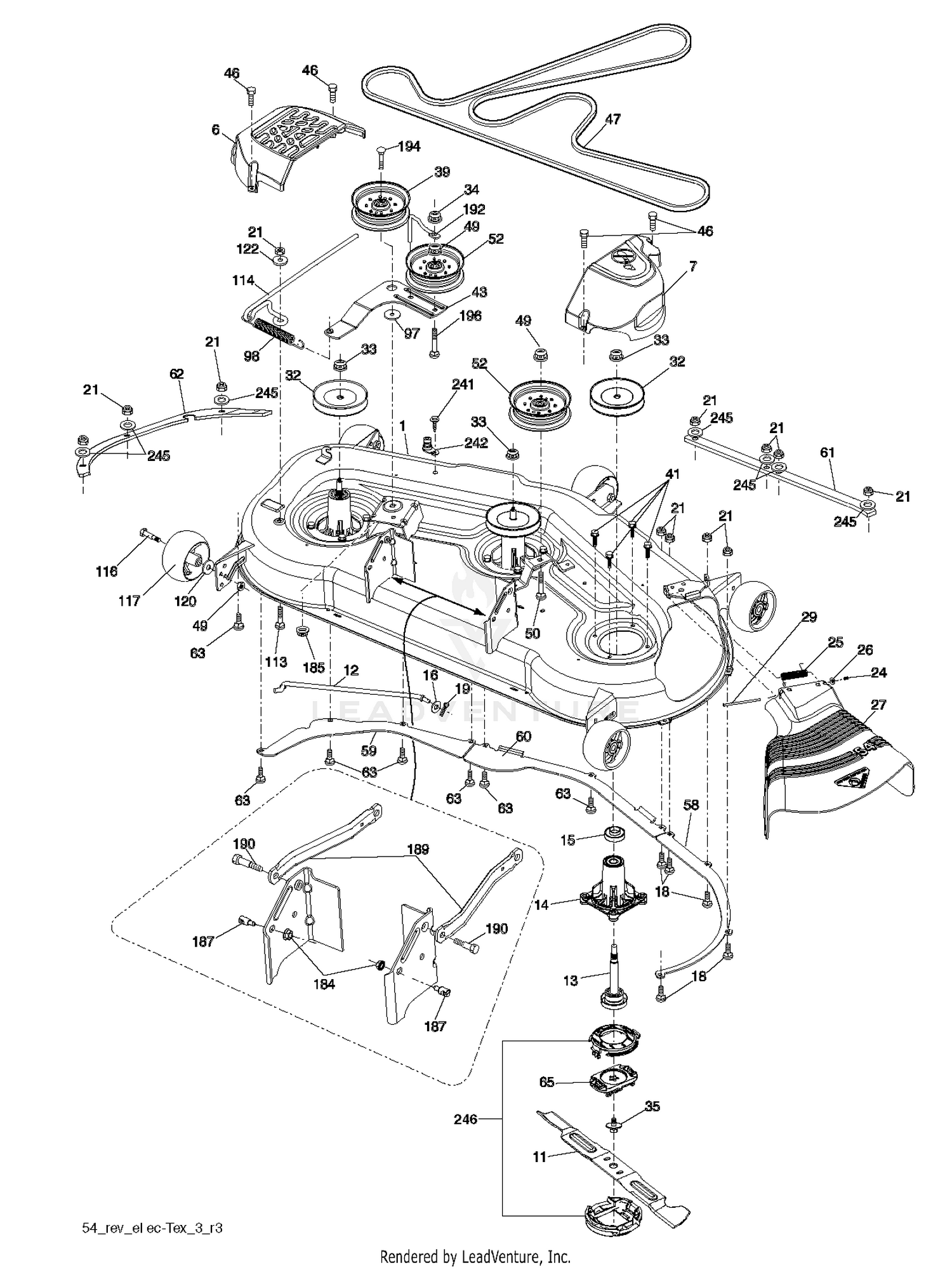

| Ref | Part Number | Description |
|---|
| 1 |
233-39 |
KNOB-CONTROL Price: $16.12 |
| 1 |
532418230 |
DECK SVC 54" 417743X668 This part replaces 532441847. Price: $649.99 |
| 2 |
66-2920 |
WASHER-FRICTION Price: $2.58 |
| 3 |
76-8450 |
DISCONTINUED Price: Call Us |
| 4 |
3290-148 |
NUT-HF Price: $0.25 |
| 5 |
70-1480 |
RELAY Price: $105.19 |
| 6 |
532196066 |
COVER.MANDREL.LH.54"20 Price: $22.99 |
| 6 |
83-2280 |
TIMER-DELAY Price: $126.04 |
| 7 |
3256-77 |
WASHER-FLAT Price: $1.60 |
| 7 |
532197181 |
COVER.MANDREL.RH.54.20 Price: $27.99 |
| 8 |
3290-126 |
SCREW-HWH Price: $1.79 |
| 9 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 10 |
3256-78 |
WASHER-FLAT Price: $1.21 |
| 11 |
581101101 |
BLADE.BAGGER.54" Price: $24.99 |
| 11 |
63-7590 |
RELAY Price: $78.15 |
| 12 |
321-2 |
SCREW-HH Price: $2.79 |
| 12 |
596274401 |
Rods This part replaces 532400337. Price: $9.99 |
| 13 |
587820201 |
KIT,MANDREL,NONGREASE,REVOL This part replaces 580862101. Price: $32.99 |
| 13 |
77-3970 |
DISCONTINUED Price: Call Us |
| 14 |
32144-4 |
SCREW-HWH Price: $1.29 |
| 14 |
587819701 |
KIT.MANDREL.NONGREASE.TALL This part replaces 532187281. Price: $49.99 |
| 15 |
585323901 |
BEARING.MANDREL.TOP.EXTENDED Price: $12.99 |
| 15 |
76-5260 |
DISCONTINUED Price: Call Us |
| 16 |
596134901 |
GSPH This part replaces 819131312. Price: $2.99 |
| 16 |
76-8440 |
DISCONTINUED Price: Call Us |
| 17 |
86-5410 |
DISCONTINUED Price: Call Us |
| 18 |
3296-47 |
NUT-LOCK, NI Price: $3.59 |
| 18 |
596136401 |
Bolts This part replaces 872140505. Price: $2.99 |
| 19 |
3255-8 |
WASHER-LOCK Price: $0.31 |
| 19 |
532194208 |
PIN.COTTER.5/16.BOW TI Price: $2.99 |
| 20 |
67-7160 |
BLOCK-FUSE Price: $18.75 |
| 21 |
218-573 |
FUSE-5 AMP Price: $2.64 |
| 21 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 22 |
3255-7 |
WASHER-LOCK/EXT Price: $1.39 |
| 23 |
2412-32 |
R-CLAMP Price: $0.61 |
| 24 |
3296-12 |
NUT-LOCK, NI Price: $1.29 |
| 24 |
532105304 |
CAP-SLEEVE LT Price: $3.99 |
| 25 |
3296-44 |
NUT-LOCK, NI Price: $2.46 |
| 25 |
539107609 |
TORSION SPRING This part replaces 532178102. Price: $4.99 |
| 26 |
532110452 |
NUT PUSH M Price: $2.99 |
| 26 |
76-4300 |
LEVER-THROTTLE Price: $33.40 |
| 27 |
2412-39 |
CLAMP-R Price: $1.70 |
| 27 |
532187257 |
DEFLECTOR.BLACK.54" This part replaces 532188938. Price: $64.99 |
| 28 |
48-7880 |
NUT-HEX Price: $0.25 |
| 29 |
48-7890 |
NUT-HEX Price: $0.25 |
| 29 |
595297001 |
Rods This part replaces 532131491. Price: $4.99 |
| 32 |
532173436 |
PULLEY MANDREL This part replaces 532153535. Price: $14.99 |
| 33 |
596134801 |
Nuts This part replaces 532400234. Price: $1.00 |
| 34 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 35 |
532193003 |
BOLT.WASHER.ASM.7/16-2 This part replaces 584309301. Price: $6.99 |
| 39 |
532196104 |
PULLEY.IDLER.MWR.STATI.LH This part replaces 532197380. Price: $37.99 |
| 41 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 Price: $3.99 |
| 43 |
531169301 |
SERVICE KIT ARM.IDLER This part replaces 532196065. Price: $9.99 |
| 46 |
532137729 |
SCREW.1/4-20X5/8 Price: $3.99 |
| 47 |
587686701 |
BELT.DECK.DRIVE.BELT.54 Price: $54.99 |
| 49 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 50 |
596136301 |
Bolts This part replaces 872110616. Price: $2.99 |
| 52 |
532196106 |
PULLEY.IDLER.2006 This part replaces 532197379. Price: $34.99 |
| 58 |
531168601 |
SERVICE KIT BAFFLE.RIGHT.54" This part replaces 532187342. Price: $12.99 |
| 59 |
531168701 |
SERVICE KIT BAFFLE.LEFT.54" BA This part replaces 532187344. Price: $19.99 |
| 60 |
531168801 |
SERVICE KIT BAFFLE BAFFLE CENT This part replaces 532187607. Price: $19.99 |
| 61 |
585322605 |
PLATE.REIN.FRONT.BOLT54"X431 Price: $17.99 |
| 62 |
585322806 |
REINFORCEMENT PLATE 54 SIDE BO This part replaces 585322805. Price: $14.99 |
| 63 |
872110510 |
BOLT.CARRIAGE.5/16-18 Price: $4.99 |
| 65 |
580954003 |
HOLDER.BLADE.REVOLUTION Price: $179.99 |
| 97 |
532178515 |
WASHER Price: $5.99 |
| 98 |
547878302 |
SPRING BELT TENSIONER BLACK This part replaces 532196105. Price: $5.99 |
| 113 |
596435701 |
Bolts This part replaces 872110508. Price: $2.99 |
| 114 |
532187556 |
ROD TENSION RELIEF Price: $17.99 |
| 116 |
596434404 |
Bolts This part replaces 532193406. Price: $4.99 |
| 117 |
589527301 |
WHEEL.GAUGE.RALLY Price: $8.99 |
| 120 |
596134901 |
GSPH This part replaces 819132012. Price: $2.99 |
| 122 |
532187557 |
BUSHING.RELIEF.TENSION Price: $7.99 |
| 184 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 185 |
873900700 |
NUT.LOCK.FLANGE.7/16 Price: $3.99 |
| 187 |
593824001 |
STUD.W/"D"ANTI-ROTATION This part replaces 532195161. Price: $3.99 |
| 189 |
531169201 |
SERVICE KIT ARM ARM.SUSPENSION This part replaces 532195185. Price: $12.99 |
| 190 |
532196539 |
BOLT.SHOULDER Price: $5.99 |
| 192 |
532198468 |
KEEPER.BELT.IDLER.54"T Price: $7.99 |
| 194 |
874490736 |
BOLT.HEX.WASHER.HEAD.7/16-24X Price: $9.99 |
| 196 |
596337801 |
Bolts This part replaces 539128101. Price: $4.99 |
| 242 |
532415598 |
PORT.WASHOUT Price: $6.99 |
| 245 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 819111116. Price: $2.99 |
| 246 |
586638501 |
CAP.REVOLUTION ASM Price: $29.99 |
