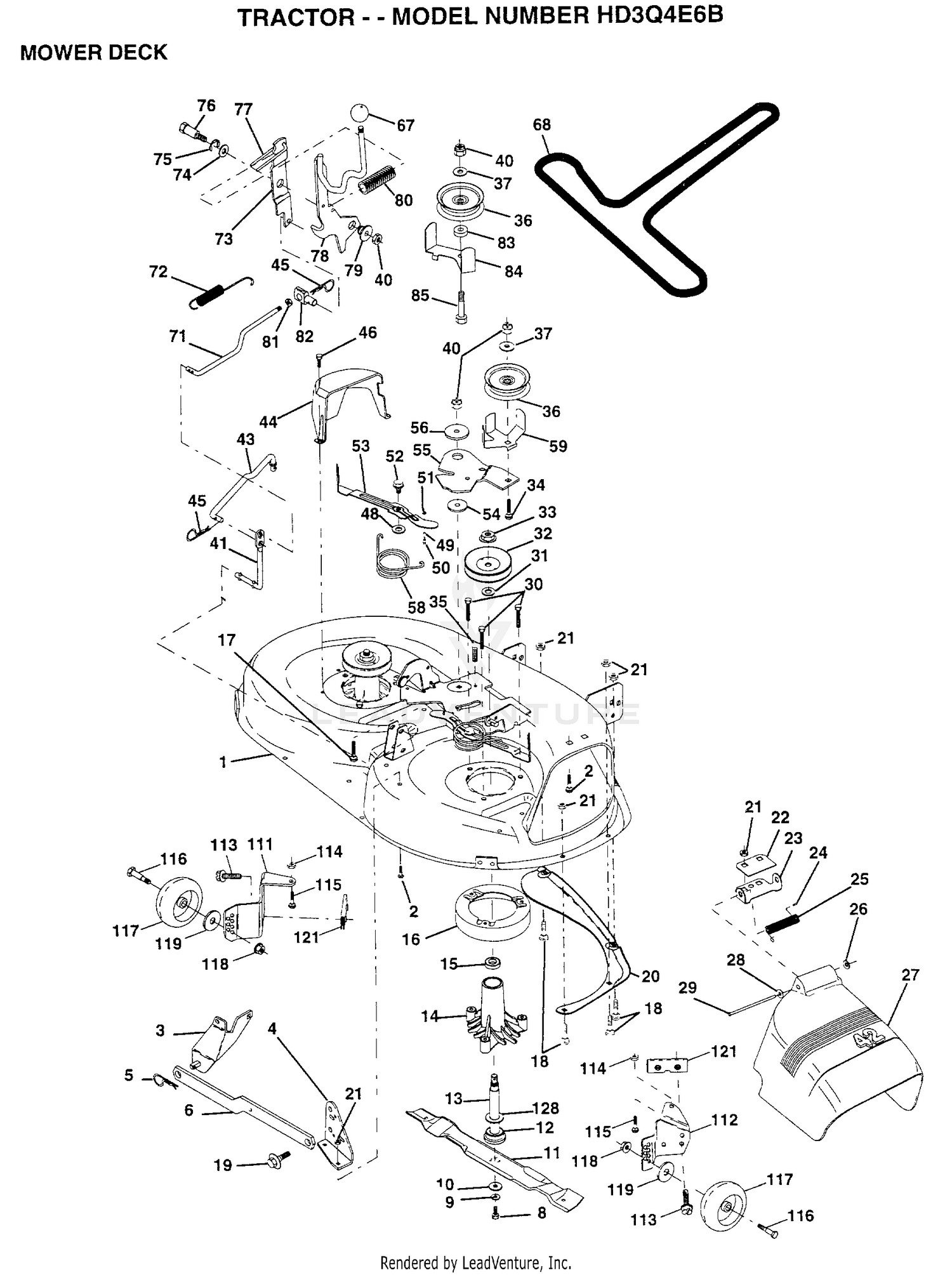

| Ref | Part Number | Description |
|---|
| 1 |
144393 |
DECK.WELD.42. Price: Call Us |
| 2 |
72140506 |
BOLT Price: Call Us |
| 2 |
93-6697 |
DECAL-LUBE This part replaces 70-2560. Price: $11.38 |
| 3 |
138017 |
BRKT ASM SWAY BAR Price: Call Us |
| 3 |
99-2407 |
HOSE ASM Price: $107.11 |
| 4 |
138440 |
BRKT DECK SW BAR Price: Call Us |
| 4 |
340-97 |
FITTING-ELBOW, 90 DEG Price: $36.21 |
| 5 |
4939M |
SUB= 85902 Price: Call Us |
| 5 |
99-2408 |
HOSE ASM Price: $101.52 |
| 6 |
130832 |
SUB= 130833 Price: Call Us |
| 6 |
32128-20 |
NUT-HF Price: $0.99 |
| 7 |
2412-74 |
R-CLAMP Price: $2.37 |
| 8 |
3234-17 |
SCREW-HHF Price: $0.72 |
| 8 |
850857 |
BLADE BOLT Price: Call Us |
| 9 |
10030600 |
SUB= 10040600 Price: Call Us |
| 9 |
56-7985 |
SLEEVE-PROTECTIVE Price: $32.43 |
| 10 |
140296 |
WASHER.HARD.BLADE Price: Call Us |
| 10 |
93-5268 |
NUT-LUG Price: $2.20 |
| 12 |
129895 |
BEARING.BALL Price: Call Us |
| 12 |
98-5009 |
DRIVESHAFT ASM Price: $1,454.33 |
| 13 |
105-0073-01 |
SPACER-FRAME Price: $30.13 |
| 13 |
137645 |
SUB= 137646 Price: Call Us |
| 14 |
128774 |
HSG ASM MANDREL Price: Call Us |
| 15 |
110485X |
BEARING Price: Call Us |
| 16 |
140329 |
STRIPPER RND MWR Price: Call Us |
| 16 |
3274-64 |
SCREW-HSH This part replaces 3274-8. Price: $1.02 |
| 17 |
32128-23 |
NUT-HF Price: $1.51 |
| 17 |
72110610 |
BOLT RDHD 3/8-16 Price: Call Us |
| 18 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 18 |
72140505 |
BOLT Price: Call Us |
| 19 |
132827 |
BOLT SHD 5/16-18 Price: Call Us |
| 19 |
3234-46 |
SCREW-HHF Price: $2.08 |
| 20 |
106-1120 |
REAR AXLE ASM This part replaces 95-7501. Price: $6,718.01 |
| 20 |
136888 |
SUB= 918136888 Price: Call Us |
| 21 |
73680500 |
SUB= 73690500 Price: Call Us |
| 21 |
98-3860-03 |
ADAPTOR-LOCATOR, CLUTCH Price: $105.86 |
| 22 |
134753 |
STIFFENER BRKT Price: Call Us |
| 22 |
95-6296 |
CLUTCH-BIDIRECTIONAL Price: $1,190.02 |
| 23 |
131267 |
DEFLECTOR BRKT Price: Call Us |
| 23 |
99-8436 |
SPACER-CLUTCH Price: $77.75 |
| 24 |
105304X |
CAP-SLEEVE LT Price: Call Us |
| 24 |
33094-00 |
WASHER-PLAIN Price: $0.25 |
| 25 |
123713X |
SPRING TORSION Price: Call Us |
| 25 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 26 |
110452X |
NUT PUSH M Price: Call Us |
| 26 |
33114-070 |
SCREW-HH Price: $1.56 |
| 27 |
100-6570-01 |
AXLE SUPPORT ASM Price: $671.00 |
| 27 |
130968 |
DEFLECTOR.SHIELD Price: Call Us |
| 28 |
19111016 |
WASHER Price: Call Us |
| 28 |
98-3863 |
STOP-OSCILLATION Price: $50.19 |
| 29 |
131491 |
HINGE ROD Price: Call Us |
| 29 |
3296-15 |
NUT-LOCK, NI Price: $1.75 |
| 30 |
138776 |
SUB= 157722 Price: Call Us |
| 30 |
99-8434-03 |
REAR AXLE PIN ASM Price: $204.62 |
| 31 |
129963 |
WASHER Price: Call Us |
| 31 |
32144-14 |
SCREW-HWHTF Price: $4.29 |
| 32 |
153535 |
PULLEY.MANDREL.42 Price: Call Us |
| 32 |
99-8431 |
WASHER-THRUST Price: $4.63 |
| 33 |
137266 |
SUB= 139729 Price: Call Us |
| 33 |
99-8432 |
WASHER-THRUST Price: $4.21 |
| 34 |
71-4540 |
WASHER-THRUST Price: $1.97 |
| 34 |
72110614 |
BOLT Price: Call Us |
| 35 |
133835 |
XMAS TREE FASTNER Price: Call Us |
| 35 |
32146-20 |
NUT-HEX Price: $3.23 |
| 36 |
131494 |
FLAT IDLER PULLEY Price: Call Us |
| 36 |
98-3869-01 |
WEIGHT-REAR Price: $461.69 |
| 37 |
19131316 |
WASHER Price: Call Us |
| 37 |
98-3880-03 |
BUMPER Price: $185.17 |
| 38 |
325-7 |
SCREW-HH Price: $1.53 |
| 39 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 40 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 40 |
73680600 |
SUB= 73690600 Price: Call Us |
| 41 |
133551 |
PIVOT ROD Price: Call Us |
| 42 |
302-11 |
FITTING-LUBE, 45 DEG Price: $1.56 |
| 43 |
140083 |
ROD CLUTCH W/NIBS Price: Call Us |
| 43 |
3220-6 |
NUT-JAM Price: $1.25 |
| 44 |
140088 |
GUARD MAND LH BLK Price: Call Us |
| 44 |
95-8812 |
SCREW-HH Price: $1.22 |
| 45 |
4497H |
RETAINER M Price: Call Us |
| 45 |
98-3862-03 |
BRACKET-SUPPORT, CYLINDER Price: $161.16 |
| 46 |
137729 |
SCREW.1/4-20X5/8 Price: Call Us |
| 46 |
302-33 |
FITTING-GREASE Price: $2.31 |
| 47 |
98-3871-03 |
TIE ROD ASM Price: $893.72 |
| 48 |
133944 |
HARD SMALL WASHER Price: Call Us |
| 48 |
99-2413-01 |
COVER-GUARD, FLYWHEEL Price: $22.07 |
| 49 |
133940 |
SUB= 151785 Price: Call Us |
| 49 |
32144-10 |
SCREW-HWH Price: $4.29 |
| 50 |
131340 |
SHOULDER BOLT Price: Call Us |
| 50 |
48-9220 |
WASHER-PLAIN Price: $0.87 |
| 51 |
3272-12 |
PIN-COTTER Price: $0.25 |
| 51 |
69180 |
LOCKNUT Price: Call Us |
| 52 |
139888 |
BOLT.SHLD.5/16-18 Price: Call Us |
| 52 |
87-3700 |
SCREW-CAP, HH Price: $1.29 |
| 53 |
131845 |
BRAKE PAD ARM ASM Price: Call Us |
| 53 |
2412-74 |
R-CLAMP Price: $2.37 |
| 54 |
133943 |
HARDENED WASHER Price: Call Us |
| 55 |
140084 |
SUB= 151785 Price: Call Us |
| 56 |
122052X |
SPACER RETAINER Price: Call Us |
| 58 |
140086 |
SPRING TORSN BRAK Price: Call Us |
| 59 |
141043 |
GUARD IDLER TUV Price: Call Us |
| 67 |
106933X |
KNOB T (1/2-HOLE) Price: Call Us |
| 68 |
144200 |
BELT.V.T-PATH Price: Call Us |
| 71 |
142427 |
ROD CLUTCH 38/42 Price: Call Us |
| 72 |
131870 |
RETURN SPRING Price: Call Us |
| 73 |
127847 |
CLUTCH ARM SECOND Price: Call Us |
| 74 |
121748X |
WASHER Price: Call Us |
| 75 |
12000029 |
RING Price: Call Us |
| 76 |
128903 |
SHOULDER BOLT Price: Call Us |
| 77 |
127845 |
SPRING KEEPER Price: Call Us |
| 78 |
140179 |
LEVER ASM CLT PRM Price: Call Us |
| 79 |
127498 |
BUSHING Price: Call Us |
| 80 |
153701 |
SPRING.CLUTCH.MWR Price: Call Us |
| 81 |
73350600 |
NUT Price: Call Us |
| 82 |
142028 |
TRUNION ADJ Price: Call Us |
| 83 |
120958X |
WASHER Price: Call Us |
| 84 |
144394 |
SUB= 156084 Price: Call Us |
| 85 |
72140618 |
BOLT RDHD 3/8-16 Price: Call Us |
| 111 |
140353 |
SUB= 155197 Price: Call Us |
| 112 |
132262 |
SUB= 155198 Price: Call Us |
| 113 |
17490512 |
SCREW Price: Call Us |
| 114 |
73510500 |
NUT Price: Call Us |
| 115 |
72110504 |
SUB= 872110504 Price: Call Us |
| 116 |
146851 |
BOLT.SHOULDER Price: Call Us |
| 117 |
146850 |
WHEEL.GUAGE.MED. Price: Call Us |
| 118 |
73930600 |
LOCKNUT Price: Call Us |
| 119 |
19121414 |
WASHER Price: Call Us |
| 121 |
143723 |
BRACKET.EXTRD.GWL Price: Call Us |
| 128 |
153390 |
WASHER.FELT. Price: Call Us |
| 130794 |
MANDREL |
ASM Price: Call Us 130794 |
