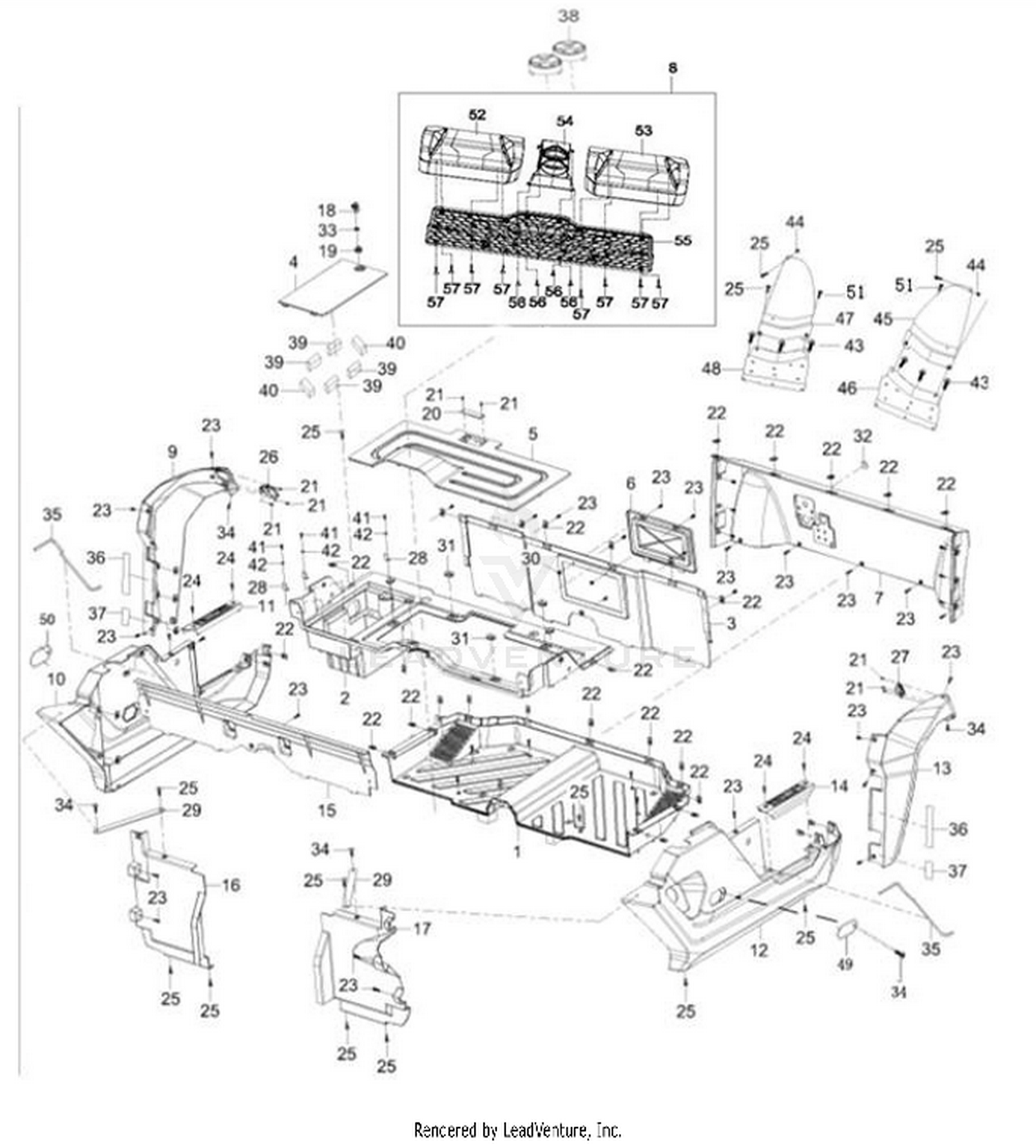

| Ref | Part Number | Description |
|---|
| 1 |
503-01705 |
FOOT REST Price: $268.45 |
| 2 |
503-01706 |
SEAT SUPPORT I Not Available Price: |
| 3 |
503-02922 |
SEAT BOX PANEL Price: $70.37 |
| 4 |
503-01708 |
BATTERY COVER Price: $25.66 |
| 5 |
503-01709 |
ENGINE COVER Not Available Price: |
| 6 |
503-01710 |
COVER - BATTERY BOX Not Available Price: |
| 7 |
503-01711A |
FRONT PANEL FOOTREST Price: $160.84 |
| 8 |
503-03584A |
SEAT BASE Price: $984.95 |
| 9 |
503-01713 |
SIDE PANEL - FRONT LEFT Price: $60.14 |
| 10 |
503-01714 |
SIDE PANEL - MIDDLE LEFT Price: $153.23 |
| 11 |
503-01939 |
SIDE PROTECTOR - LEFT (BLACK) Not Available Price: |
| 12 |
503-03776 |
SIDE PANEL (MID) (RH) Price: $106.55 |
| 13 |
503-01717 |
SIDE PANEL - FRONT RIGHT (SILVER) Price: $60.14 |
| 14 |
503-01940 |
SIDE PROTECTOR - RIGHT (BLACK) Not Available Price: |
| 15 |
503-01719 |
SEATING PROTECTOR Not Available Price: |
| 16 |
503-01720 |
REAR MUDGUARD II Not Available Price: |
| 17 |
503-01721 |
REAR FENDER Price: $63.03 |
| 18 |
503-01722 |
LOCK - BATTERY BOX COVER Price: $3.67 |
| 19 |
503P02793 |
RUBBER BATTERY COVER GROMMET Price: $4.06 |
| 20 |
503-01723 |
LOCK - ENGINE COVER Not Available Price: |
| 21 |
503-01680 |
SCREW - CROSS HEAD SELF TAPPING Not Available Price: |
| 22 |
503-01702 |
CLAMP NUT M6X6 Price: $6.24 |
| 23 |
503-00129 |
SOCKET HEX FLAT HEAD BOLT M6X16 Price: $5.36 |
| 24 |
503-01724 |
HEX HEAD FLANGE BOLT M6X20 Price: $3.71 |
| 25 |
503-00091 |
SCREW M6X16 Price: $5.48 |
| 26 |
503-01725 |
TURN LIGHT - FRONT LEFT Price: $114.64 |
| 27 |
503-01726 |
TURN LIGHT - FRONT RIGHT Price: $114.64 |
| 28 |
503-01727A |
STARTER RELAY BRACKET Price: $2.92 |
| 29 |
503-01728 |
SIDE PLATE SUPPORT I Not Available Price: |
| 30 |
503-01979 |
HEX FLANG NUT M6 Price: $3.94 |
| 31 |
503-02844 |
RUBBER WASHER Price: $3.61 |
| 32 |
503-01729 |
BRAKE PEDAL DUST PAD Price: $3.67 |
| 33 |
503-00478 |
FLAT WASHER 15x22x1 Price: $1.11 |
| 34 |
503-01703 |
HEX HEAD CAP SCREW M6X16 Price: $3.71 |
| 35 |
503-01730 |
DOOR SEAL 1 Not Available Price: |
| 36 |
503-01731 |
DOOR SEAL 2 Price: $118.24 |
| 37 |
503-01732 |
DOOR SEAL 3 Not Available Price: |
| 38 |
503-01733 |
CUP HOLDER Price: $16.17 |
| 39 |
503-03025 |
BATTERY PAD 90x50x15 Price: $0.92 |
| 40 |
503-03026 |
BATTERY PAD 90x50x15 Price: $1.24 |
| 41 |
503-02290 |
CROSS RECESSED BOLT & WASHER ASM Price: $3.19 |
| 42 |
503-03044 |
PLAIN FLAT WASHER Price: $2.82 |
| 43 |
503-00011 |
HEXAGON FLANGE BOLT M6X16 Price: $5.48 |
| 44 |
503-01590 |
LOCK NUT M6 Price: $4.42 |
| 45 |
503-02768 |
FENDER GUARD BRACKET (UPPER RH) Price: $35.94 |
| 46 |
503-02767 |
FENDER GUARD BRACKET (LOWER RH) Price: $34.87 |
| 47 |
503-02766 |
FENDER GUARD BRACKET (LOWER LH) Price: $35.94 |
| 48 |
503-02765 |
FENDER GUARD BRACKET (UPPER LH) Price: $34.87 |
| 49 |
503-02306 |
ROCK SLIDER MOUNT COVER (RH) Price: $2.29 |
| 50 |
503-02305 |
ROCK SLIDER MOUNT COVER (LH) Price: $2.29 |
| 51 |
503-00140 |
SCREW M6X12 Price: $5.48 |
| 52 |
503-03705A |
SEAT BASE PAD (RH) Price: $401.62 |
| 53 |
503-03704A |
SEAT BASE PAD (LH) Price: $401.62 |
| 54 |
503-02929 |
CENTER CONSOLE Price: $37.88 |
| 55 |
503-02930A |
BENCH SEAT BASE PAN Price: $118.24 |
| 56 |
503-00140 |
SCREW M6X12 Price: $5.48 |
