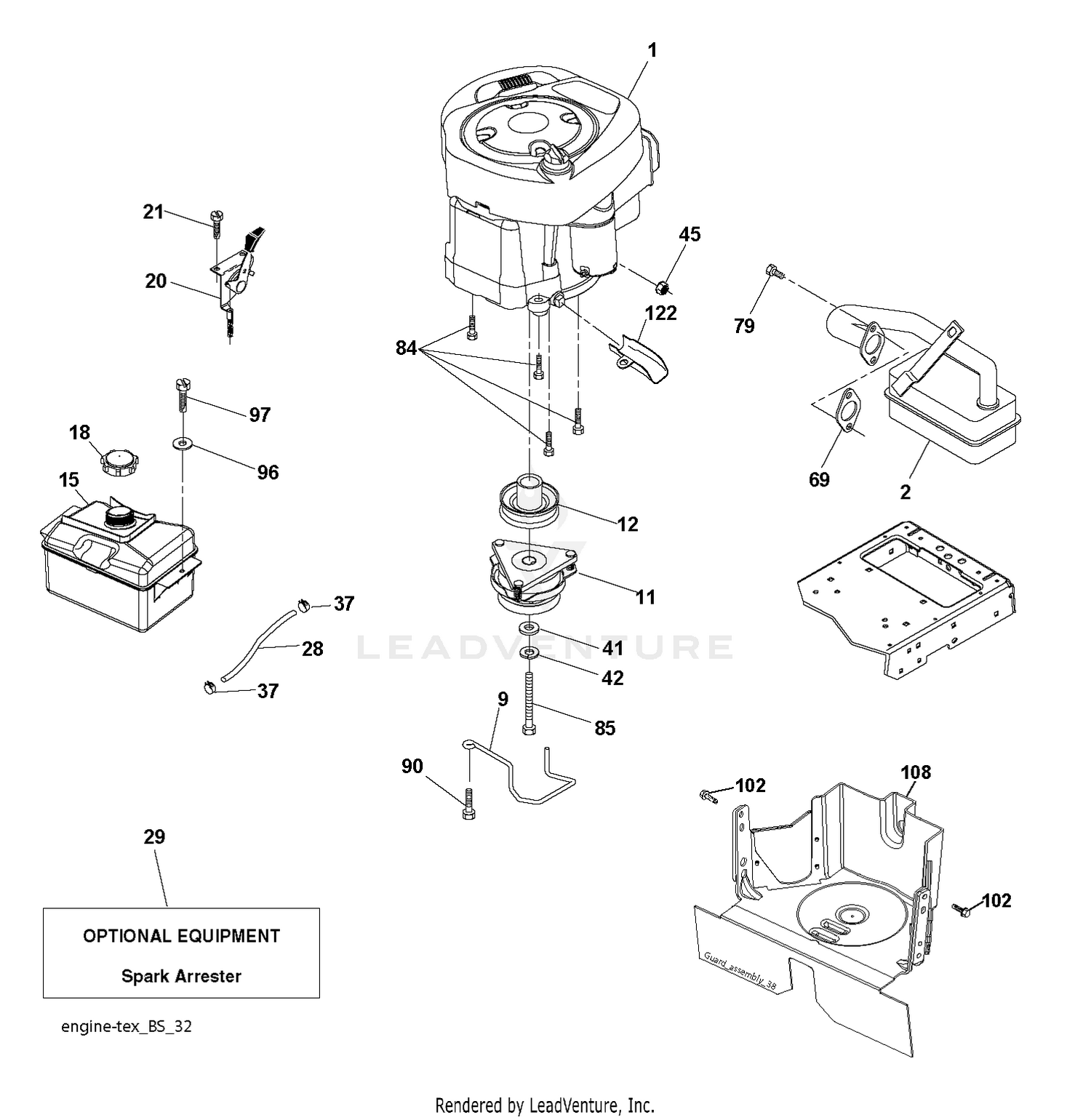

| Ref | Part Number | Description |
|---|
| 2 |
532179758 |
MUFFLER.B&S.MODEL.21.11HP.OHV Price: $69.99 |
| 9 |
532194319 |
KEEPER.BELT.ENGINE.3.25 (3 2) Price: $11.99 |
| 10 |
127-0495 |
STARTER ASM Price: $920.85 |
| 11 |
583389701 |
KIT.SVC.CLUTCH.ELE.180505 This part replaces 532180505. Price: $299.99 |
| 12 |
532194338 |
PULLEY.ASM.ENG.OGURA.3 Price: $54.99 |
| 15 |
581289901 |
FUEL.TANK.ASM.NON-EPA This part replaces 532407545. Price: $44.99 |
| 18 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532430220. Price: $22.99 |
| 20 |
100-2181 |
STARTER YOKE ASM Price: $102.34 |
| 20 |
532176636 |
CONTROL.TH/CK.C.BLACK This part replaces 532183897. Price: $27.99 |
| 21 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 28 |
587044820 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532137040. Price: $9.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 30 |
100-2222 |
HOLDER ASM Price: $23.90 |
| 35 |
127-0415 |
SPRING-BRUSH Price: $4.65 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 40 |
100-2182 |
ARMATURE ASM Price: $204.81 |
| 41 |
532126197 |
WASHER Price: $6.99 |
| 42 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 45 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 45 |
98-9412 |
BEARING-BALL Price: $14.99 |
| 47 |
98-9411 |
BEARING-BALL Price: $14.99 |
| 50 |
100-2185 |
STARTER CLUTCH ASM Price: $148.04 |
| 60 |
127-0490 |
STARTER HOUSING ASM Price: $198.30 |
| 69 |
532272293 |
GASKET.ENG.1.313 ID.TIN PLATED This part replaces 532165291. Price: $8.99 |
| 70 |
100-2183 |
BEARING Price: $2.78 |
| 79 |
596134201 |
Screws This part replaces 532192334. Price: $2.99 |
| 80 |
127-0449 |
FRAME ASM Price: $122.82 |
| 84 |
817060620 |
SCREW.3/8-16 Price: $5.99 |
| 85 |
501606501 |
BOLT.HEX.7/16-20X4.GR5.1.5BLUE This part replaces 532173937. Price: $2.99 |
| 90 |
100-2213 |
COVER Price: $5.38 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 96 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 97 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
| 100 |
100-2223 |
BEARING ASM Price: $19.21 |
| 102 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 105 |
127-0414 |
BEARING Price: $4.84 |
| 108 |
583471901 |
COVER.PULLEY.ENGINE.SRD.FRENCH This part replaces 532431689. Price: $84.99 |
| 110 |
100-2187 |
STARTER SHAFT ASM Price: $40.93 |
| 120 |
100-2220 |
GEAR Price: $24.46 |
| 130 |
100-2221 |
GEAR Price: $66.83 |
| 135 |
98-7750 |
SPRING-BRUSH Price: $2.38 |
| 140 |
100-2218 |
LEVER Price: $7.56 |
| 150 |
127-0448 |
SWITCH-MAGNETIC Price: $250.65 |
| 160 |
100-2219 |
RING-SNAP Price: $9.60 |
| 165 |
112-2833 |
GEAR-PINION Price: $123.77 |
| 170 |
100-2212 |
RING-SNAP Price: $5.84 |
| 180 |
100-2216 |
COLLAR Price: $14.55 |
| 190 |
100-2224 |
WASHER-PLAIN Price: $5.80 |
| 200 |
100-2225 |
WASHER-PLAIN Price: $2.44 |
| 210 |
100-2226 |
WASHER-PLAIN Price: $2.44 |
| 220 |
100-2227 |
PLATE Price: $14.26 |
| 230 |
99-8371 |
NUT-HEX Price: $3.75 |
| 240 |
100-1813 |
NUT Price: $2.05 |
| 250 |
100-2210 |
BOLT-THROUGH Price: $3.71 |
