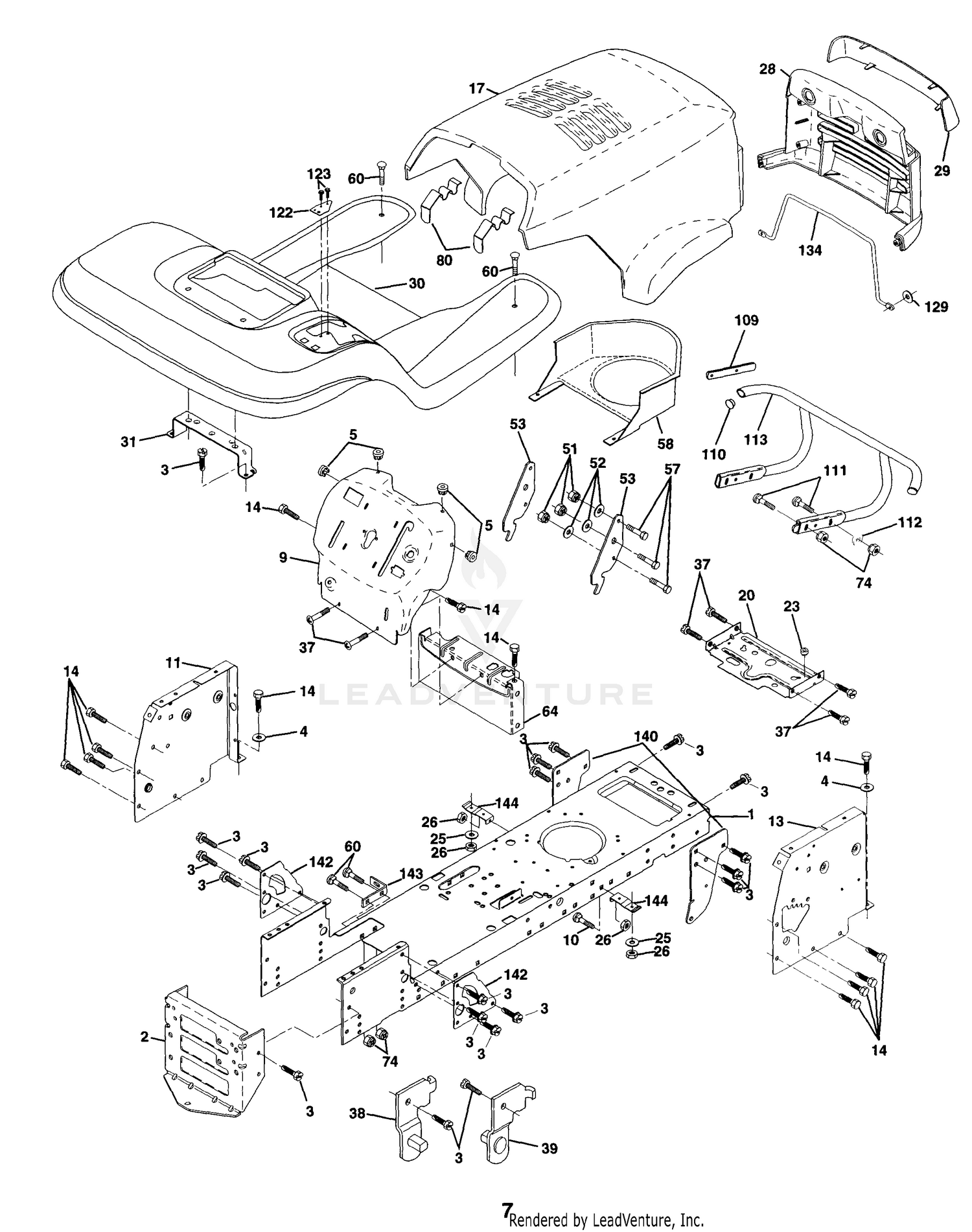

| Ref | Part Number | Description |
|---|
| 1 |
322-1 |
SCREW-HH Price: $0.22 |
| 1 |
532160525 |
CHASSIS KIT This part replaces 532153871. Price: $88.41 |
| 2 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 2 |
532145009 |
KIT.DRAWBAR.SERVICE This part replaces 532140356. Price: $44.99 |
| 3 |
115-3259 |
KIT-SERVICE, PIN This part replaces 10-6110. Price: $39.21 |
| 3 |
534200501 |
BOLT HEX PATCH 3/8-16X3/4 This part replaces 817490612. Price: $1.99 |
| 4 |
819131216 |
Washer 13/32 x 3/4 x 16 Ga. Price: $2.99 |
| 4 |
HY4486 |
NUT UNF 1/2"NYLOC EXT THIN5/16 This part replaces 283-8. Price: $1.36 |
| 5 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 5 |
532154794 |
DASH/SILKSCREENED This part replaces 532156490. Price: $21.07 |
| 6 |
105-3822 |
HYD CYLINDER ASM This part replaces 99-8159. Price: $533.45 |
| 7 |
140-5248 |
PIN-PIVOT RAM, WELDED This part replaces 10-6060. Price: $25.64 |
| 8 |
302-60 |
FITTING-GREASE Price: $2.26 |
| 9 |
10-8110 |
WASHER-THRUST Price: $1.09 |
| 9 |
532154794 |
DASH/SILKSCREENED This part replaces 532156490. Price: $21.07 |
| 10 |
5-1226 |
WASHER Price: $3.90 |
| 10 |
596728201 |
Bolts This part replaces 872140608. Price: $3.99 |
| 11 |
125-5196 |
BUSHING This part replaces 3-0348. Price: $6.00 |
| 11 |
532174996 |
PANEL.DASH.LH.LTX This part replaces 532155927. Price: $9.99 |
| 12 |
10-7820 |
PIVOT HINGE ASM Price: $504.57 |
| 13 |
137-9706 |
DECAL-WARNING This part replaces 93-8064. Price: $4.48 |
| 13 |
532153913 |
PANEL Price: $7.99 |
| 14 |
11-0160 |
ROLLER SHAFT SCREW ASM Price: $28.16 |
| 14 |
596564001 |
Bolts This part replaces 817490608. Price: $2.99 |
| 15 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 16 |
3-1506 |
BUSHING Price: $2.42 |
| 17 |
138-6311 |
ARM-PULL-ASSEMBLY-LH This part replaces 92-0586. Price: $29.91 |
| 17 |
532156051 |
HOOD - LT/YT Price: $549.99 |
| 18 |
3290-317 |
WASHER-SPRING Price: $1.40 |
| 19 |
138-6303 |
ARM-PULL-ASSEMBLY-RH This part replaces 92-0585. Price: $29.91 |
| 20 |
133-2337 |
ROLLER ASM This part replaces 52-2720. Price: $176.14 |
| 20 |
532180679 |
PLATE MTG.BATTERY/FUEL TANK This part replaces 532156437. Price: $9.99 |
| 21 |
21-8470 |
SHAFT-ROLLER Price: $62.10 |
| 22 |
133-2378 |
BEARING This part replaces 251-141. Price: $23.28 |
| 23 |
3220-3 |
NUT-HJ Price: $0.28 |
| 23 |
532124028 |
BUSHING.SNAP.NYL.BLK. Price: $4.99 |
| 24 |
136-8484 |
FRAME-PULL, LH This part replaces 92-9176. Price: $382.66 |
| 25 |
147-3120 |
BALL JOINT RECEIVER ASM This part replaces 99-1460. Price: $16.35 |
| 25 |
596134901 |
GSPH This part replaces 819131312. Price: $2.99 |
| 26 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 27 |
99-1461 |
SLEEVE-JOINT, BALL Price: $15.37 |
| 28 |
532156880 |
GRILLE.LT.P/L HUSQVARNA.SERVIC This part replaces 532149776. Price: $256.99 |
| 29 |
532149777 |
LENS LT/PL HUSQVARNA Price: $24.99 |
| 29 |
62-2460 |
LIFT ARM ASM Price: $130.13 |
| 30 |
532192813 |
FENDER W/OUT CUP HOLDER This part replaces 532156489. Price: $125.54 |
| 30 |
94-5586-01 |
BAR ASM-LIFT, LH ARM This part replaces 94-5586. Price: $131.34 |
| 31 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 31 |
532139976 |
BRACKET.SUPPORT.FENDER Price: $14.99 |
| 32 |
57-7650 |
SPRING-TORSION Price: $11.81 |
| 33 |
63-8750 |
PIN-PIVOT Price: $4.20 |
| 34 |
302-2 |
FITTING-GREASE Price: $1.89 |
| 35 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 36 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 37 |
131-4295 |
PIN-PIVOT This part replaces 10-6090. Price: $51.39 |
| 37 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 38 |
237-78 |
O-RING Price: $3.85 |
| 38 |
532139886 |
BRACKET LH PIVOT Price: $6.99 |
| 39 |
532139887 |
BRACKET RH PIVOT Price: $6.99 |
| 39 |
63-3850 |
HOSE ASM Price: $83.26 |
| 51 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 873800400. Price: $1.99 |
| 52 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 53 |
532150067 |
BRACKET PNT PICK OFF LT/PL Price: $1.64 |
| 57 |
596230901 |
Screws This part replaces 874780412. Price: $2.99 |
| 58 |
532150127 |
AIR DUCT P/L/LT Price: $13.99 |
| 60 |
872140606 |
Bolt Rdhd Sqnk 3/8-16unc x 3/4 Price: $4.99 |
| 64 |
532154798 |
DASH LOWER Price: $17.99 |
| 74 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 80 |
532155854 |
LATCH HOOD Price: $3.99 |
| 109 |
532170310 |
BUMPER BRACKET This part replaces 532141461. Price: $4.99 |
| 110 |
523143679 |
Plug Plastic Price: Call Us |
| 111 |
872140612 |
Belt Rdhd 3/8-16 UNC x 1-1/2 Price: $2.99 |
| 112 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 113 |
532170311 |
BUMPER ASM. This part replaces 532150300. Price: $127.99 |
| 129 |
596582301 |
Washers This part replaces 819091016. Price: $2.99 |
| 134 |
532150132 |
ROD SUPPORT HOOD LT/PL HUSQ Price: $7.99 |
| 140 |
532158418 |
BRACKET SUSPENSION FRONT This part replaces 532150556. Price: $7.99 |
| 142 |
532175702 |
PLATE REINFORCEMENT This part replaces 532156095. Price: $7.99 |
| 143 |
532186689 |
BRACKET, SWAYBAR CHASSIS This part replaces 532154966. Price: $5.99 |
| 144 |
532175582 |
BRKT, FOOT REST This part replaces 532154207. Price: $4.99 |
