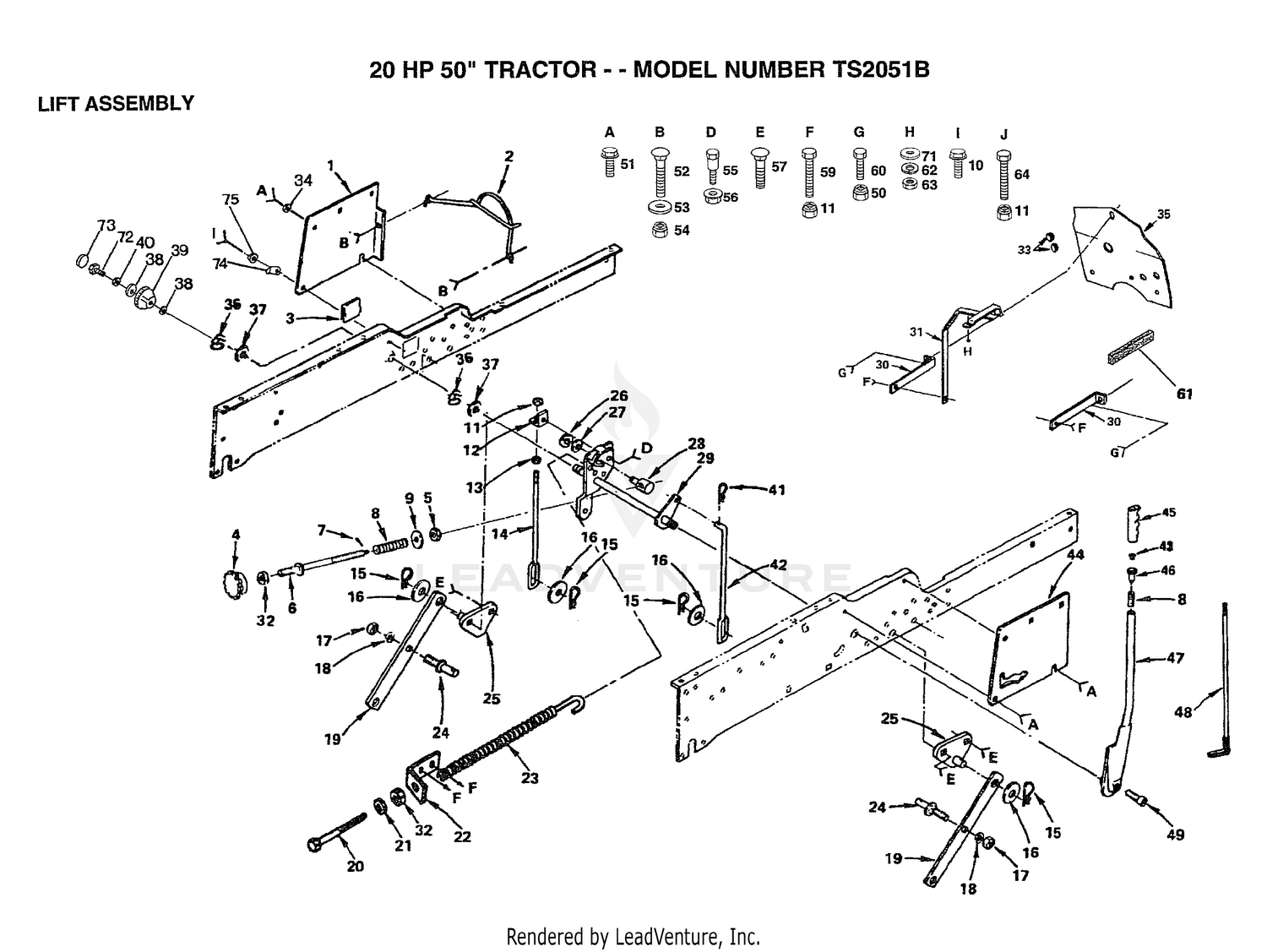

20HP 50"/LIFT ASSEMBLY

20HP 50"/LIFT ASSEMBLY

Parts (85)

RefPart NumberDescription
1 121046X SUB= 532121046 Price: Call Us
1 92-4846 DISCONTINUED Price: Call Us
2 325-7 SCREW-HH Price: $1.53
3 121794X COVER ACCESS Price: Call Us
3 93-0075 HOSE ASM Price: $56.71
4 138057 KNOB INF 3/8-16 Price: Call Us
4 354-72 FITTING-HYD Price: $43.97
5 110807X NUT T Price: Call Us
5 340-3 FITTING-STRAIGHT Price: $10.42
6 110811X ROD ADJ. T Price: Call Us
6 93-0076 HOSE ASM Price: $70.73
7 3296-23 NUT-LOCK, NI Price: $0.52
7 76020308 SUB= 3145 Price: Call Us
8 2876H SPRING T Price: Call Us
9 19131016 WASHER Price: Call Us
9 354-77 FITTING-QUICK Price: $55.94
10 17490612 SCREW Price: Call Us
10 354-79 CAP-DUST Price: $7.81
11 73800600 NUT Price: Call Us
11 75-4720 FITTING-ELBOW 90 SPCL Price: $147.41
12 2412-129 CLAMP-HOSE Price: $2.10
12 7594J BRACKET T Price: Call Us
13 73220600 NUT.HEX.3/8-16UNC Price: Call Us
13 75-6350 HOSE Price: $56.14
14 7596J LINK-LIFT MOW T Price: Call Us
15 75-6340 FILTER, IN-LINE This part replaces 75-6340-03. Price: $92.00
15 9135R SPRING H Price: Call Us
16 19171616 WASHER Price: Call Us
16 354-75 FITTING-HYD, 90 DEG Price: $46.93
17 110-4146 FILTER-HYD This part replaces 75-1330. Price: $40.79
17 73220800 NUT Price: Call Us
18 10040800 LOCKWASHER Price: Call Us
18 323-12 SCREW-HH Price: $1.14
19 105429X SUSPENSION ARM GT Price: Call Us
19 3253-21 WASHER-LOCK Price: $0.28
20 5328J BOLT-ADJ SPRING T Price: Call Us
20 75-0012 TRANSMISSION Price: $5,165.26
21 19131316 WASHER Price: Call Us
21 3296-39 NUT-LOCK, NI Price: $2.29
22 237-161 O-RING Price: $6.06
22 5329J SUB= 143363 Price: Call Us
23 674A247 SUB= 918674A247 Price: Call Us
23 86-7220 GEAR-PINION Price: $81.33
24 105413X PIVOT STUD GT Price: Call Us
24 32151-62 RING-RETAINING Price: $1.49
25 105501X SUSP BRACKET T Price: Call Us
26 12000037 KLIP RING Price: Call Us
27 19151216 WASHER Price: Call Us
28 110810X TRUNION LT Price: Call Us
29 124217X SHAFT ASS'Y LIFT Price: Call Us
30 110903X BRACKET T Price: Call Us
31 128141 SUB= 532128141 Price: Call Us
32 73350600 NUT Price: Call Us
33 110436X SUB= 9151R Price: Call Us
34 11050600 LOCKWASHER Price: Call Us
36 12000022 E-RING Price: Call Us
37 19292016 WASHER Price: Call Us
38 19112410 WASHER Price: Call Us
39 123934X HEIGHT INDICATOR Price: Call Us
40 10040500 LOCKWASHER Price: Call Us
41 4939M SUB= 85902 Price: Call Us
42 105503X LIFT LINK RH T Price: Call Us
43 124526X SUB= 125925X Price: Call Us
44 121045X SUB= 532121045 Price: Call Us
45 109413X GRIP Price: Call Us
46 122364X SUB= 125925X Price: Call Us
47 121002X363 SUB= 123096X Price: Call Us
48 121006X LEVER ROD LT Price: Call Us
50 73800400 NUT Price: Call Us
51 17490608 SCREW LT Price: Call Us
52 72140508 BOLT Price: Call Us
53 19111610 WASHER Price: Call Us
54 73800500 NUT Price: Call Us
55 7901J SHOULDER BOLT T Price: Call Us
56 73900400 NUT T Price: Call Us
57 17490612 SCREW Price: Call Us
59 74760616 BOLT Price: Call Us
60 74780408 BOLT Price: Call Us
61 109458X FOAM STRIP T Price: Call Us
62 10090400 SUB= 10040400 Price: Call Us
63 73220400 SUB= 50675 Price: Call Us
64 74760620 Bolt Fin Flex 3/8-16unc X 1-1/4 Price: Call Us
71 19091216 WASHER PM Price: Call Us
72 74780516 SUB= 77394 Price: Call Us
74 123933X505 POINTER HGT IND Price: Call Us
