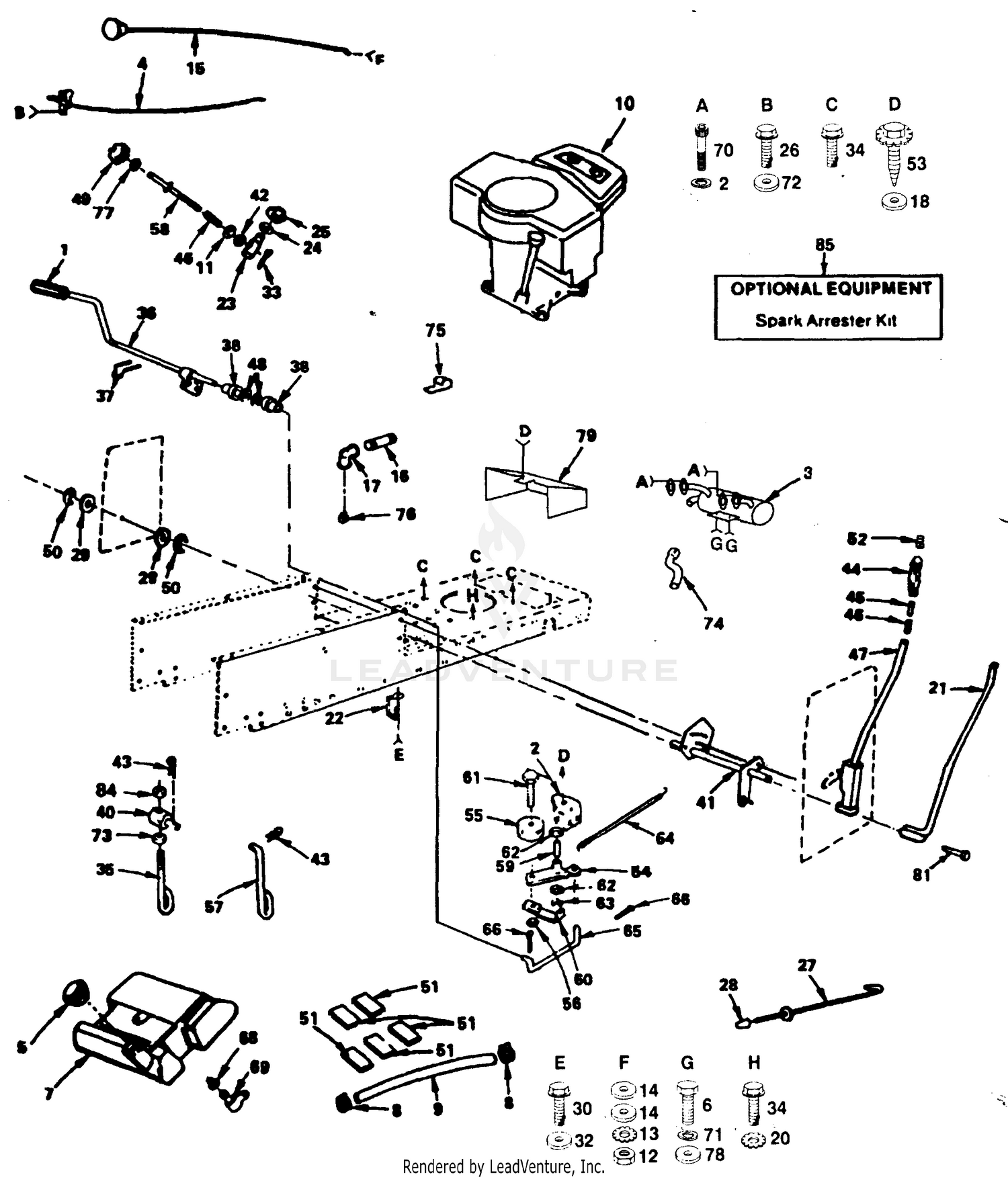

| Ref | Part Number | Description |
|---|
| 1 |
532008883 |
PEDAL COVER This part replaces 532124872. Price: $3.99 |
| 1 |
66-6370 |
LIFT ARM ASM This part replaces 21-3100. Price: $430.43 |
| 2 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 2 |
810040500 |
Washer, Lock, Heavy Helical Spring (AYP part number) Price: $2.99 |
| 3 |
32136-2 |
NUT-SHH Price: $3.55 |
| 3 |
532125890 |
Muffler (AYP part number) Price: $3.33 |
| 4 |
21-3020-01 |
MOUNT-BALLJOINT, RH This part replaces 21-3020. Price: $178.87 |
| 4 |
532132748 |
CONTROL.THROT.RH.BLK.FLG.44.75 This part replaces 532122927. Price: $22.99 |
| 5 |
21-1830 |
SPRING-EXTENSION Price: $34.62 |
| 5 |
532123549 |
Cap, Fuel (AYP part number) Price: $11.99 |
| 6 |
3256-25 |
WASHER-FLAT Price: $0.25 |
| 6 |
874760410 |
Bolt, Fin. Hex 1/4-20 x 5/8 (AYP part number) Price: $3.99 |
| 7 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 7 |
532106020 |
Tank, Fuel (AYP part number) Price: $55.00 |
| 8 |
3296-48 |
NUT-LOCK, NI Price: $0.37 |
| 8 |
532123487 |
Clamp, Hose (AYP part number) Price: $3.99 |
| 9 |
532008542 |
Line, Fuel (AYP part number) Price: $4.99 |
| 9 |
66-7150 |
ARM-PUSH, RH This part replaces 21-2910. Price: $536.26 |
| 10 |
3272-24 |
PIN-COTTER Price: $0.54 |
| 10 |
532124191 |
Engine, Kohler Price: Call Us |
| 11 |
5-3505-01 |
PIN This part replaces 5-3505. Price: $74.63 |
| 11 |
819131016 |
Washer 13/32 x 5/8 x 16 Gauge (AYP part number) Price: $3.99 |
| 12 |
5-1754 |
WASHER-FLAT Price: $2.17 |
| 12 |
873680600 |
LOCKNUT This part replaces 873610600. Price: $1.99 |
| 13 |
256-126 |
BUSHING Price: $9.36 |
| 13 |
539990118 |
SLW 3/8 STD This part replaces 811050600. Price: $1.99 |
| 14 |
3272-33 |
PIN-COTTER Price: $0.54 |
| 14 |
819131316 |
Washer 13/32 x 13/16 x 16 Gauge (AYP part number) Price: $2.99 |
| 15 |
23-1950-01 |
SUPPORT-REINFORCEMENT This part replaces 23-1950. Price: $69.64 |
| 15 |
532124049 |
Control, Choke (AYP part number) Price: $3.33 |
| 16 |
324-5 |
SCREW-HH Price: $0.54 |
| 16 |
813280336 |
Pipe Nipple, Standard (AYP part number) Price: Call Us |
| 17 |
3-7292 |
PIN-CLEVIS Price: $44.11 |
| 17 |
532428287 |
VALUE.OIL.DRAIN This part replaces 813200300. Price: $11.99 |
| 18 |
5-3126 |
PIN-LYNCH Price: $0.73 |
| 18 |
819060916 |
Washer (AYP part number) Price: $3.33 |
| 19 |
3241-7 |
SCREW-SQH This part replaces 324-12. Price: $3.39 |
| 20 |
21-3750 |
SUPPORT PLT Price: $14.42 |
| 20 |
539990118 |
SLW 3/8 STD This part replaces 811050600. Price: $1.99 |
| 21 |
21-2860-01 |
PUSH ARM BRACKET ASM This part replaces 21-2860. Price: $154.46 |
| 21 |
532121006 |
Rod Assembly, Lever (AYP part number) Price: $19.99 |
| 22 |
32121-84 |
PIN-SPIRAL Price: $1.29 |
| 22 |
532123788 |
Retainer, Belt, Chassis, Center (AYP part number) Price: $2.99 |
| 23 |
21-2990 |
SHAFT-PIVOT Price: $227.21 |
| 23 |
532110810 |
Trunnion, Stop, Depth Price: $14.99 |
| 24 |
302-33 |
FITTING-GREASE Price: $2.31 |
| 24 |
819151216 |
Washer 15/32 x 3/4 x 16 Gauge (AYP part number) Price: Call Us |
| 25 |
21-2960 |
ARM-PUSH, LH Price: $519.38 |
| 25 |
812000037 |
Ring, Klip (AYP part number) Price: $3.99 |
| 26 |
21-2900-01 |
SPRING-TORSION, LH This part replaces 21-2900. Price: $566.83 |
| 26 |
817080408 |
Screw, Hex Wsh. Hd., Thd. Cut. 1/4-20 x 1/2 (AYP part number) Price: $2.99 |
| 27 |
21-2890-01 |
SPRING-TORSION, RH This part replaces 21-2890. Price: $566.83 |
| 27 |
532133261 |
Rod Brake Parking (AYP part number) This part replaces 532125637. Price: $3.99 |
| 28 |
324-6 |
SCREW-HH Price: $0.81 |
| 28 |
532071673 |
Cap, Plunger (AYP part number) Price: $3.99 |
| 29 |
21-3050-01 |
LH BALL JOUNT MOUNT ASM This part replaces 21-3050. Price: $153.41 |
| 29 |
819292016 |
Washer 29/32 x 1-1/4 x 16 Gauge (AYP part number) Price: $3.99 |
| 30 |
86-8100-01 |
BALL JOINT ASM This part replaces 21-0160. Price: $137.53 |
| 30 |
874780612 |
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 (AYP part number) This part replaces 817490612. Price: $3.99 |
| 31 |
302-2 |
FITTING-GREASE Price: $1.89 |
| 32 |
21-3000-01 |
NUT-JAM, PUSH ARM This part replaces 21-3000. Price: $37.02 |
| 32 |
819131316 |
Washer 13/32 x 1-3/16 x 16 Gauge (AYP part number) Price: $2.99 |
| 33 |
61-3610 |
WARNING DECAL This part replaces 21-3970. Price: $16.67 |
| 33 |
876020308 |
Pin, Cotter 3/32 x 1/2 (AYP part number) Price: $1.99 |
| 34 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 34 |
874930624 |
Bolt, Hex Head 3/8-16 UNC x 1-1/2 (AYP part number) This part replaces 817490624. Price: $3.99 |
| 35 |
5-2942 |
SHACKLE Price: $16.99 |
| 35 |
532110448 |
Lift, Link, Adjustable (AYP part number) Price: $7.99 |
| 36 |
283-10 |
PIN-CLEVIS Price: $7.43 |
| 36 |
532122424 |
Shaft, Pedal, Foot (AYP part number) Price: $21.56 |
| 37 |
532001572 |
Pin, Roll, 3/16 x 1 (AYP part number) This part replaces 532124963. Price: $3.99 |
| 38 |
532120183 |
Bearing, Nylon (AYP part number) Price: $2.99 |
| 40 |
532110447 |
Trunnion, Lift (AYP part number) Price: $9.99 |
| 41 |
532121000 |
Shaft Assembly, Lift (AYP part number) Price: $119.99 |
| 42 |
532110807 |
Nut, Hex, Special (AYP part number) Price: $3.99 |
| 43 |
532124670 |
Retainer, Spring (AYP part number) Price: $5.99 |
| 44 |
532109413 |
Grip, Handle (AYP part number) Price: $2.99 |
| 45 |
532125925 |
PLUNGER BUTTON KIT This part replaces 532122364. Price: $5.99 |
| 46 |
532002876 |
SPRING This part replaces 532124874. Price: $3.99 |
| 48 |
819211616 |
Washer 21/32 x 1 x 16 Gauge (AYP part number) Price: $3.99 |
| 49 |
532121891 |
Handle, Adjust, Lift (AYP part number) Price: $3.99 |
| 50 |
812000022 |
E-Ring (AYP part number) Price: $3.99 |
| 51 |
532106082 |
Pad, Spacer (AYP part number) Price: $2.99 |
| 52 |
532125925 |
PLUNGER BUTTON KIT This part replaces 532122365. Price: $5.99 |
| 53 |
532161464 |
SCREW.HEX.WS.HD.8-18 X 7/8 This part replaces 817030808. Price: $3.99 |
| 54 |
532123789 |
Arm Assembly, Idler (AYP part number) Price: $13.07 |
| 55 |
532139245 |
Pulley, Idler V Groove (AYP part number) This part replaces 532123766. Price: $22.99 |
| 56 |
873680600 |
Nut, Crownlock 3/8-16 Price: $1.99 |
| 57 |
532110029 |
Link, Lift (AYP part number) Price: $3.45 |
| 58 |
532110729 |
Rod, Adjust, Lift (AYP part number) Price: $18.99 |
| 59 |
532105706 |
Bearing (AYP part number) Price: $3.99 |
| 60 |
532123205 |
Retainer, Belt (AYP part number) Price: $3.99 |
| 61 |
874930624 |
Bolt, Hex Head 3/8-16 UNC x 1-1/2 (AYP part number) This part replaces 874760624. Price: $3.99 |
| 62 |
532110812 |
Washer, Hardened (AYP part number) Price: $3.10 |
| 63 |
812000039 |
Ring, Klip (AYP part number) Price: $3.99 |
| 64 |
532105709 |
Spring, Return, Clutch (AYP part number) Price: $7.99 |
| 65 |
532199652 |
LINK.CLUTCH.7.66.2005 This part replaces 532105710. Price: $8.99 |
| 66 |
876020412 |
Pin, Cotter 1/8 x 3/4 (AYP part number) Price: $3.99 |
| 68 |
532003645 |
BUSHING OUTLET T This part replaces 532124952. Price: $2.99 |
| 69 |
532008710 |
Fuel Tank Stem (AYP part number) This part replaces 532124951. Price: $2.52 |
| 70 |
874570512 |
Screw, Hex Socket Head 5/16-16 x 12 Gauge (AYP part number) Price: $3.99 |
| 71 |
810040400 |
Washer, Lock, Heavy Helical Spring 1/4 (AYP part number) Price: $3.99 |
| 72 |
819091016 |
WASHER This part replaces 532110457. Price: $2.99 |
| 73 |
873610700 |
NUT.ASF.HEX.7/16 This part replaces 873360700. Price: $3.99 |
| 74 |
532128144 |
Tube, Exhaust Price: $3.33 |
| 75 |
532122758 |
Clamp, Muffler (AYP part number) Price: $19.99 |
| 77 |
873220600 |
NUT.HEX.3/8-16UNC This part replaces 873350600. Price: $3.99 |
| 78 |
531003379 |
WASHER This part replaces 819091216. Price: $2.99 |
| 79 |
532125891 |
Heat Shield Price: $3.33 |
| 81 |
874930624 |
Bolt, Hex Head 3/8-16 UNC x 1-1/2 (AYP part number) This part replaces 874780624. Price: $3.99 |
| 84 |
873610700 |
NUT.ASF.HEX.7/16 This part replaces 873710700. Price: $3.99 |
