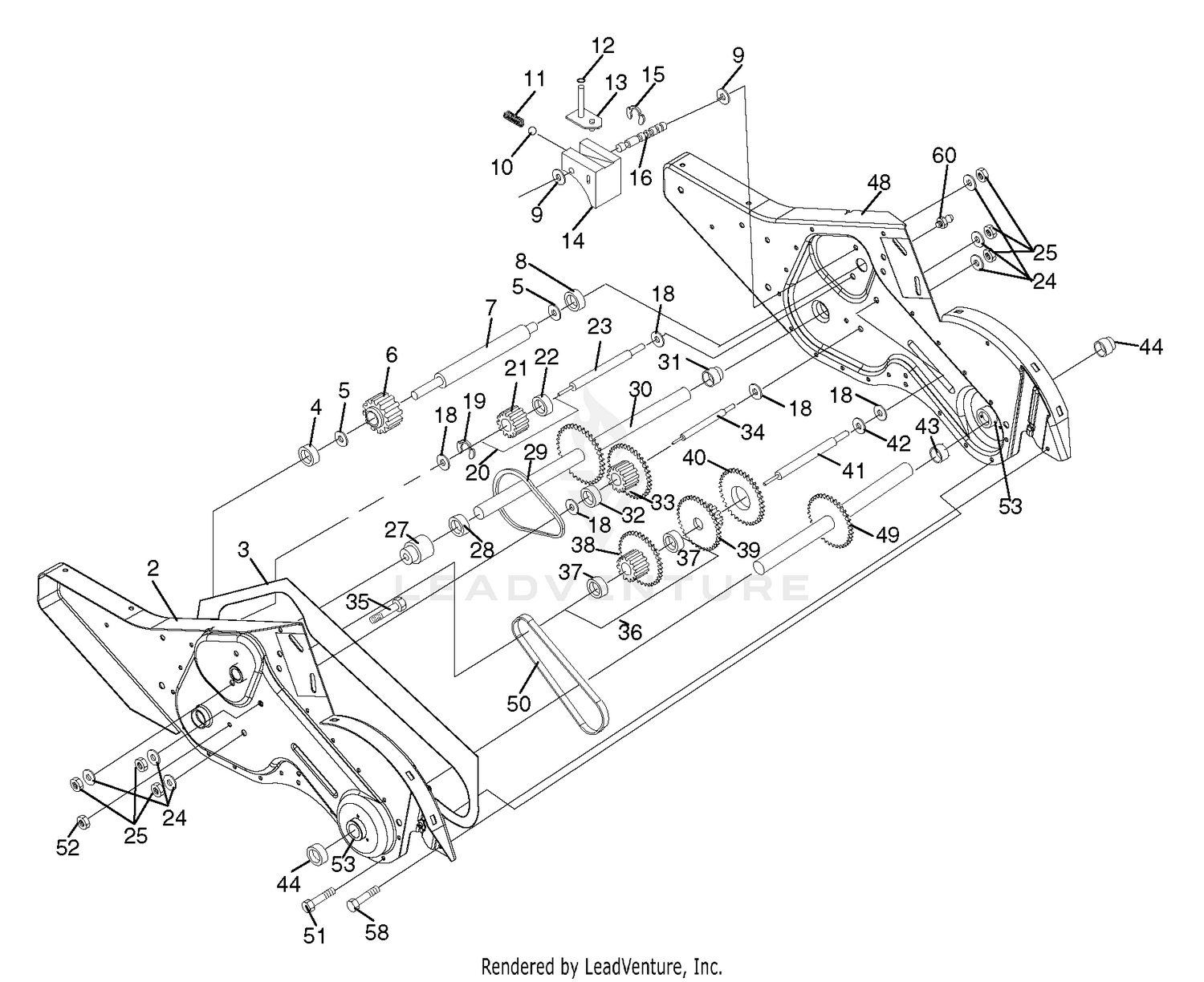

| Ref | Part Number | Description |
|---|
| 1 |
33118-160 |
Screw-HH Price: Call Us |
| 2 |
98-3333 |
Shaft-Thru Price: Call Us |
| 3 |
33028-00 |
NUT-LOCK, NI Price: $1.31 |
| 3 |
532431022 |
GASKET.GEARCASE.CRT/DRT.TILLER This part replaces 532161963. Price: $17.99 |
| 4 |
33098-00 |
WASHER-FLAT Price: $0.68 |
| 4 |
532005020 |
NEEDLE BRNG LT Price: $14.99 |
| 5 |
33114-016 |
SCREW-HH Price: $0.27 |
| 5 |
532001370 |
THRUST WASHER Price: $4.99 |
| 6 |
33094-00 |
WASHER-PLAIN Price: $0.25 |
| 6 |
586196301 |
PINION INPUT CRT TILLER This part replaces 532137335. Price: $22.99 |
| 7 |
532145101 |
SHAFT.INPUT."D".TILLER Price: $64.99 |
| 7 |
98-5449 |
BUSHING - FLANGE Price: Call Us |
| 8 |
3272-23 |
PIN-COTTER Price: $0.28 |
| 8 |
532004895 |
BEARING This part replaces 532124792. Price: $9.99 |
| 9 |
33095-00 |
WASHER-FLAT Price: $0.25 |
| 9 |
532154467 |
WASHER, SEAL (2 2) Price: $3.99 |
| 10 |
33115-030 |
SCREW-HH Price: $0.68 |
| 10 |
532100482 |
KIT.STEEL BALL(12 BALLS) This part replaces 532124697. Price: $4.99 |
| 11 |
33025-00 |
NUT-LOCK, NI Price: $0.54 |
| 11 |
532100371 |
SPRING-SHIFT CRT Price: $4.99 |
| 12 |
33113-016 |
SCREW-HH Price: $0.34 |
| 12 |
532106160 |
O-RING TI Price: $3.99 |
| 13 |
33013-00 |
NUT-HEX Price: $0.25 |
| 13 |
532142145 |
BRACKET ASM.SHIFT.CRT Price: $17.99 |
| 14 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 14 |
532008353 |
SHIFT FORK TI Price: $22.99 |
| 15 |
812000039 |
KLIP RING Price: $4.99 |
| 15 |
98-5465 |
DISCONTINUED Price: Call Us |
| 16 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 16 |
532154466 |
SHAFT.SHIFTER.TILLER Price: $5.99 |
| 17 |
98-5441 |
Cylinder-Hydraulic (Incl. Ref. #16) Price: $1,254.44 |
| 18 |
532004358 |
WASHER Price: $3.99 |
| 18 |
98-5501 |
DISCONTINUED Price: Call Us |
| 19 |
812000040 |
KLIP RING Price: $4.99 |
| 19 |
98-5634 |
SUPPORT - WELDED Price: Call Us |
| 21 |
532102115 |
GEAR-REV IDLR CRT Price: $22.99 |
| 21 |
98-5499 |
PIN Price: $66.00 |
| 22 |
532006803 |
NEEDLE BEARING TI Price: $7.99 |
| 22 |
98-5490 |
PIVOT STUD Price: $223.16 |
| 23 |
532102111 |
SHAFT CRT Price: $19.99 |
| 23 |
98-5502 |
ROLLER Price: $404.84 |
| 24 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 24 |
98-5504 |
BAR-SIDE Price: $246.18 |
| 25 |
86-1480 |
WASHER Price: $4.82 |
| 25 |
873610700 |
NUT.ASF.HEX.7/16 Price: $5.99 |
| 26 |
98-5494 |
PIN, WELDED Price: $91.88 |
| 27 |
532431219 |
BEARING.GROUND.DRIVE This part replaces 532143009. Price: $8.99 |
| 27 |
98-5496 |
A-FRAME, WELDED Price: $831.90 |
| 28 |
532106390 |
SPACER Price: $4.99 |
| 29 |
532102134 |
CHAIN CRT Price: $9.99 |
| 29 |
98-5493 |
PIN, WELDED Price: $108.80 |
| 30 |
237-78 |
O-RING Price: $3.85 |
| 30 |
532150737 |
GROUND SHAFT ASS'Y Price: $54.99 |
| 31 |
340-132 |
FITTING-ELBOW, 90 DEG Price: $24.64 |
| 31 |
532143008 |
BEARING, SHAFT RH CRT Price: $4.99 |
| 32 |
237-21 |
O-RING Price: $0.70 |
| 32 |
532106388 |
SPACER TI Price: $5.99 |
| 33 |
532102121 |
SPRCKT 8 GEAR CRT Price: $37.99 |
| 33 |
98-5343 |
HOSE ASM Price: $69.97 |
| 34 |
532102112 |
SHAFT.SECONDARY.REDUCTION.CRT Price: $37.99 |
| 34 |
98-5458 |
BOLT Price: Call Us |
| 35 |
532102101 |
SCRW WHIZ LOK CRT Price: $3.99 |
| 37 |
585695502 |
BEARING NEEDLE .875X.687 OE.50 This part replaces 532124791. Price: $5.99 |
| 38 |
532154355 |
SPROCKET.ASM.W/BEARING.TILLER This part replaces 532154356. Price: $84.99 |
| 39 |
532105345 |
GEAR TI Price: $54.99 |
| 40 |
532105346 |
GEAR TI Price: $39.99 |
| 41 |
532008358 |
SHAFT.REDUCTION.TILLER Price: $14.99 |
| 42 |
532004220 |
BRNG RACE T Price: $4.99 |
| 43 |
532106146 |
SPACER TI Price: $24.99 |
| 44 |
532155236 |
SEAL ASM, OIL Price: $5.99 |
| 49 |
532432058 |
KIT.TINE.SHAFT.SERVICE This part replaces 532132688. Price: $89.99 |
| 50 |
532106147 |
CHAIN.TILLER Price: $49.99 |
| 51 |
596437001 |
Screws This part replaces 817720408. Price: $2.99 |
| 52 |
596436301 |
Nuts This part replaces 873220500. Price: $2.99 |
| 53 |
532165140 |
KIT.BEARING.TILLER. Price: $24.99 |
| 58 |
532179520 |
BOLT SHOULDER 1/4-20 UNC X.875 Price: $3.99 |
| 60 |
532183226 |
FITTING.GREASE.TAPERED Price: $4.99 |
