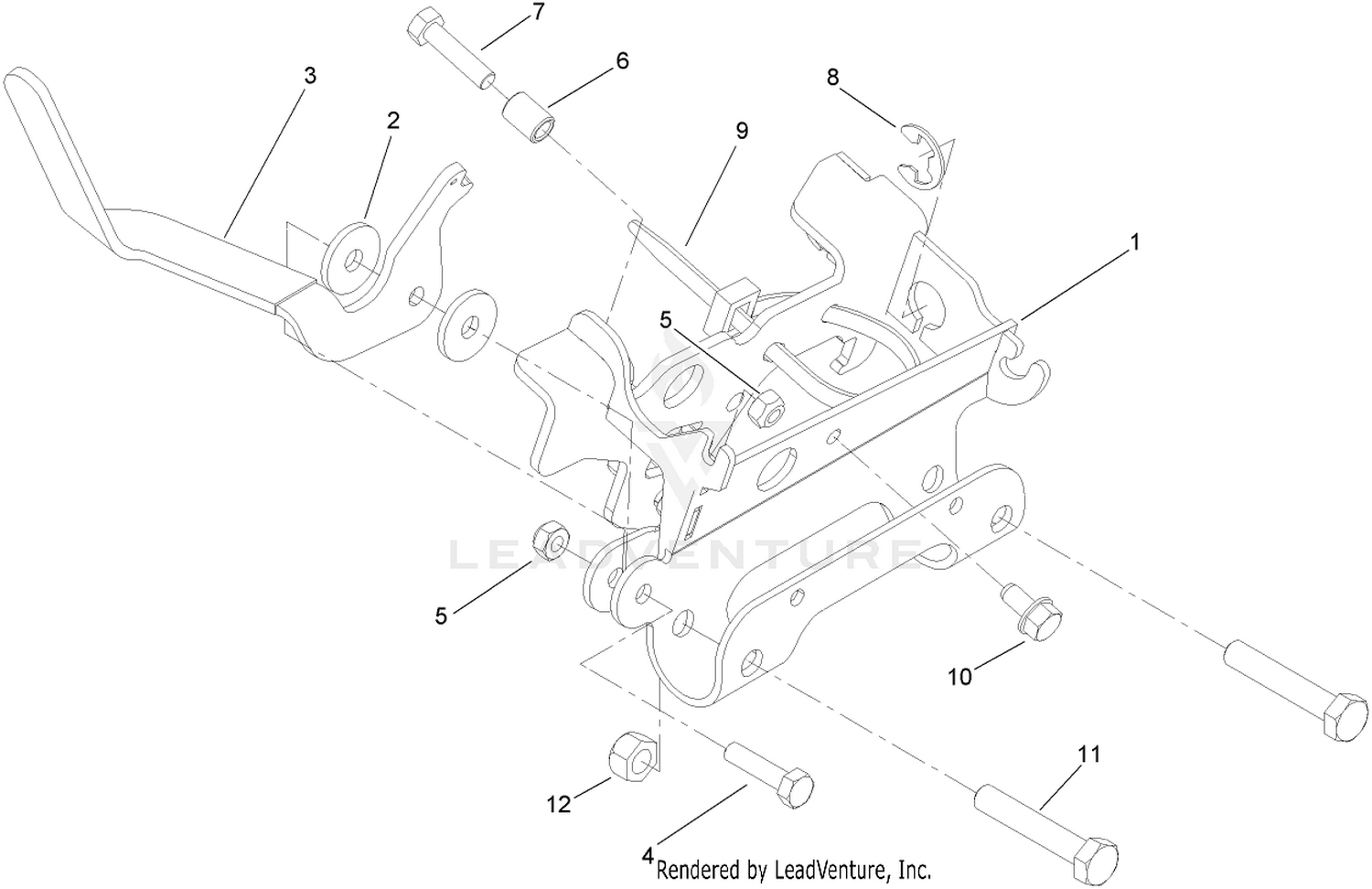

Throttle Bracket Kit No. 108-9404
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 108-7652-03 | CONTROL BRACKET ASM Price: $180.35 |
| 2 | 66-2921 | WASHER-FRICTION Price: $2.17 |
| 3 | 108-3179 | LEVER-THROTTLE Price: $80.66 |
| 4 | 33113-025 | SCREW-HH Price: $1.97 |
| 5 | 33023-00 | NUT-LOCK Price: $0.25 |
| 6 | 105-2401 | SPACER-CABLE, BRAKE Price: $27.30 |
| 7 | 33113-025 | SCREW-HH Price: $1.97 |
| 8 | 32120-47 | RING-RETAINING, EXTERNAL Price: $0.99 |
| 9 | 3290-378 | TIE-CABLE Price: $0.79 |
| 10 | 104-2628 | SCREW-HWH Price: $0.75 |
| 11 | 33114-045 | SCREW-HH Price: $0.68 |
