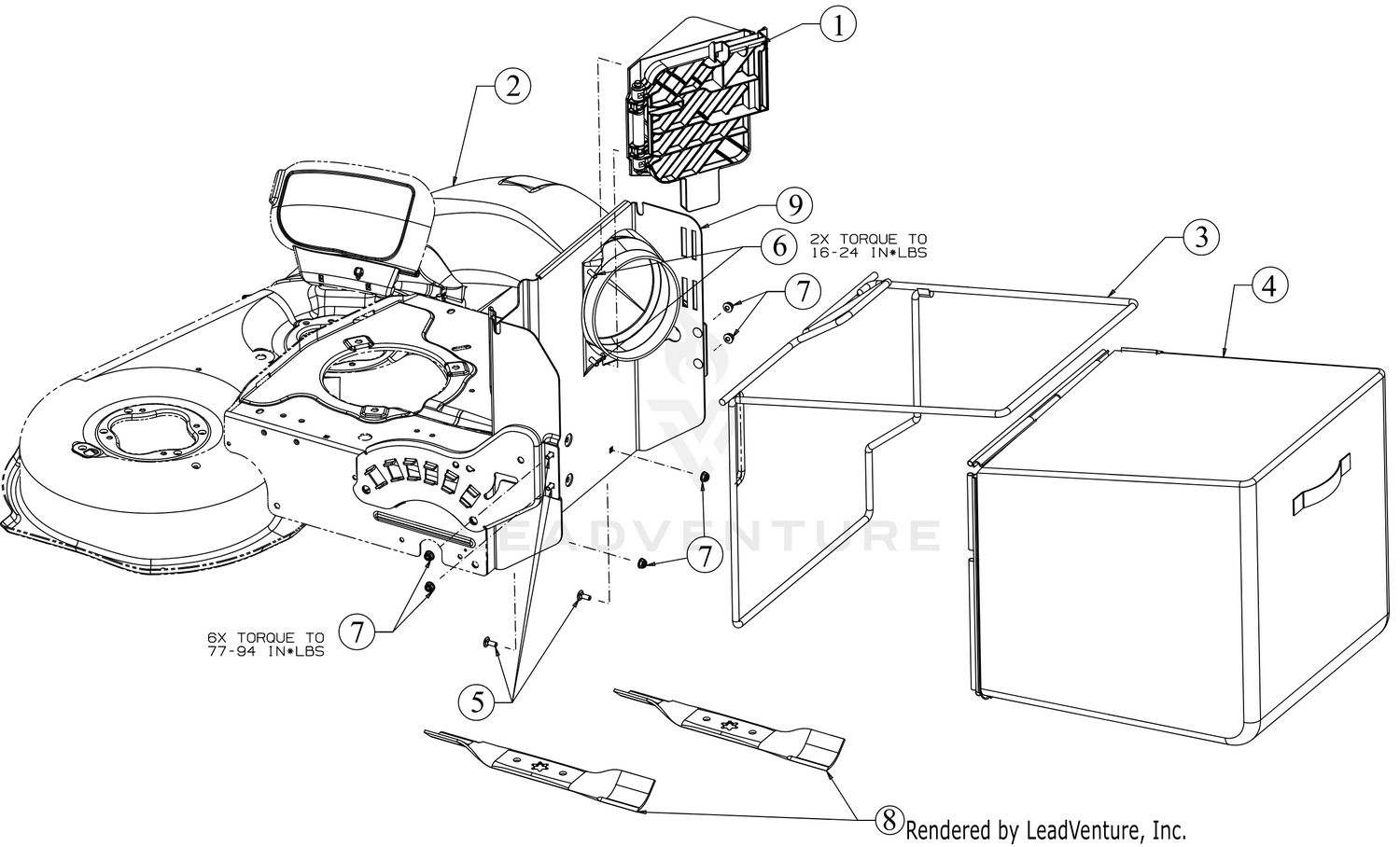

| Ref | Part Number | Description |
|---|
| 1 |
631-05335B |
GRASSBAG DOOR ASSEMBLY Price: $47.13 |
| 1 |
726-04009A |
PUSH CAP This part replaces 726-04009. Price: $6.21 |
| 1 |
747-06290B |
CHUTE HINGE PIN Price: $3.66 |
| 1 |
750-0885A |
SPACER Price: $10.02 |
| 2 |
710-0751 |
SCREW 1/4-20 x .620 GR5 Price: $3.63 |
| 2 |
712-04064 |
FLANGE LOCK NUT Price: $3.64 |
| 2 |
736-0173 |
FLAT WASHER .28 ID x .74 OD x .063 Price: $3.76 |
| 2 |
931-05337 |
CHUTE ASSEMBLY This part replaces 631-05337. Price: $118.70 |
| 3 |
647-05065 |
GRASSBAG FRAME Price: $57.63 |
| 5 |
710-0134 |
CARRIAGE BOLT 1/4-20 x .62 Price: $3.71 |
| 6 |
710-05108 |
SCREW 1/4 x .750 Price: $3.19 |
| 7 |
712-04064 |
FLANGE LOCK NUT Price: $3.64 |
