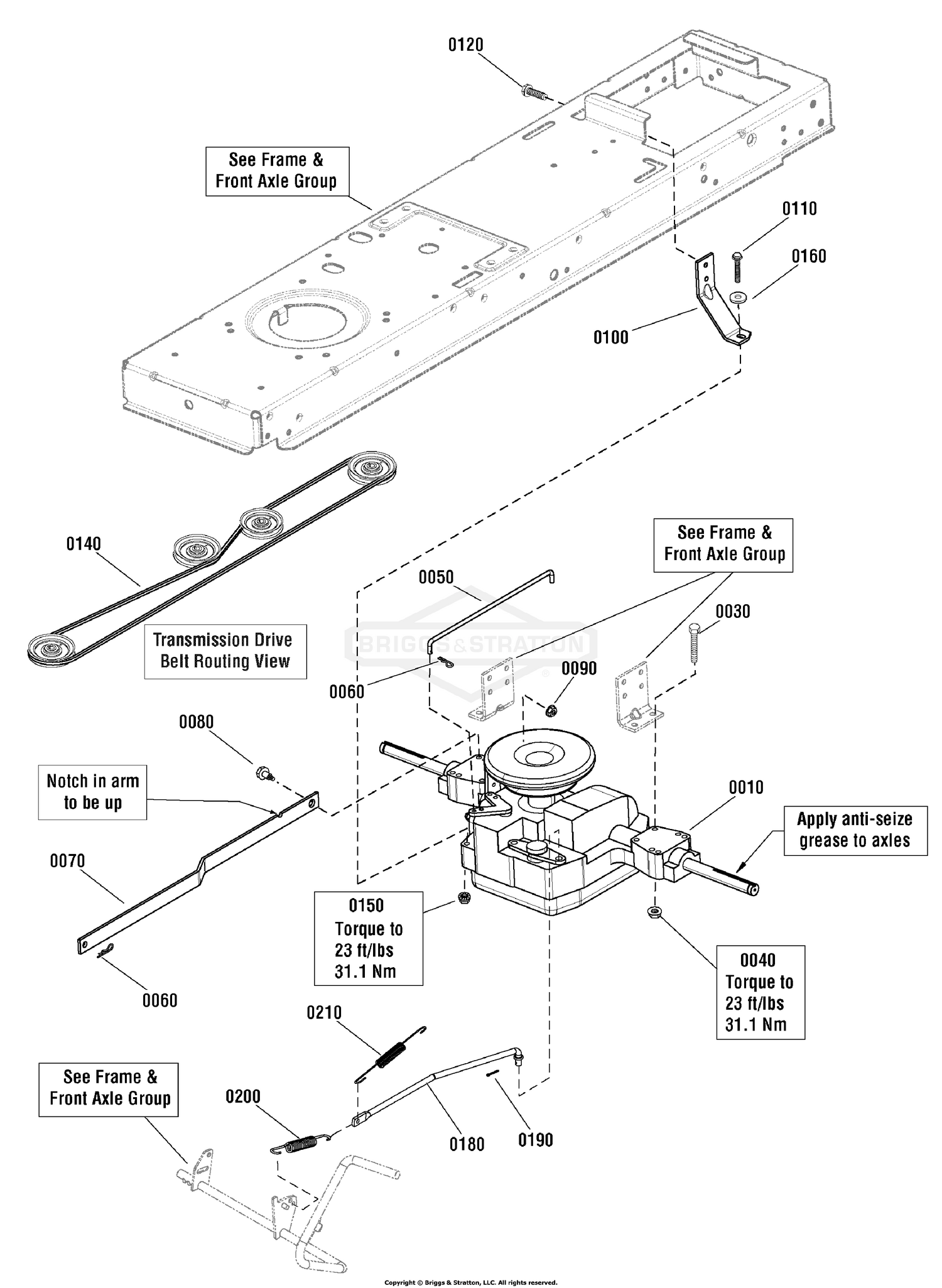

| Ref | Part Number | Description |
|---|
| 0010 |
1761324YP |
TRANSMISSION ASSEMBLY, Tuff Torque, K46BP Price: $1,275.96 |
| 0030 |
1960586SM |
CAPSCREW, Hex Flange, Whiz Lock, 5/16-18 x 2-1/2 Price: $4.26 |
| 0040 |
703409 |
NUT, 5/16-18, GR5 Price: $4.92 |
| 0050 |
1758474YP |
ROD, BYPASS This part replaces 1728120SM. Price: $9.85 |
| 0060 |
703430 |
PIN, 13X1.19 This part replaces 1722460SM. Price: $2.87 |
| 0070 |
1727258SM |
ARM, Control, 23.69" Lg Price: $20.61 |
| 0080 |
1732426SM |
BOLT-SHLDR 5/16-18 0. Price: $3.62 |
| 0090 |
704067 |
NUT, HEX FLNG,5/16-18 This part replaces 1935048SM. Price: $3.17 |
| 0100 |
1754842BMYP |
STRAP, Torque 7 GA Price: $10.40 |
| 0110 |
5025011X14SM |
BOLT, 5/16-18 X 1-3/4 This part replaces 1922127SM. Price: $3.40 |
| 0120 |
703228 |
SCREW, 5/16-18 X .75 Price: $3.94 |
| 0140 |
1728008SM |
V-BELT, HA, 89-1/4" Long Price: $43.04 |
| 0150 |
703115 |
NUT Price: $3.06 |
| 0160 |
703298 |
WASHER, 5/16 Price: $3.94 |
| 0180 |
1727253SM |
ROD, Brake, 3/8 Dia. x 15-1/8 Long Price: $14.43 |
| 0190 |
703312 |
PIN, COTTER, 3/32X.75 Price: $3.51 |
| 0200 |
1731262SM |
SPRING, Extension, 11/16 x 3-3/8 Price: $8.84 |
