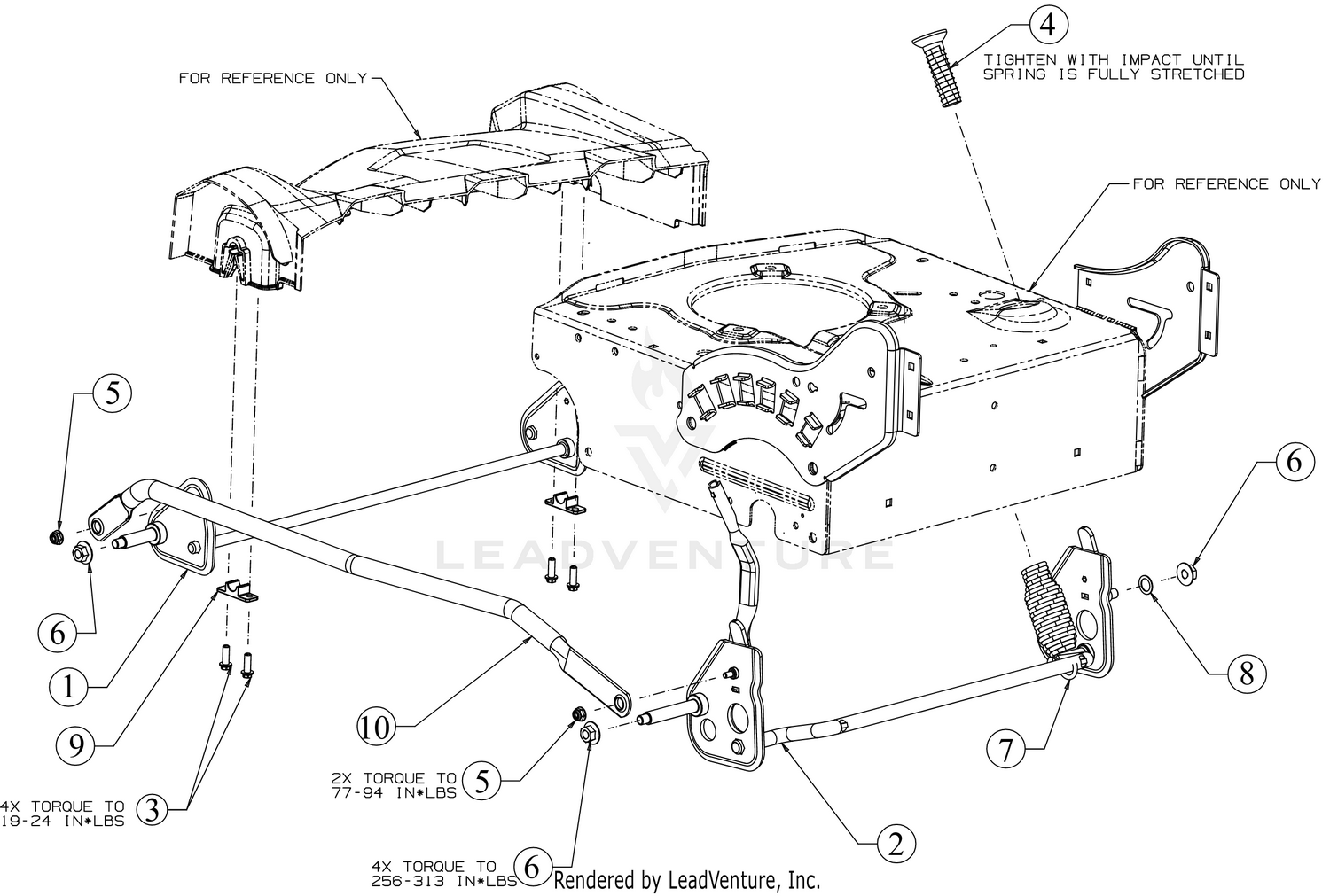

Deck Lift
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 611-05085 | FRONT AXLE ASSEMBLY Price: $45.19 |
| 2 | 611-05088 | REAR AXLE ASSEMBLY Price: $72.35 |
| 3 | 710-05108 | SCREW 1/4 x .750 Price: $3.19 |
| 4 | 711-06346A | LIFT SPRING INSERT Price: $10.13 |
| 5 | 712-04064 | FLANGE LOCK NUT Price: $3.64 |
| 6 | 712-04217 | FLANGE LOCK NUT Price: $3.75 |
| 7 | 732-05384 | EXTENTION SPRING Price: $10.40 |
| 8 | 936-0108 | WASHER .510 x .750 x .033 Price: $6.07 |
| 9 | 741-0492A | BLOCK BUSHING Price: $5.41 |
