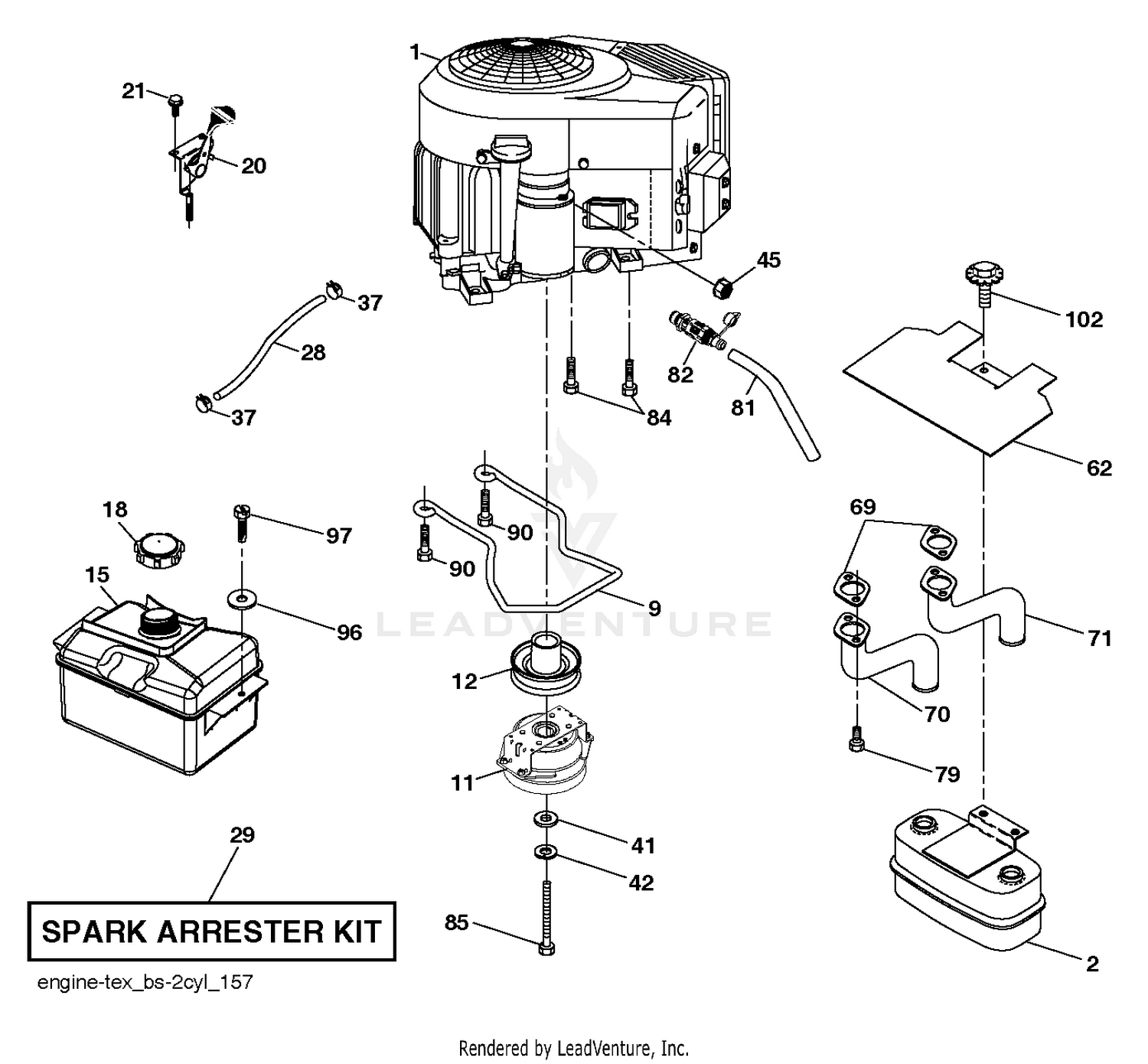

| Ref | Part Number | Description |
|---|
| 1 |
45_053_76 |
Carburetor Assembly Price: Call Us |
| 2 |
25_155_02 |
Connector-90? Price: Call Us |
| 2 |
589818702 |
MUFFLER.ASM.TWIN.MNTG.BRACKET This part replaces 589818701. Price: $44.99 |
| 3 |
47_049_01 |
Gasket-Carburetor Price: Call Us |
| 4 |
X-770-1 |
Screw sitd. hd. Price: Call Us |
| 5 |
45_103_01 |
Needle-Main Price: Call Us |
| 6 |
200383 |
Spring-Main Price: Call Us |
| 7 |
200380 |
Spring-Idle Price: Call Us |
| 8 |
275231 |
Needle-Idle Fuel Price: Call Us |
| 9 |
232555 |
Spring-Idle Speed Price: Call Us |
| 9 |
596501502 |
Keepers This part replaces 501832602. Price: $9.99 |
| 10 |
232556 |
Screw Price: Call Us |
| 11 |
200375 |
Gasket-Bowl Price: Call Us |
| 11 |
587241601 |
CLUTCH.OGURA.5.0PD.GT1.5A-EH07 Price: $229.99 |
| 12 |
25_757_03 |
Kit-Float Price: Call Us |
| 12 |
532405097 |
PULLEY.ENGINE.TUFFTORQ Price: $49.99 |
| 13 |
25_041_02 |
Gasket-Bowl Baffle Price: Call Us |
| 14 |
200376 |
Pin-Float Hinge Price: Call Us |
| 15 |
235448 |
Bowl Price: Call Us |
| 15 |
581290101 |
TANK.ASSEMBL.2.5GAL.NON-EPA Price: $99.99 |
| 16 |
47_100_06 |
Screw-Bowl Retainer Price: Call Us |
| 17 |
200372 |
Gasket-Bowl Screw Price: Call Us |
| 18 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532430220. Price: $22.99 |
| 18 |
X-391-10 |
Connector Price: Call Us |
| 20 |
587242504 |
THROTTLE CABLE This part replaces 587242501. Price: $32.99 |
| 21 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 25_757_02 |
Kit-Carburetor |
Repair Price: Call Us 25_757_02 |
| 28 |
587044820 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532137040. Price: $9.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 41 |
532126197 |
WASHER Price: $6.99 |
| 42 |
596238901 |
Washers This part replaces 539990247. Price: $2.99 |
| 45 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 62 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532434017. Price: $11.99 |
| 69 |
532165391 |
GASKET.MUFFLER Price: $9.99 |
| 70 |
581881101 |
EXHAUST.TUBE.LH.BS/TWIN Price: $27.99 |
| 71 |
581881001 |
EXHAUST.TUBE.RH.B&S.TWIN.INTEK Price: $22.99 |
| 79 |
596134202 |
Screws This part replaces 532183906. Price: $2.99 |
| 81 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 82 |
532428287 |
VALUE.OIL.DRAIN Price: $14.99 |
| 84 |
817060620 |
SCREW.3/8-16 Price: $5.99 |
| 85 |
501606601 |
BOLT.HEX.7/16-20X3.75.GR5.RED Price: $3.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 97 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
| 102 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
