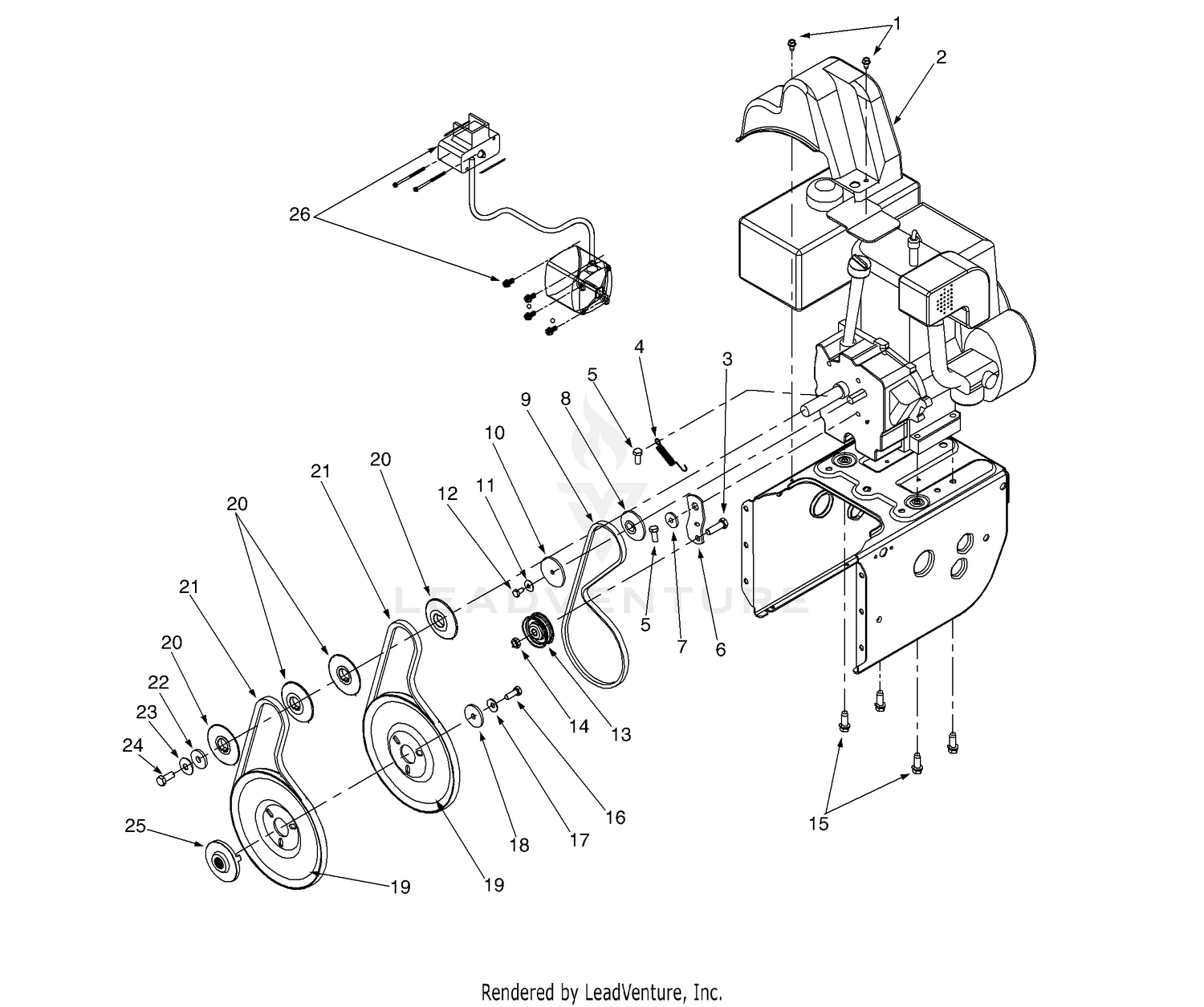

| Ref | Part Number | Description |
|---|
| 1 |
710-1652 |
Hex Washer Screw 1/4-20 x .50 Price: $3.86 |
| 2 |
731-1324 |
Belt Cover Price: $19.12 |
| 3 |
710-3005 |
Hex Cap Screw 3/8-16 x 1.25 Price: $3.61 |
| 4 |
932-0710 |
Extension Spring This part replaces 732-0710. Price: $6.92 |
| 5 |
710-0627 |
Hex Screw 5/16-24 x .75 Price: $3.68 |
| 6 |
05896A |
BRACKET-IDLR- Not Available Price: |
| 7 |
748-0234 |
Shoulder Spacer Price: $3.86 |
| 8 |
956-0987 |
HALF PULLEY Not Available This part replaces 756-0987. Price: |
| 9 |
954-0346 |
V - Belt This part replaces 754-0346. Price: $26.67 |
| 10 |
756-0986 |
HALF PULLEY Not Available Price: |
| 11 |
736-0270 |
SPRING WASHER BELL Price: $3.63 |
| 12 |
710-0230 |
HEX SCREW 1/4-28 x .50 GR5 Not Available Price: |
| 13 |
756-0313 |
Flat Idler Price: $24.48 |
| 14 |
712-0181 |
Lock Jam Nut 3/8-16 Price: $3.90 |
| 15 |
710-0654A |
Hex Washer Screw 3/8-16 x 1.0 Price: $3.75 |
| 16 |
710-1245 |
SCREW 5/16-24X.875 GR5 Not Available Price: |
| 17 |
736-0242 |
Bell Washer .340 ID x .872 OD Price: $3.75 |
| 18 |
736-0505 |
Flat Washer .341 ID x .50 OD Price: $5.65 |
| 19 |
756-0967 |
Pulley Auger Price: $52.75 |
| 20 |
756-0569 |
Pulley Half Not Available Price: |
| 21 |
954-0430C |
BELT: 3V X 35.00 LG This part replaces 754-0430A. Price: $26.49 |
| 22 |
736-0247 |
Flat Washer Price: $8.82 |
| 23 |
736-0331 |
Bell Washer .39 ID x 1.13 OD Price: $3.50 |
| 24 |
710-0696 |
Hex Cap Screw 3/8-24 x .875 Price: $5.94 |
| 25 |
948-0360 |
Adapter Pulley This part replaces 748-0360. Price: $19.88 |
