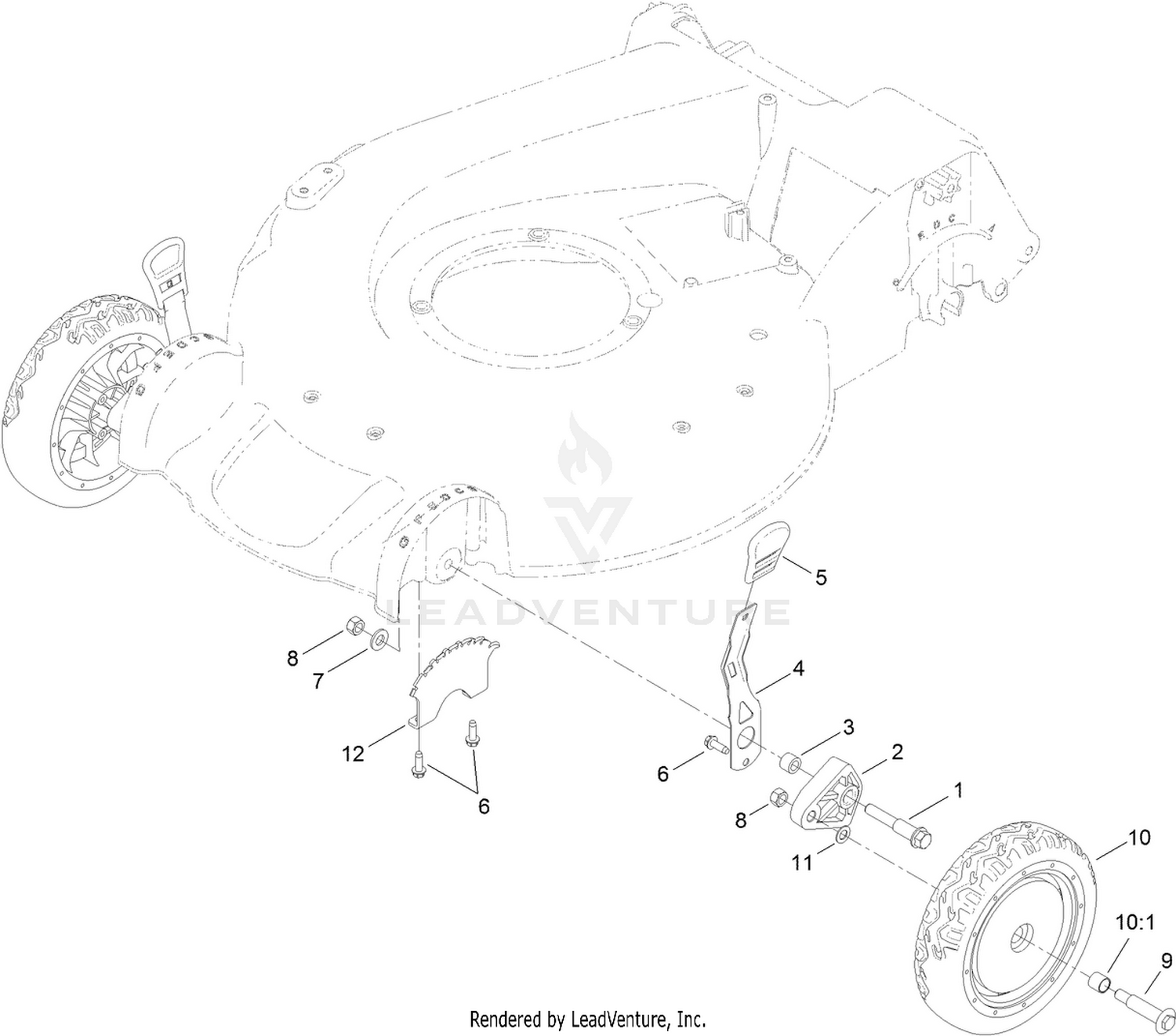

Front Wheel and Height-of-Cut Assembly
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 114-3467 | SCREW-SHOULDER Price: $5.17 |
| 2 | 107-7492 | ARM-PIVOT Price: $11.34 |
| 3 | 52-2480 | SPACER-WHEEL Price: $5.89 |
| 4 | 107-7491 | ARM-SPRING Price: $8.36 |
| 5 | 110-0549 | KNOB-HOC Price: $1.08 |
| 6 | 49-2040 | SCREW-HWHTF Price: $1.99 |
| 7 | 3256-24 | WASHER-FLAT Price: $0.28 |
| 8 | 603773 | LOCKNUT Price: $2.09 |
| 9 | 92-1057 | BOLT-SHOULDER Price: $3.05 |
| 10 | 107-3708 | WHEEL ASM Price: $24.06 |
| 11 | 40-1940 | WASHER Price: $1.59 |
