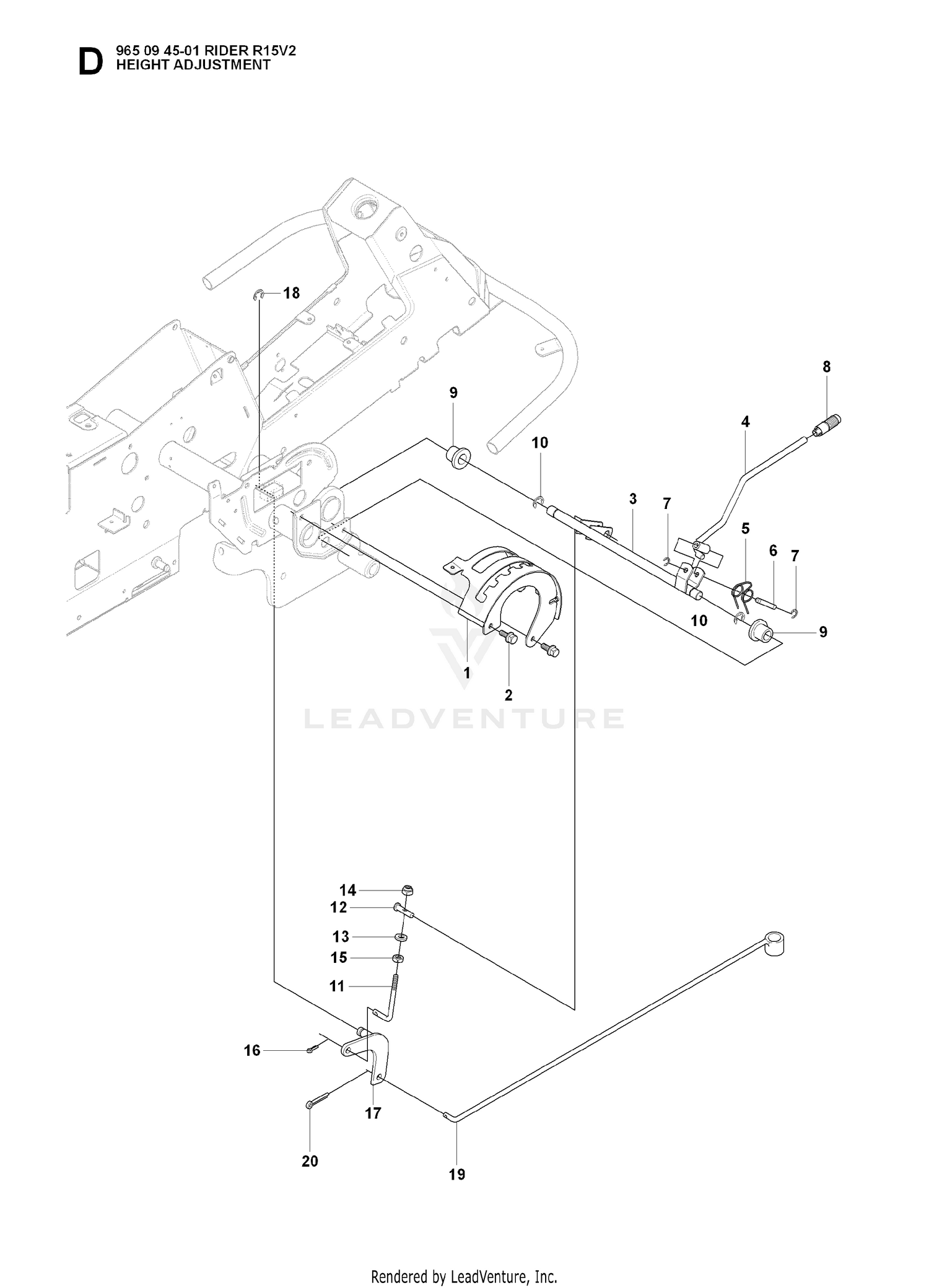

HEIGHT ADJUSTMENT
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 120-0404 | BRACKET-HIGH HOC (LH) Price: $71.73 |
| 1 | 535501401 | CONTROL PLATE Price: $25.99 |
| 2 | 120-0405 | BRACKET-HIGH HOC (RH) Price: $71.73 |
| 2 | 506570103 | BOLT Price: $3.99 |
| 3 | 119-0626 | SHIM-ROLLER Price: $3.23 |
| 4 | 106-9758 | SCREW-CARR Price: $2.99 |
| 4 | 3230-30 | SCREW-CARR Price: $10.99 |
| 4 | 504734501 | HEIGHT ADJUSTER This part replaces 535506201. Price: $74.99 |
| 5 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 5 | 506531401 | HAIR PIN SPRING Price: $5.44 |
| 6 | 140-5523 | SCREW-HHF 5/8, PATCH This part replaces 133-7572. Price: $2.94 |
| 6 | 506531501 | PIVOT PIN Price: $3.07 |
| 7 | 48-9220 | WASHER-PLAIN Price: $0.87 |
| 7 | 735310920 | E-RING 5 Price: $3.99 |
| 8 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 8 | 588164101 | Handles This part replaces 506542001. Price: $11.99 |
| 9 | 322-16 | SCREW-HH Price: $3.39 |
| 9 | 584871302 | BEARING FLANGE This part replaces 506554301. Price: $4.99 |
| 10 | 32128-20 | NUT-HF Price: $0.99 |
| 10 | 735312220 | CIRCLIP Price: $3.99 |
| 11 | 506908201 | LINKAGE Price: $11.99 |
| 12 | 506784601 | Pins Price: $4.99 |
| 13 | 596134901 | GSPH This part replaces 734117201. Price: $2.99 |
| 14 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 15 | 731231801 | NUT Price: $3.99 |
| 16 | 721618301 | Split Pin Price: $1.99 |
| 17 | 506998301 | Bracket Price: $21.20 |
| 18 | 735311520 | RETAINING RING Price: $2.99 |
| 19 | 506975101 | CLUTCH ROD Price: $10.36 |
| 20 | 721618301 | Split Pin Price: $1.99 |
