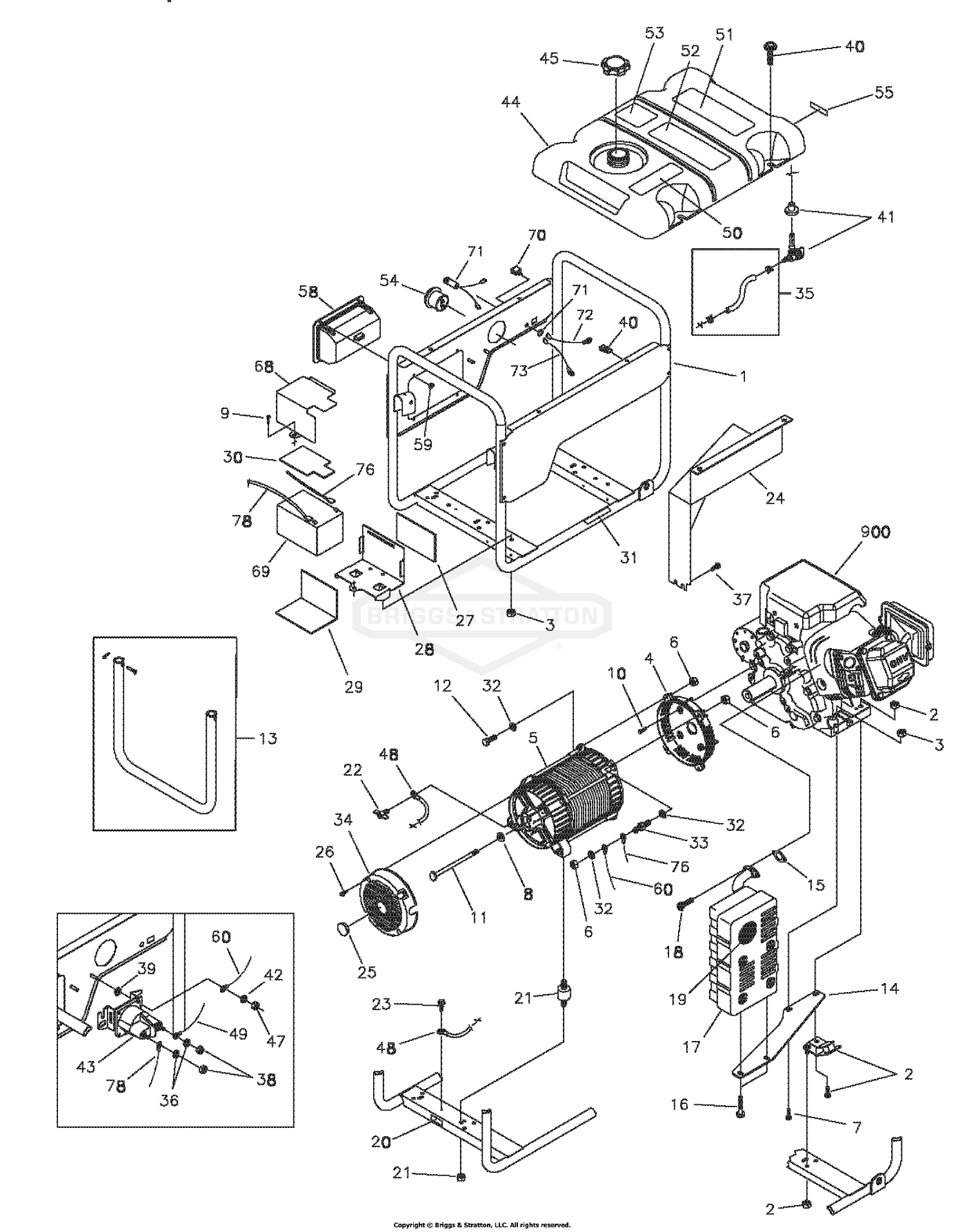

| Ref | Part Number | Description |
|---|
| 1 |
199230GS |
ASSY, Cradle (Includes Items 20 & 31) Price: $299.99 |
| 2 |
194150GS |
KIT, Vibration, Mount, 45° Price: $12.92 |
| 3 |
67989GS |
NUT, M8 Flange Serrated Price: $2.77 |
| 4 |
190220GS |
HOUSING, Engine Adapter Price: $40.82 |
| 5 |
~NSP |
ASSY, Alternator (see page 27) Price: Call Us |
| 8 |
96796GS |
WASHER, 8.4 x 22.2 x 3 Price: $2.79 |
| 9 |
198611GS |
PPHS, 1/4-20 x .05 Trilobular Price: $2.79 |
| 10 |
190274BGS |
SBHCS, 3/8 - 16 x 1 Price: $3.41 |
| 11 |
47480GS |
HHCS, 5/16-24 x 7 Price: $9.51 |
| 13 |
198763GS |
KIT, Handle Price: $34.20 |
| 14 |
189009GS |
BRACKET, Muffler Price: $20.75 |
| 15 |
695398 |
GASKET, Exhaust Price: $6.62 |
| 17 |
189008GS |
MUFFLER Price: $60.60 |
| 19 |
83083GS |
SCREEN, Spark Arrest Price: $8.49 |
| 20 |
B4986GS |
DECAL, Ground, Green Price: $2.75 |
| 21 |
194153GS |
MOUNT-VIBRATION Price: $10.54 |
| 22 |
86494GS |
SCREW, Wing M6 - 1.0 x 16 Price: $2.51 |
| 23 |
313085GS |
SCREW This part replaces 86292GS. Price: $3.35 |
| 24 |
197424GS |
SHIELD, Heat Price: $82.25 |
| 25 |
191190GS |
CAP Price: $3.09 |
| 26 |
74908GS |
SCREW, M5-0.8 x 10, Taptite Price: $2.69 |
| 27 |
199228GS |
INSULATION Price: $16.79 |
| 28 |
198700GS |
KIT, Battery Tray w/Insltn Price: $47.07 |
| 29 |
199156GS |
INSULATION Price: $16.79 |
| 30 |
199157GS |
INSULATION Price: $16.79 |
| 31 |
196830GS |
DECAL, Exhaust Warning Price: $13.89 |
| 33 |
187117GS |
STUD, Double Price: $2.49 |
| 34 |
195422GS |
COVER, RBC, Plastic w/Cap Price: $12.35 |
| 35 |
791745 |
LINE, Fuel Price: $8.97 |
| 37 |
56893GS |
CRIMPTITE, 10-24 x 1/2 Price: $1.95 |
| 40 |
199433GS |
KIT, Fuel Tank Hrdwr w/U-Clips Price: $3.80 |
| 41 |
192980GS |
KIT, Valve, Fuel Tank Price: $16.43 |
| 43 |
691656 |
SOLENOID, Starter Price: $29.23 |
| 44 |
193668GS |
ASSY, Tank, Fuel (Includes Items 41, 50, 51, 52, 53 & 55) Price: $97.25 |
| 45 |
198912GS |
KIT, Fresh Start™ Fuel Cap, w/Crtrg Price: $17.50 |
| 48 |
195373GS |
WIRE, Ground Price: $1.85 |
| 49 |
185931KGS |
WIRE Price: $8.89 |
| 50 |
188333GS |
DECAL, Gas Fill Price: $20.85 |
| 51 |
194799GS |
DECAL, Danger Price: $10.48 |
| 52 |
189235GS |
DECAL, Start Instructions Price: $17.22 |
| 53 |
202997GS |
DECAL, CO Warning Price: $12.80 |
| 54 |
196908GS |
LOAD MONITOR Price: $155.14 |
| 55 |
197798GS |
DECAL, Shut-Off, Fuel Price: $7.89 |
| 58 |
197641GS |
ASSY, Control Panel (see page 26) Price: $100.90 |
| 60 |
198871EGS |
WIRE Price: $2.35 |
| 68 |
199150GS |
KIT, Battery Cover w/Insltn Price: $31.99 |
| 69 |
198711GS |
BATTERY Price: $66.35 |
| 70 |
87799GS |
SWITCH, Rocker Price: $4.89 |
| 71 |
198925GS |
ASSY, Jack Coaxial Price: $11.99 |
| 72 |
198871LGS |
WIRE Price: $4.79 |
| 73 |
198871KGS |
WIRE Price: $1.80 |
| 76 |
185931LGS |
WIRE, Battery Negative Price: $8.20 |
| 78 |
185931JGS |
WIRE, Battery Positive Price: $5.90 |
