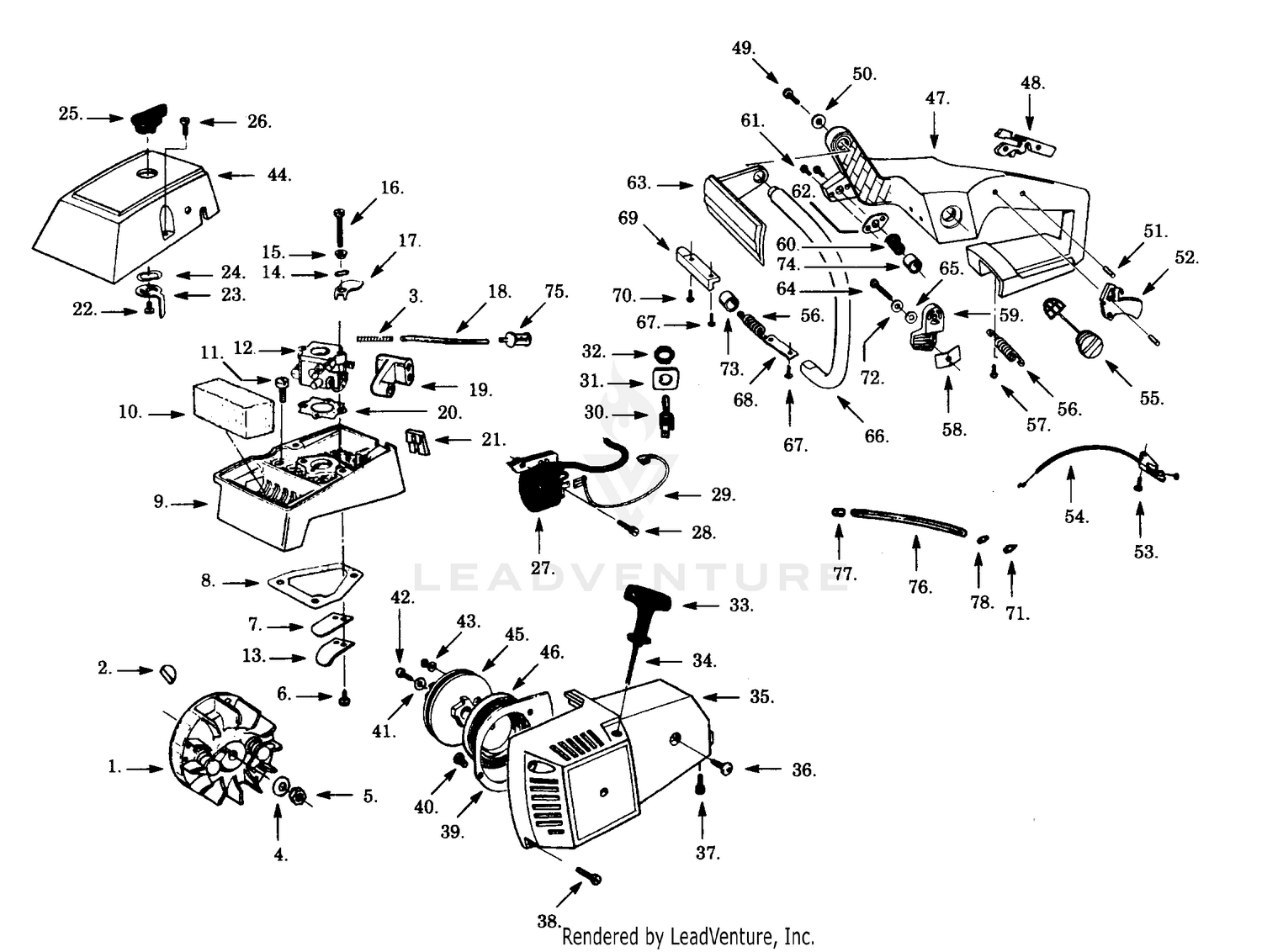

| Ref | Part Number | Description |
|---|
| 1 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 2 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 2 |
530015126 |
Flywheel Key Price: $1.99 |
| 3 |
26-1840 |
PULLEY-IDLER Price: $42.68 |
| 3 |
530037264 |
Spring Price: $4.84 |
| 4 |
26-1760 |
PULLEY AND HUB ASM Price: $214.86 |
| 4 |
530015127 |
Washer Price: $1.99 |
| 5 |
26-1860 |
SPACER-IDLER PULLEY Price: $4.75 |
| 5 |
530626605 |
Nut Price: $1.99 |
| 6 |
32128-21 |
NUT-HF Price: $0.39 |
| 6 |
545227101 |
SCREW 6-19X.437 This part replaces 530016064. Price: $1.99 |
| 7 |
3231-22 |
SCREW-CARR Price: $0.72 |
| 7 |
530036331 |
Reed Valve Price: $1.99 |
| 8 |
26-1870-03 |
MOUNT-IDLER This part replaces 26-1870. Price: $74.13 |
| 8 |
530019252 |
Gasket This part replaces 530019118. Price: $1.99 |
| 9 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 9 |
530037154 |
Carburetor Hsg. Price: $3.33 |
| 10 |
3217-7 |
NUT-HEX Price: $0.28 |
| 10 |
530023791 |
Air Filter Price: $2.99 |
| 11 |
26-1850 |
STUD-IDLER Price: $32.97 |
| 11 |
530015242 |
Screw Price: $1.99 |
| 12 |
21-0890 |
V-BELT Price: $32.90 |
| 12 |
530035311 |
Carburetor Price: $3.33 |
| 13 |
3296-49 |
NUT-LOCK, NI Price: $4.93 |
| 13 |
530036332 |
Reed Stop Price: $1.99 |
| 14 |
3-8514 |
WASHER-THRUST Price: $1.58 |
| 14 |
530015254 |
Wave Washer Price: $1.99 |
| 15 |
530023865 |
Spacer Price: $2.99 |
| 15 |
84-2060 |
PULLEY AND HUB ASM This part replaces 26-9100. Price: $276.94 |
| 16 |
253-138 |
SEAL-OIL Price: $10.33 |
| 16 |
530015245 |
Screw Price: $1.99 |
| 17 |
530023805 |
Choke Shutter Price: $0.99 |
| 18 |
38-9200 |
DISCONTINUED X-REF Price: Call Us |
| 18 |
530069247 |
Line Kit (Bulk#8133) Price: $3.99 |
| 19 |
530036973 |
Carb. Adj. Grommet Price: $1.99 |
| 19 |
68-7280 |
DECAL - BLD BOLT TORQUE This part replaces 26-7960. Price: $11.26 |
| 20 |
26-7970 |
CAUTION DECAL (BLADE) Price: $14.83 |
| 20 |
530019045 |
Carb. Gasket Price: $1.99 |
| 21 |
530036972 |
Grommet - Throttle Cable Price: $1.99 |
| 21 |
84-2020 |
HOUSING-SPINDLE This part replaces 26-1630. Price: $297.31 |
| 22 |
302-52 |
FITTING-GREASE Price: $1.49 |
| 22 |
530015407 |
Screw Price: $0.56 |
| 23 |
26-1690 |
DISCONTINUED Price: Call Us |
| 23 |
530037070 |
Choke Lever Price: $1.99 |
| 24 |
29-5530-03 |
BLADE-STANDARD, 25 INCH, LH This part replaces 29-5530. Price: $40.07 |
| 24 |
530015147 |
Wave Washer Price: $1.99 |
| 25 |
26-1990 |
WASHER-BELLEVILLE Price: $16.49 |
| 25 |
530037116 |
Choke Knob Price: $1.99 |
| 26 |
26-1820 |
CAPSCREW Price: $37.35 |
| 26 |
530015168 |
Screw Price: $1.46 |
| 27 |
49-8320 |
BEARING ASM This part replaces 26-1730. Price: $104.42 |
| 27 |
530069403 |
Ignition Module Price: $21.16 |
| 28 |
3234-1 |
SCREW-HHF Price: $1.62 |
| 28 |
530015816 |
Screw Price: $1.99 |
| 29 |
26-1880 |
SPACER-IDLER MOUNT Price: $13.91 |
| 29 |
530037014 |
Wire Harness Price: $1.99 |
| 30 |
323-12 |
SCREW-HH Price: $1.14 |
| 30 |
530026766 |
Toggle Switch Price: $3.33 |
| 31 |
3231-29 |
SCREW-CARR Price: $0.68 |
| 31 |
530012311 |
Indicating Plate Price: $1.99 |
| 32 |
530002582 |
Switch- Plate and Nut This part replaces 530023575. Price: $6.69 |
| 32 |
84-5370 |
SPINDLE This part replaces 26-1680. Price: $259.86 |
| 33 |
31-0750 |
ROLLER-FRONT Price: $42.15 |
| 33 |
530056402 |
Handle-Starter This part replaces 530037485. Price: $2.99 |
| 34 |
3296-38 |
NUT-LOCK, NI This part replaces 32-9610. Price: $1.89 |
| 34 |
530069232 |
Rope Kit Price: $3.99 |
| 35 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 35 |
530037158 |
Fan Hsg. Price: $3.04 |
| 36 |
20-4690 |
TORO LOGO DECAL Price: $6.67 |
| 36 |
530015771 |
Screw Price: $1.99 |
| 37 |
530016018 |
Screw Price: $1.99 |
| 38 |
530015812 |
Screw Price: $1.99 |
| 39 |
530037013 |
Fan Hsg. Baffle Price: $1.99 |
| 40 |
530015777 |
Screw Price: $0.99 |
| 41 |
530015123 |
Washer Price: $1.99 |
| 42 |
530016141 |
Screw This part replaces 530015036. Price: $1.99 |
| 43 |
530016080 |
Screw Price: $1.99 |
| 44 |
530037155 |
Carb. Cover Price: $6.99 |
| 45 |
530069288 |
Starter Pulley Price: $4.99 |
| 46 |
545008007 |
SPRING-STARTER This part replaces 530042023. Price: $5.23 |
| 47 |
530014760 |
Tank & Handle Assy Price: $3.33 |
| 48 |
530036967 |
Throttle Lockout Lever Price: $1.99 |
| 49 |
530016020 |
Screw Price: $0.99 |
| 50 |
530016021 |
Washer Price: $1.99 |
| 51 |
530015701 |
Roll Pin Price: $1.99 |
| 52 |
530036986 |
Throttle Trigger Price: $1.99 |
| 53 |
530016016 |
Screw Price: $1.99 |
| 54 |
530036966 |
Throttle Cable Assy Price: $6.99 |
| 55 |
577858601 |
FUEL CAP ASSY W/RET LW PRM This part replaces 530036965. Price: $3.99 |
| 56 |
530036954 |
Rear Mount Spring Price: $2.99 |
| 57 |
530015906 |
Screw Price: $1.99 |
| 58 |
530024317 |
Isolator Pad Price: $1.99 |
| 59 |
530036929 |
Upper Bracket Price: $2.99 |
| 60 |
530036955 |
Spring Price: $0.36 |
| 61 |
530016022 |
Screw Price: $0.99 |
| 62 |
530036946 |
Isolator Plate Price: $1.99 |
| 63 |
530025451 |
Handguard Price: $5.99 |
| 64 |
530015505 |
Screw Price: $1.99 |
| 65 |
530015209 |
Washer Price: $1.99 |
| 66 |
530036939 |
Front Handle Price: $22.99 |
| 67 |
530016018 |
Screw Price: $1.99 |
| 68 |
530036113 |
AV Strap Price: $2.99 |
| 69 |
530036943 |
Isolator Bracket Price: $2.99 |
| 70 |
530016019 |
Screw Price: $0.99 |
| 71 |
530026119 |
Check Valve Price: $1.99 |
| 72 |
530001642 |
Lockwasher Price: $1.99 |
| 73 |
530036953 |
Isolator Sleeve Price: $1.99 |
| 74 |
530036956 |
Upper Sleeve Price: $1.99 |
| 75 |
530037016 |
Fuel Filter Assy Price: $2.99 |
| 76 |
530069216 |
Vent Line Kit Price: $3.99 |
| 77 |
530027339 |
Vent Plug Price: $2.52 |
