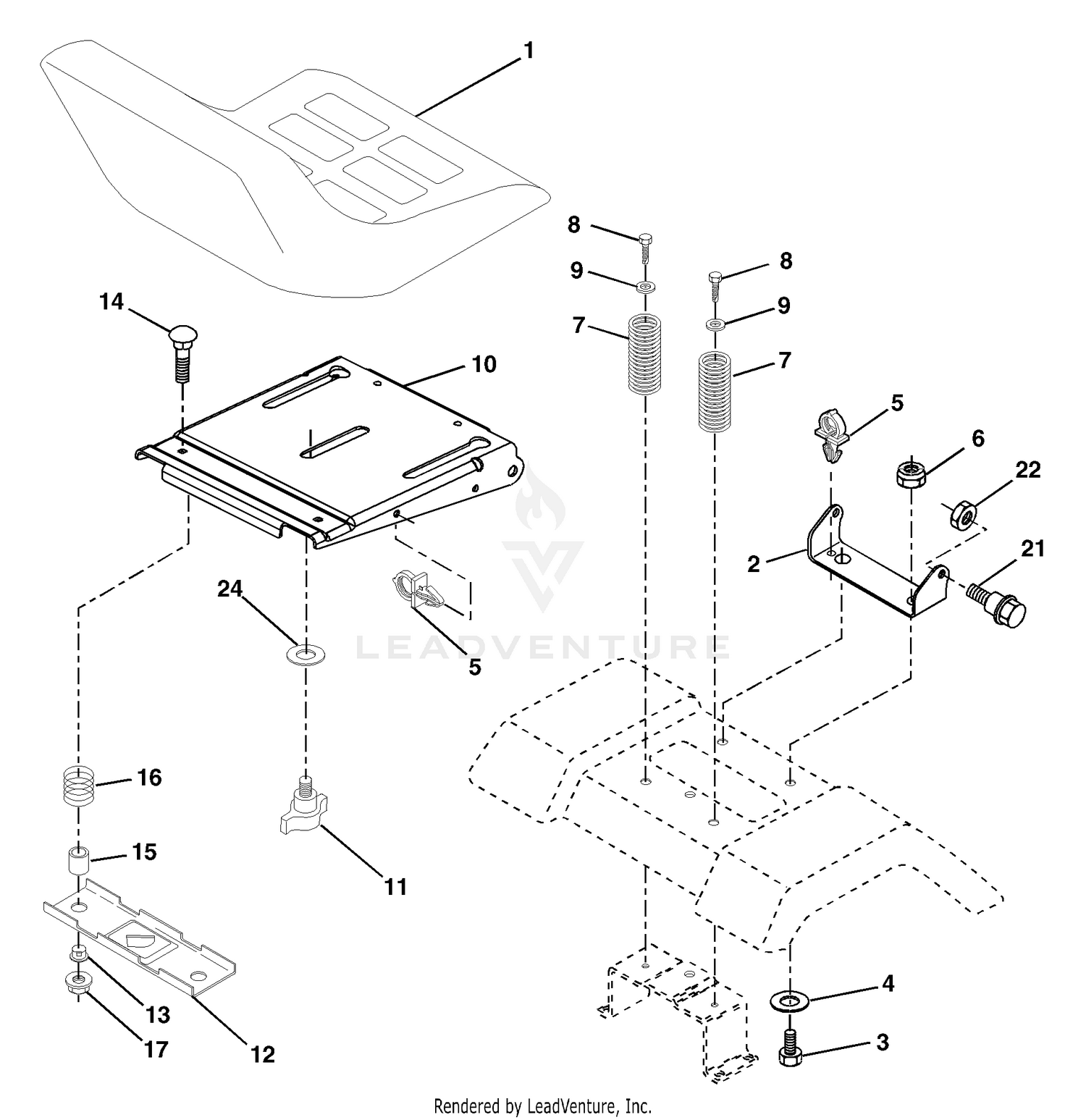

Seat Assembly

Seat Assembly

Parts (41)

RefPart NumberDescription
1 120-0018 BRAKE ROD KIT This part replaces 110-5498. Price: $82.04
1 188704 Seat Price: Call Us
2 180166 Bracket Pivot Fender Price: Call Us
2 3219-3 NUT-HEX Price: $0.34
3 3256-4 WASHER-FLAT Price: $0.28
3 71110616 Bolt Fin Hex 3/8-16 unc x 1 Price: Call Us
4 109-2230 SPRING-COMPRESSION Price: $8.99
4 19131610 Washer 13/32 x 1 x 10 Ga. Price: Call Us
5 112-1676 SWIVEL Price: $41.95
5 145006 Clip Push-In Price: Call Us
6 120-0018 BRAKE ROD KIT This part replaces 110-5494. Price: $82.04
6 73800600 Nut Hex w/Ins. 3/8-16 unc Price: Call Us
7 124181X Spring Seat Cprsn 2 250 Blk Zi Price: Call Us
7 32151-47 RING-RETAINING Price: $2.49
8 17000616 Screw 3/8-16 x 1.5 Smgml Price: Call Us
8 65-2720 RING-RETAINING,CLIP This part replaces 32151-68. Price: $0.99
9 1-806003 PIN-COTTER This part replaces 3290-307. Price: $1.39
9 19131614 Washer 13/32 x 1 x 14 Ga. Price: Call Us
10 180186 Pan Seat Price: Call Us
10 323-6 SCREW-HH Price: $0.66
11 1-633268 GRIP-LEVER Price: $13.99
11 166369 Knob Seat Price: Call Us
12 108-5214-03 BRAKE HANDLE ASM Price: $81.91
12 121246X Bracket Mounting Switch Price: Call Us
13 121248X Bushing Snap Blk Nyl 50 Id Price: Call Us
13 3250-35 SCREW-PPH Price: $3.24
14 3256-53 WASHER-FLAT Price: $0.25
14 72050412 Bolt Rdhd Sqnk 1/4-20 x 1-1/2 Price: Call Us
15 134300 Spacer Split 28x 88 Price: Call Us
15 95-8900 SWITCH Price: $95.42
16 108-9824 NUT-SWITCH Price: $1.97
16 121250X Spring Cprsn Price: Call Us
17 1-633102 BEARING-FLANGE, SIDE Price: $17.99
17 123976X Nut Lock 1/4 Lge Flg Gr. 5 Zinc Price: Call Us
18 3290-378 TIE-CABLE Price: $0.79
19 110-9754 BRAKE PIVOT ASM Price: $32.85
20 1-513140 BEARING-CONTROL Price: $4.99
21 171852 Bolt Shoulder 5/16-18 unc Price: Call Us
21 3296-39 NUT-LOCK, NI Price: $2.29
22 1-633131 YOKE-LINKAGE, BRAKE Price: $14.99
22 73800500 Nut Hex Lock W/Ins 5/16-18 Price: Call Us
