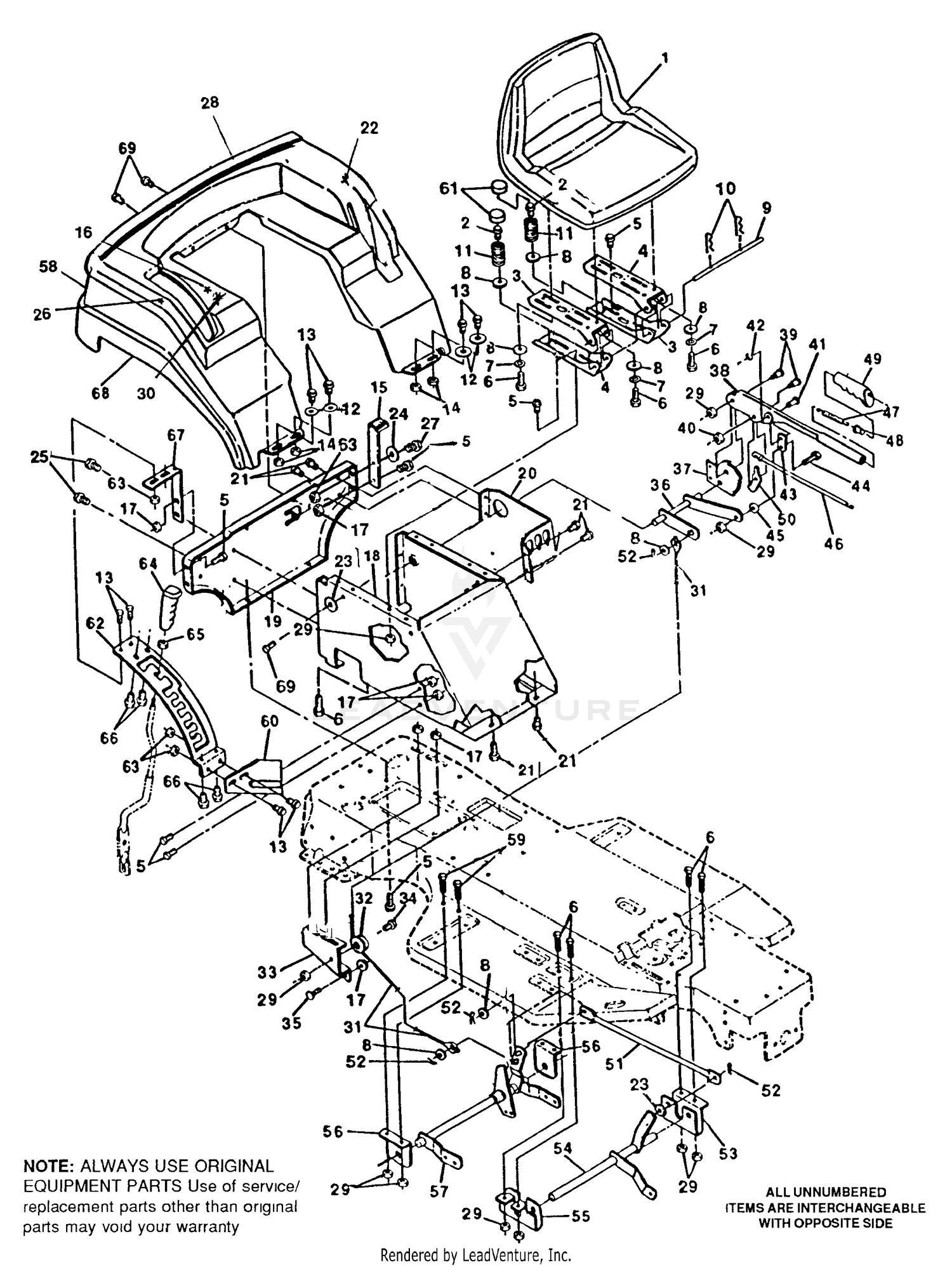

| Ref | Part Number | Description |
|---|
| 1 |
310384 |
Seat Price: Call Us |
| 1 |
92-4087 |
DECAL-DISPLAY Price: $29.67 |
| 2 |
451814 |
Screw, 5/16 18 x .63 Price: Call Us |
| 3 |
305991 |
Channel, Seat L.H. Price: Call Us |
| 4 |
304480 |
Channel, Seat R.H. Price: Call Us |
| 5 |
56030 |
Screw, Hx Hd, Wd Fl 5/16-18 x 3/4 In. Price: Call Us |
| 6 |
122007 |
Screw, Hx Hd, 5/16-18 x 3/4 In. Price: Call Us |
| 7 |
120638 |
Washer, Lock 5/16 In. Price: Call Us |
| 8 |
120393 |
Washer, Flat, 11/32 In. Price: Call Us |
| 9 |
304481 |
Rod, Seat Support Price: Call Us |
| 10 |
36368 |
Hair Pin, .073 Dia. x 1.13 In. Price: Call Us |
| 11 |
305520 |
Seat Spring Price: Call Us |
| 12 |
1084 |
Washer, Flat, 9/32 In. Price: Call Us |
| 13 |
180018 |
Screw, Hx Hd, 1/4-20 x 5/8 In. Price: Call Us |
| 14 |
1502 |
Nut, Lock, 1/4-20 Thd. Price: Call Us |
| 15 |
306397 |
Fender Support, L. H. Price: Call Us |
| 16 |
316698 |
Decal, Husqvarna U.S.A.s Price: Call Us |
| 17 |
55273 |
Nut, Hx, Wd Fl, Lk 5/16-18 Thd. Price: Call Us |
| 18 |
304475 |
Seat Support Price: Call Us |
| 19 |
304476 |
Support, Fender & Seat Price: Call Us |
| 20 |
302208 |
Bracket, Support Engage Price: Call Us |
| 21 |
35497 |
Screw, Hx Wshr Hd Tap, 5/16-18 x 1/2 In. Price: Call Us |
| 22 |
311591 |
Decal, Decal Height EURO Elec/Clutch Price: Call Us |
| 23 |
274517 |
Flatwasher, 13/32 In. Price: Call Us |
| 24 |
120385 |
Flatwasher Price: Call Us |
| 25 |
50634 |
Screw, Tap, 5/16-18 x 7/8 1 Price: Call Us |
| 26 |
307764 |
Decal, Gear Shift Neutral EURO Price: Call Us |
| 27 |
180020 |
Screw, 1/4-20 x 3/4 In Price: Call Us |
| 28 |
311724 |
Decal, Fender Rear, Hood Husq. Price: Call Us |
| 29 |
1498 |
Nut, Hx Ctrlk, 5/16-18 Thd. Price: Call Us |
| 30 |
307763 |
Decal, Gear Shift 6 Speed EURO Price: Call Us |
| 31 |
303227 |
Cable, Deck Lift Price: Call Us |
| 32 |
48306 |
Pulley Price: Call Us |
| 33 |
303230 |
Assembly, Pulley Bracket Price: Call Us |
| 34 |
305522 |
Shoulder Bolt, 5/16-18 Thd. Price: Call Us |
| 35 |
126211 |
Bolt, Carriage, 5/16-18 x 5/8 In. Price: Call Us |
| 36 |
302205 |
Assembly, Upper Shaft Price: Call Us |
| 37 |
302383 |
Quadrant Price: Call Us |
| 38 |
9143 |
Lift Lever Price: Call Us |
| 39 |
300171 |
Shoulder Bolt, 5/16-18 Thd. Price: Call Us |
| 40 |
44108 |
Nut, Hx Wd Fl Lk 5/16-18 Thd. Price: Call Us |
| 41 |
300310 |
Clevis Pin Price: Call Us |
| 42 |
300311 |
E-Ring Price: Call Us |
| 43 |
302357 |
Link Price: Call Us |
| 44 |
36149 |
Shoulder Bolt, 5/16-18 Thd. Price: Call Us |
| 45 |
45602 |
Washer Price: Call Us |
| 46 |
58330 |
Actuator Rod Price: Call Us |
| 47 |
58326 |
Spring, Height Adjust Price: Call Us |
| 48 |
58325 |
Knob, Height Adjust Price: Call Us |
| 49 |
304730 |
Handle, Lift Price: Call Us |
| 50 |
301239 |
Pawl, Height Adjust Price: Call Us |
| 51 |
302380 |
Tie Rod Price: Call Us |
| 52 |
121222 |
Cotter Pin Price: Call Us |
| 53 |
308339 |
Bracket, L.H. Front Hanger Price: Call Us |
| 54 |
308345 |
Assembly, Front Lift Shaft Price: Call Us |
| 55 |
308340 |
Bracket, R.H. Front Hanger Price: Call Us |
| 56 |
308343 |
Bracket, Hanger Price: Call Us |
| 57 |
308955 |
Assembly, Rear Lift Shaft Price: Call Us |
| 58 |
316625 |
Decal Shift-n-go ( Husq. ). Price: Call Us |
| 59 |
180075 |
Screw, Hx Hd, 5/16-18 x 5/8 In. Price: Call Us |
| 60 |
306401 |
Support, Shift Plate Price: Call Us |
| 61 |
56907 |
Cover, Seat Spring Price: Call Us |
| 62 |
306294 |
Quadrant Price: Call Us |
| 63 |
51335 |
Nut, Hx, Wd Fl Lk, 1/4-20 Thd. Price: Call Us |
| 64 |
304728 |
Handle Price: Call Us |
| 65 |
120377 |
Nut, Hx 3/8-16 Thd. Price: Call Us |
| 66 |
300302 |
Screw, Hx Hd, Tap #10 x 1/2 In. Price: Call Us |
| 67 |
306399 |
Fender Support, R. H. Price: Call Us |
| 68 |
316329 |
Fender Price: Call Us |
| 69 |
995338 |
Screw, Hx, Wshr Hd, Tap 1/4-20 x 5/8 In. Price: Call Us |
