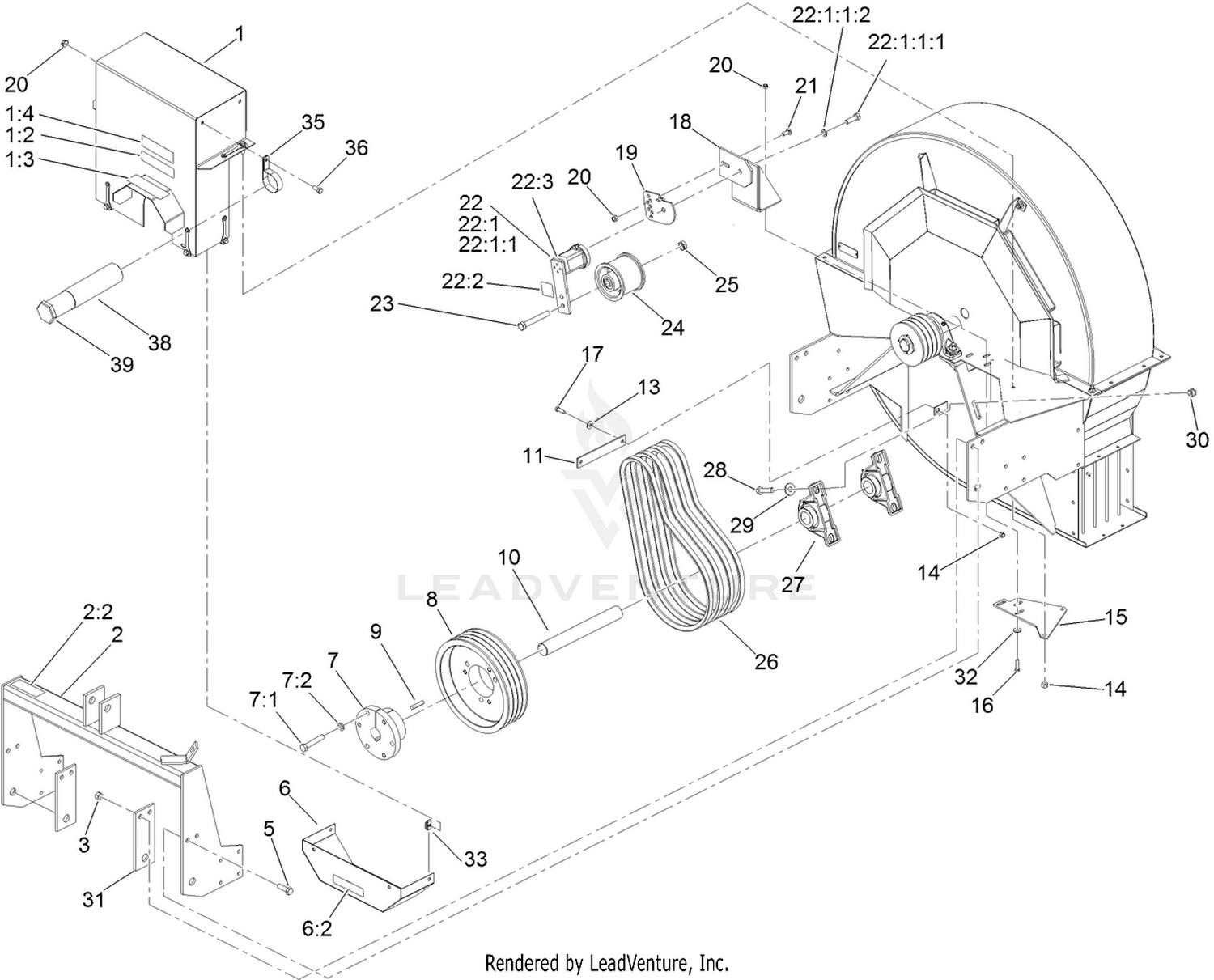

Drive Assembly — Parts Catalog

Ref	Part Number	Description
1	119-3011	SHIELD-BELT Price: $410.70
2	105-0714	HITCH ASM Price: $358.10
3	99-5107	NUT-LOCK Price: $1.77
5	325-6	SCREW-HH Price: $1.42
6	105-0686	SHIELD-LOWER Price: $136.26
7	106-0361	BUSHING-PULLEY Price: $230.33
8	106-0356	PULLEY Price: $918.50
9	41-004-5241	KEY Price: $20.53
10	LDB12100	SHAFT-INPUT Price: $78.92
11	LDB15700-01	STABILIZER-SHIELD Price: $11.40
13	3256-23	WASHER-PLAIN Price: $0.28
14	104-8300	NUT-HF, NI Price: $0.39
15	LDB14200-01	SUPPORT-DECK Price: $23.04
16	323-8	SCREW-HH Price: $1.20
17	HY3225	DISCONTINUED This part replaces 322-5. Price: Call Us
18	LDB13200-01	MOUNT-IDLER Price: $79.97
19	105-4787-01	STABILIZER-TENSIONER Price: $20.67
20	104-8301	NUT-HF, NI Price: $1.09
21	3231-2	BOLT-CARR Price: $0.81
22	106-0334	IDLER TENSIONER ASM Price: $432.88
23	3214-15	SCREW-HH Price: $10.88
24	105-4821	IDLER-PULLEY Price: $466.07
25	3220-6	NUT-JAM Price: $1.25
26	LDB13000	V-BELT Price: $129.89
27	105-0621	BEARING-BLOCK, PILLOW Price: $122.49
28	325-9	SCREW-HH Price: $1.87
29	3256-6	WASHER-FLAT Price: $0.34
30	99-5107	NUT-LOCK Price: $1.77
31	LDB10300-01	STIFFENER-HITCH Price: $16.15
32	3256-4	WASHER-FLAT Price: $0.28
33	94-2413	NUT-U Price: $1.79
35	2412-133	CLAMP-R Price: $3.19
36	323-5	SCREW-HH Price: $0.41
38	104-7050	TUBE-MANUAL Price: $8.76
