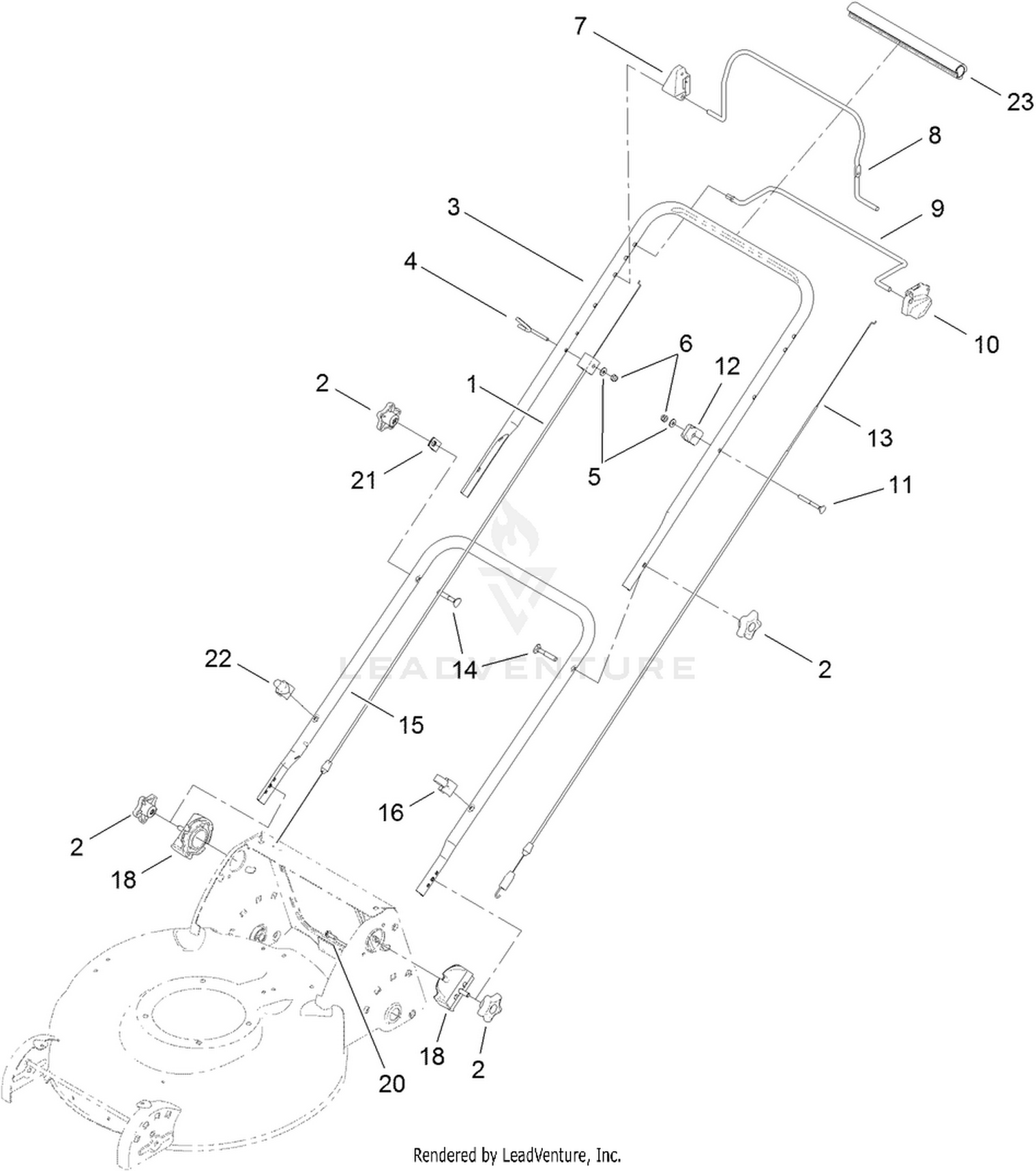

Handle Assembly
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 104-8677 | CABLE-BRAKE Price: $17.50 |
| 2 | 117-5976 | KNOB-HANDLE Price: $2.17 |
| 3 | 104-8680-05 | HANDLE-UPPER Price: $42.92 |
| 4 | 106-8330 | GUIDE-ROPE Price: $3.42 |
| 5 | 3256-1 | WASHER-FLAT Price: $0.39 |
| 6 | 3296-73 | NUT-LOCK, NI Price: $3.59 |
| 7 | 107-0757 | STOP-PIVOT Price: $3.28 |
| 8 | 105-6800-03 | BAIL-BRAKE Price: $14.88 |
| 9 | 105-1837-03 | BAIL-CONTROL Price: $23.38 |
| 10 | 104-8682 | STOP-PIVOT Price: $11.31 |
| 11 | 95-4453 | SCREW Price: $3.09 |
| 12 | 92-7729 | ANCHOR-CABLE, UPPER Price: $3.06 |
| 13 | 110-1834 | CABLE-TRACTION Price: Call Us |
| 14 | 92-2260 | SCREW-HANDLE Price: $2.83 |
| 15 | 110-1828-05 | HANDLE-LOWER Price: Call Us |
| 16 | 114-7988 | GUIDE-CABLE Price: $1.84 |
| 18 | 119-7021 | HANDLE MOUNT ASM Price: $12.36 |
| 20 | 49-2040 | SCREW-HWHTF Price: $1.99 |
| 21 | 2412-113 | CLAMP-R Price: $0.75 |
| 22 | 117-4141 | GUIDE-ROPE, LOWER Price: $9.07 |
