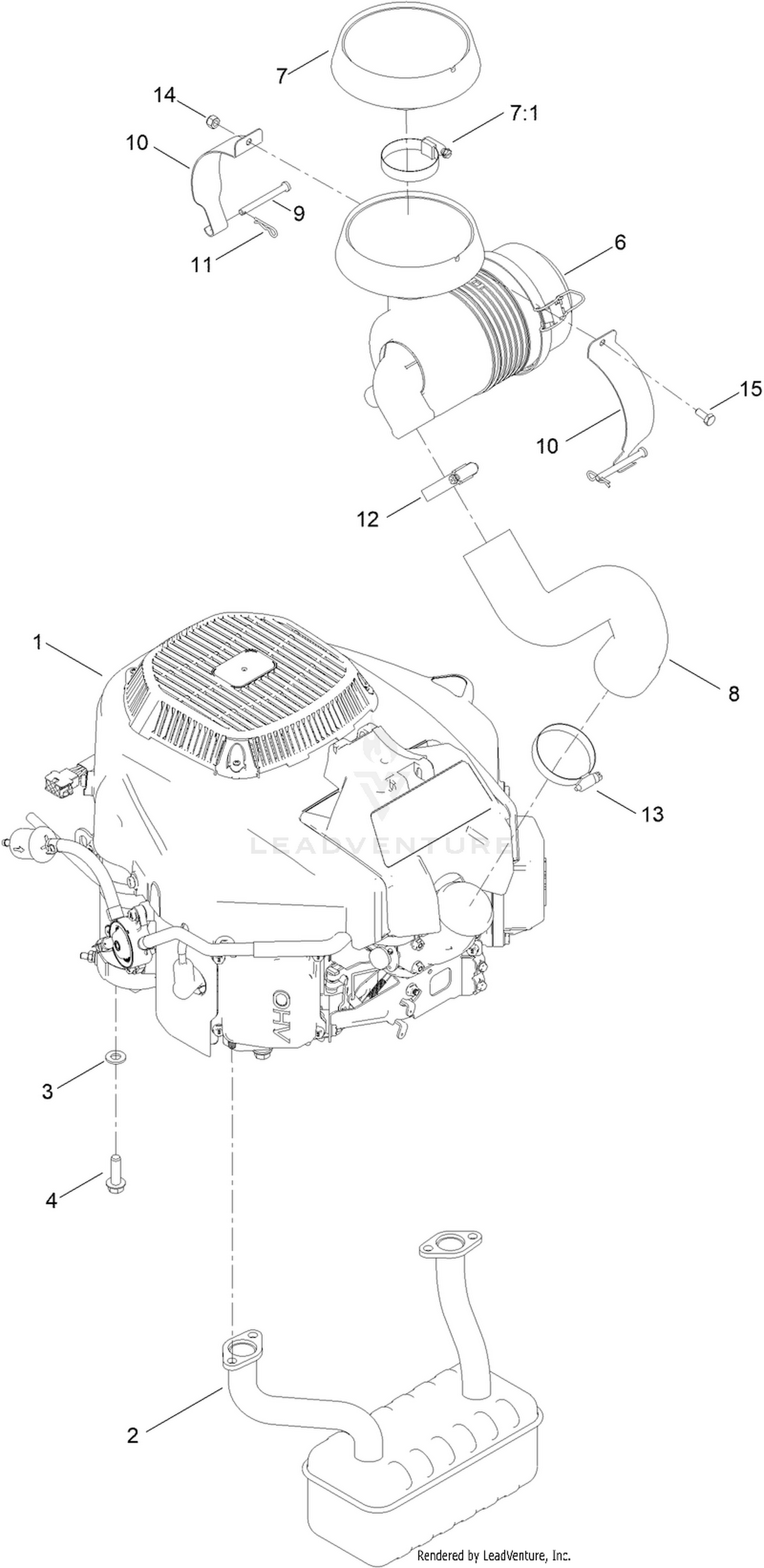

Engine and Muffler Assembly
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 136-7823 | ENGINE-2P77F-HD Price: $1,704.62 |
| 2 | 139-5865 | MUFFLER Price: $72.72 |
| 3 | 3256-24 | WASHER-FLAT Price: $0.28 |
| 4 | 32144-109 | SCREW-THD Price: $1.29 |
| 6 | 93-2190 | AIR CLEANER ASM Price: $217.17 |
| 7 | 136-7859 | RAIN CAP KIT Price: $23.88 |
| 8 | 136-9242 | HOSE-INTAKE Price: $18.85 |
| 9 | 137-2011 | PIN-CLEVIS Price: $0.96 |
| 10 | 136-9243 | STRAP-CANISTER, AIR Price: $6.91 |
| 11 | 1-806003 | PIN-COTTER Price: $1.39 |
| 12 | 1-643009 | CLAMP-HOSE Price: $8.80 |
| 13 | 2412-130 | CLAMP-HOSE Price: $2.57 |
| 14 | 137-3088 | NUT-HEX Price: $0.39 |
| 15 | 137-3041 | SCREW-HH Price: $0.39 |
