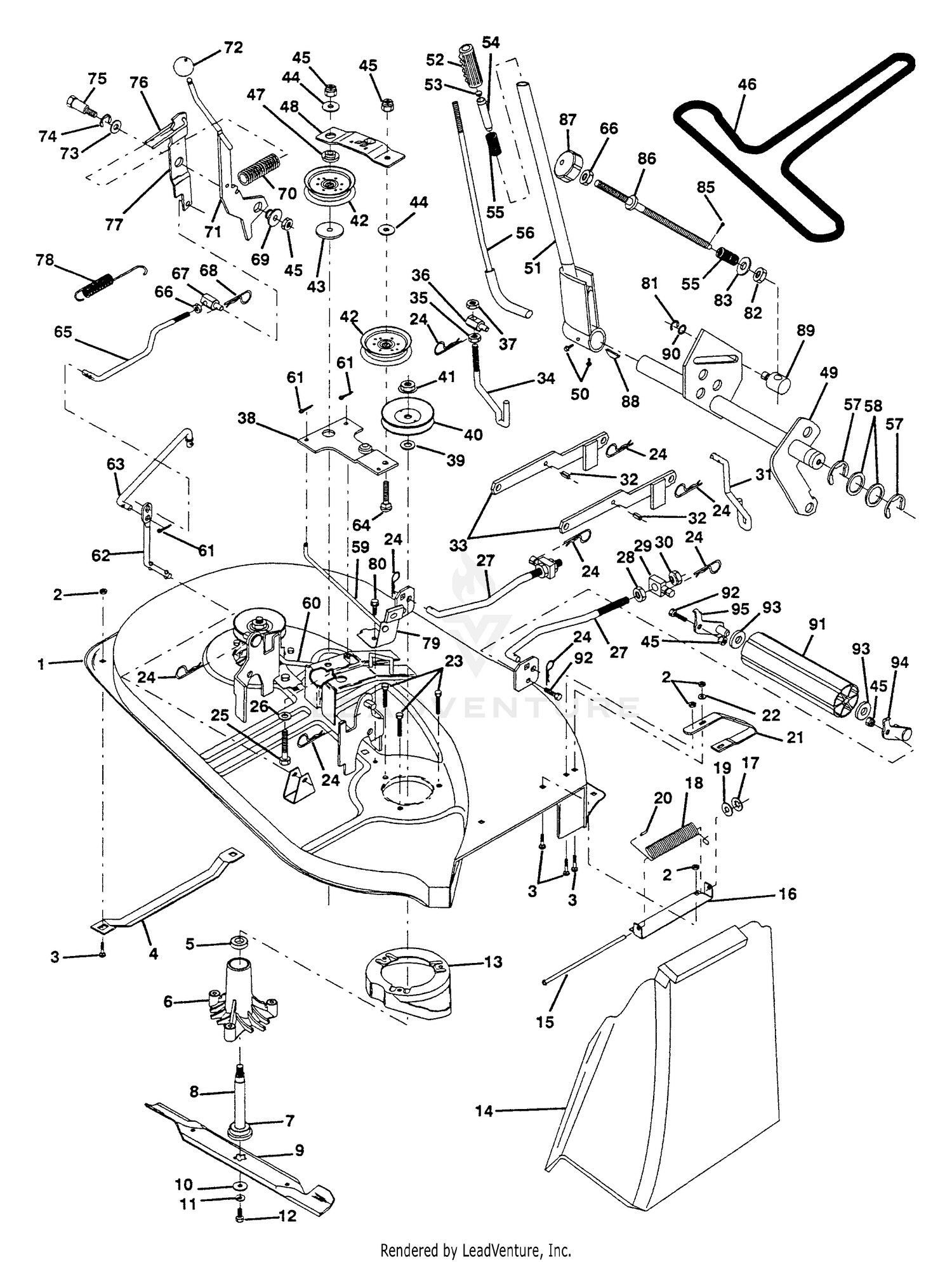

| Ref | Part Number | Description |
|---|
| 2 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 3 |
595901601 |
GSPW Bolts This part replaces 872140506. Price: $2.99 |
| 4 |
532007631 |
RUNNER LH This part replaces 532125074. Price: $14.99 |
| 5 |
532110485 |
BEARING Price: $11.99 |
| 6 |
532128774 |
HOUSING.MANDREL.VENTED (MACHD) Price: $29.99 |
| 7 |
532129895 |
BEARING.BALL.#6204.(MANDREL) Price: $9.99 |
| 8 |
532137646 |
KIT MANDREL W/NUT This part replaces 532133172. Price: $29.99 |
| 9 |
532138497 |
BLADE.HI.LIFT.38" This part replaces 532127842. Price: $22.99 |
| 10 |
532140296 |
WASHER.BLADE This part replaces 532129962. Price: $5.99 |
| 11 |
596238701 |
Washers This part replaces 810030600. Price: $3.99 |
| 12 |
532850857 |
BLADE BOLT Price: $3.99 |
| 13 |
531167701 |
SERVICE KIT MANDREL STRIPPER This part replaces 532128961. Price: $6.99 |
| 14 |
532106736 |
SHIELD.DEFLECTOR.MOWER.38.BL Price: $36.99 |
| 15 |
532106735 |
ROD-HINGE T Price: $8.99 |
| 16 |
531155201 |
SERVICE KIT BRACKET BRACKET This part replaces 532105896. Price: $2.99 |
| 17 |
532110452 |
NUT PUSH M Price: $2.99 |
| 18 |
532123713 |
SPRING TORSION This part replaces 532106734. Price: $6.99 |
| 19 |
819111016 |
Washer 11/32 x 5/8 x 16 Ga. Price: $5.99 |
| 20 |
532105304 |
CAP-SLEEVE LT Price: $3.99 |
| 21 |
532128772 |
RUNNER.RH.38 Price: $6.99 |
| 22 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 819111216. Price: $2.99 |
| 23 |
817580520 |
BOLT.5/16-18X1.25 This part replaces 532078158. Price: $3.99 |
| 24 |
532124670 |
RETAINER-SPRNG RB Price: $5.99 |
| 25 |
874760636 |
BOLT This part replaces 874600636. Price: $4.99 |
| 26 |
596134901 |
GSPH This part replaces 819131312. Price: $2.99 |
| 27 |
532127218 |
FRONT LINK Price: $14.99 |
| 28 |
596433401 |
Nuts This part replaces 873350800. Price: $2.99 |
| 29 |
532175689 |
TRUNNION This part replaces 532130171. Price: $3.99 |
| 30 |
596433401 |
Nuts This part replaces 873680800. Price: $2.99 |
| 31 |
532127224 |
LINK.LIFT.RH Price: $24.99 |
| 32 |
532128763 |
PIN-SPRING Price: $3.33 |
| 33 |
532133710 |
LIFTING ARM Price: $41.99 |
| 34 |
532127223 |
LIFT LINK LH Price: $23.91 |
| 35 |
873610700 |
NUT.ASF.HEX.7/16 This part replaces 873360700. Price: $5.99 |
| 36 |
532132793 |
LIFT TRUNION This part replaces 532110447. Price: $4.99 |
| 37 |
873610700 |
NUT.ASF.HEX.7/16 This part replaces 873710700. Price: $5.99 |
| 38 |
531164901 |
SERVICE.KIT IDLER ARM This part replaces 532133840. Price: $11.99 |
| 39 |
532187690 |
WASHER.SPACER.MANDREL This part replaces 532129963. Price: $3.99 |
| 40 |
532173435 |
MANDREL.PULLEY.38.BRIGHT.ZINC This part replaces 532129206. Price: $19.99 |
| 41 |
532139729 |
KIT.NUT.FLANGE This part replaces 873050900. Price: $7.99 |
| 42 |
597025001 |
CLG This part replaces 532131494. Price: $22.99 |
| 43 |
532165723 |
SPACER.RETAINER.MOWER This part replaces 532122052. Price: $5.99 |
| 44 |
596134901 |
GSPH This part replaces 819131312. Price: $2.99 |
| 45 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 46 |
532144200 |
V-BELT TRIPATH This part replaces 532131290. Price: $39.99 |
| 47 |
532133502 |
SPACER.IDLER.ARM Price: $4.99 |
| 48 |
531150801 |
SERVICE KIT STIFFENER STIFFENE This part replaces 532133503. Price: $6.99 |
| 49 |
532131874 |
ASSY-SHAFT LIFT Price: $3.33 |
| 50 |
823180606 |
SCREW Price: $3.99 |
| 51 |
532121719 |
ROD ASS'Y LEVER Price: $33.83 |
| 52 |
532125631 |
GRIP HANDLE Price: $6.99 |
| 53 |
532125925 |
PLUNGER BUTTON KIT This part replaces 532124526. Price: $5.99 |
| 54 |
532125925 |
PLUNGER BUTTON KIT This part replaces 532122364. Price: $5.99 |
| 55 |
532002876 |
SPRING This part replaces 532124874. Price: $3.99 |
| 56 |
532121719 |
ROD ASS'Y LEVER Price: $33.83 |
| 57 |
812000022 |
E-RING Price: $3.99 |
| 58 |
819292016 |
Washer 29/32 x 1-1/4 x 16 Ga. Price: $6.99 |
| 59 |
532131288 |
BRAKE ROD RH Price: $6.99 |
| 60 |
532131289 |
BRAKE ROD LH Price: $12.99 |
| 61 |
596917601 |
Pins This part replaces 876020312. Price: $1.99 |
| 62 |
532133551 |
PIVOT ROD Price: $6.99 |
| 63 |
532133504 |
CLUTCH ROD SECONDARY Price: $9.99 |
| 64 |
596136201 |
Bolts This part replaces 872110614. Price: $3.99 |
| 65 |
531166401 |
SERVICE KIT CLUTCH ROD, CLUTCH This part replaces 532133550. Price: $22.99 |
| 66 |
873220600 |
NUT.HEX.3/8-16UNC This part replaces 873350600. Price: $4.99 |
| 67 |
532142028 |
TRUNNION.ADJUSTABLE.3/8-16 This part replaces 532133205. Price: $3.99 |
| 68 |
532004497 |
RETAINER M This part replaces 532124788. Price: $4.99 |
| 69 |
532127498 |
BUSHING.FLANGE.E-RING.GROOVE Price: $4.99 |
| 70 |
532153701 |
SPRING-CLUTCH (2 2 PW01) This part replaces 532128759. Price: $4.99 |
| 71 |
532131813 |
ASSY-ARM CLUTCH (PRIMARY) Price: $3.33 |
| 72 |
532132044 |
KNOB Price: $10.99 |
| 73 |
532121748 |
WASHER Price: $3.99 |
| 74 |
812000029 |
RING CLIP Price: $3.99 |
| 75 |
532128903 |
BOLT Price: $5.99 |
| 76 |
532127845 |
KEEPER SPRING Price: $4.16 |
| 77 |
532127847 |
ARM CLUTCH SECONDARY Price: $2.99 |
| 78 |
532131870 |
RETURN SPRING Price: $9.99 |
| 79 |
531165101 |
SERVICE KIT BRAKE ASSEMBLY BRA This part replaces 532130840. Price: $6.99 |
| 80 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 817490512. Price: $3.99 |
| 81 |
812000037 |
Ring, Klip Price: $4.99 |
| 82 |
532110807 |
NUT T Price: $3.99 |
| 83 |
819131016 |
WASHER Price: $2.99 |
| 85 |
596917601 |
Pins This part replaces 876020308. Price: $1.99 |
| 86 |
532110729 |
ROD LIFT LT Price: $18.99 |
| 87 |
532121891 |
HDLE ADJ LIFT Price: $4.99 |
| 88 |
532124997 |
KEY STD Price: $2.38 |
| 89 |
532110810 |
TRUNION LT Price: $17.99 |
| 90 |
819151216 |
Washer 15/32 x 3/4 x 16 Ga. Price: $2.45 |
| 91 |
532132264 |
NOSE ROLLER Price: $29.99 |
| 92 |
596564401 |
Bolts This part replaces 874760616. Price: $3.99 |
| 93 |
819171416 |
Washer 17/32 x 7/8 16 Ga. Price: $3.99 |
| 94 |
531154101 |
SERVICE KIT BRACKET BRACKET AS This part replaces 532132273. Price: $12.99 |
| 95 |
532175746 |
BRACKET ASM, ROLLER (L) This part replaces 532132274. Price: $7.99 |
| 532142820 |
DECK |
SER 38 This part replaces 532132378. Price: $672.99 532142820 |
