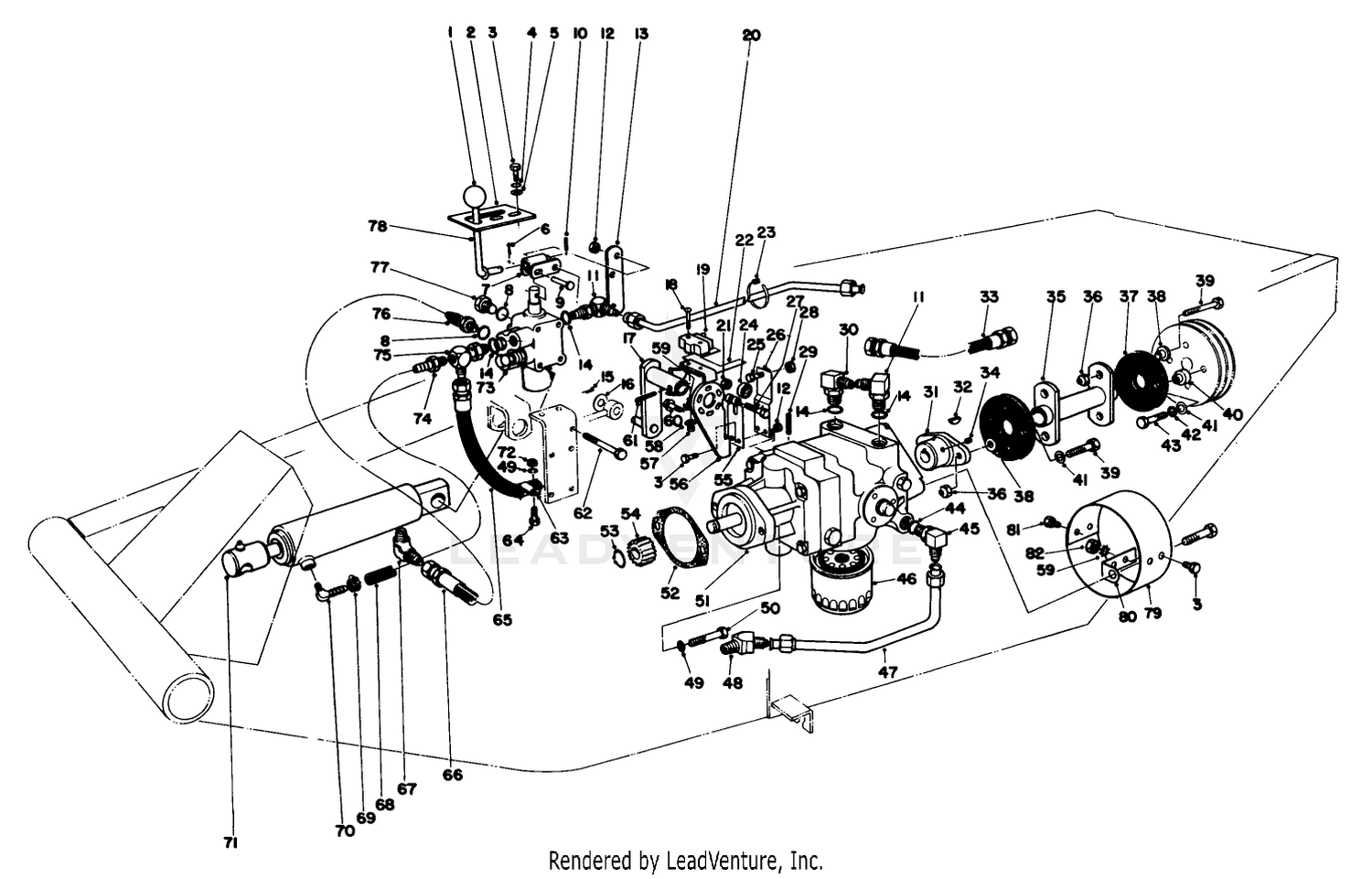

| Ref | Part Number | Description |
|---|
| 1 |
233-21 |
KNOB Price: $12.99 |
| 2 |
21-8640 |
LATCH-LEVER, VALVE Price: $33.47 |
| 3 |
321-4 |
SCREW-HH Price: $0.99 |
| 4 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 5 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 6 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 7 |
111332 |
SWITCH This part replaces 21-8590. Price: $10.99 |
| 8 |
237-78 |
O-RING Price: $3.85 |
| 9 |
283-17 |
PIN-CLEVIS Price: $4.89 |
| 10 |
32121-73 |
PIN-ROLL Price: $0.22 |
| 11 |
103-1802 |
FITTING-ELBOW, 90 DEG This part replaces 353-374. Price: $22.99 |
| 12 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 13 |
21-9010 |
LEVER-VALVE, PIVOT MOUNT Price: $28.78 |
| 14 |
237-42 |
O-RING Price: $2.78 |
| 15 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 16 |
3256-6 |
WASHER-FLAT Price: $0.34 |
| 17 |
28-9570-03 |
LEVER-PUMP This part replaces 28-9570. Price: $264.06 |
| 18 |
3249-11 |
SCREW-MACHINE Price: $0.54 |
| 19 |
29-6163 |
SWITCH-MICRO This part replaces 29-6160. Price: $91.23 |
| 20 |
23-1880 |
DISCONTINUED Price: Call Us |
| 21 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 22 |
46-8810 |
STOP-SPRING, LEAF Price: $9.17 |
| 23 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 24 |
251-259 |
BEARING-BALL Price: $13.67 |
| 25 |
3210-7 |
SCREW-HH Price: $0.61 |
| 26 |
29-6170 |
EXTENDED LEAF SPRING ASM Price: $45.56 |
| 27 |
322-17 |
SCREW-HH Price: $2.62 |
| 28 |
3219-2 |
NUT-HEX Price: $0.37 |
| 29 |
32121-6 |
PIN-ROLL, SLOTTED Price: $0.28 |
| 30 |
353-511 |
FITTING-HYD, 90 DEG Price: $31.93 |
| 31 |
110-9695 |
HUB-PUMP This part replaces 33-4380. Price: $55.09 |
| 32 |
3257-32 |
KEY-WOODRUFF Price: $2.52 |
| 33 |
33-4410 |
DISCONTINUED Price: Call Us |
| 34 |
3241-5 |
SCREW-SET Price: $0.61 |
| 35 |
46-6370 |
DISCONTINUED Price: Call Us |
| 36 |
32152-1 |
NUT-LOCK, CONE Price: $1.49 |
| 37 |
115-4523 |
COUPLING-RUBBER This part replaces 44-2230. Price: $52.81 |
| 38 |
125-9249 |
SPACER-COUPLER, RUBBER This part replaces 27-6600. Price: $2.15 |
| 39 |
322-6 |
SCREW-HH Price: $0.45 |
| 40 |
27-6590 |
SPACER-COUPLING, RUBBER Price: $13.38 |
| 41 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 42 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 43 |
322-8 |
SCREW-HH Price: $1.26 |
| 44 |
237-80 |
O-RING Price: $6.10 |
| 45 |
353-370 |
FITTING-ELBOW, 90 DEG Price: $74.99 |
| 46 |
23-2300 |
FILTER-OIL, TRANSMISSION Price: $11.03 |
| 47 |
23-1900 |
AXLE-PUMP TUBE ASM Price: $109.23 |
| 49 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 50 |
323-7 |
SCREW-HH Price: $0.65 |
| 51 |
48-1790 |
DISCONTINUED Price: Call Us |
| 52 |
41-8760 |
GASKET Price: $5.99 |
| 53 |
32120-72 |
RING-SNAP Price: $2.09 |
| 54 |
86-7220 |
GEAR-PINION This part replaces 23-4810. Price: $81.33 |
| 55 |
110-9650 |
LEAF SPRING ASM This part replaces 29-6150. Price: $33.06 |
| 56 |
29-6120-03 |
PUMP PLATE ASM This part replaces 29-6120. Price: $93.02 |
| 57 |
3217-16 |
NUT-HEX Price: $0.25 |
| 58 |
3254-9 |
WASHER-LOCK, INTERNAL Price: $0.25 |
| 59 |
3255-7 |
WASHER-LOCK/EXT Price: $1.39 |
| 60 |
49-2040 |
SCREW-HWHTF This part replaces 11-9760. Price: $1.99 |
| 61 |
32121-24 |
PIN-SPRING Price: $0.95 |
| 62 |
321-24 |
SCREW-HH This part replaces 321-23. Price: $2.31 |
| 63 |
2412-4 |
CLAMP-R Price: $4.22 |
| 64 |
323-6 |
SCREW-HH Price: $0.66 |
| 65 |
26-2380 |
DISCONTINUED Price: Call Us |
| 66 |
21-8580 |
DISCONTINUED Price: Call Us |
| 67 |
5-6560 |
DISCONTINUED Price: Call Us |
| 68 |
107-9297 |
HOSE-FUEL This part replaces 6-1190. Price: $7.29 |
| 69 |
2412-36 |
CLAMP-HOSE Price: $1.28 |
| 70 |
304-75 |
CONNECTOR-HOSE Price: $8.29 |
| 71 |
100-6587 |
HYDRAULIC CYLINDER ASM This part replaces 62-4250. Price: $1,163.83 |
| 72 |
32128-21 |
NUT-HF Price: $0.39 |
| 73 |
121-9070 |
VALVE ASM This part replaces 43-1710. Price: $458.43 |
| 74 |
304-73 |
FITTING-STRAIGHT Price: $12.59 |
| 75 |
21-4940 |
FITTING ASM Price: $79.78 |
| 76 |
353-375 |
FITTING-ELBOW, 90 Price: $42.42 |
| 77 |
353-512 |
PLUG Price: $15.26 |
| 78 |
21-8620-03 |
DISCONTINUED This part replaces 21-8620. Price: Call Us |
| 79 |
54-9300-03 |
COVER-SHAFT, PUMP This part replaces 54-9300. Price: $31.70 |
| 80 |
54-9290 |
BRACKET-MOUNTING Price: $16.99 |
| 81 |
321-2 |
SCREW-HH Price: $2.79 |
