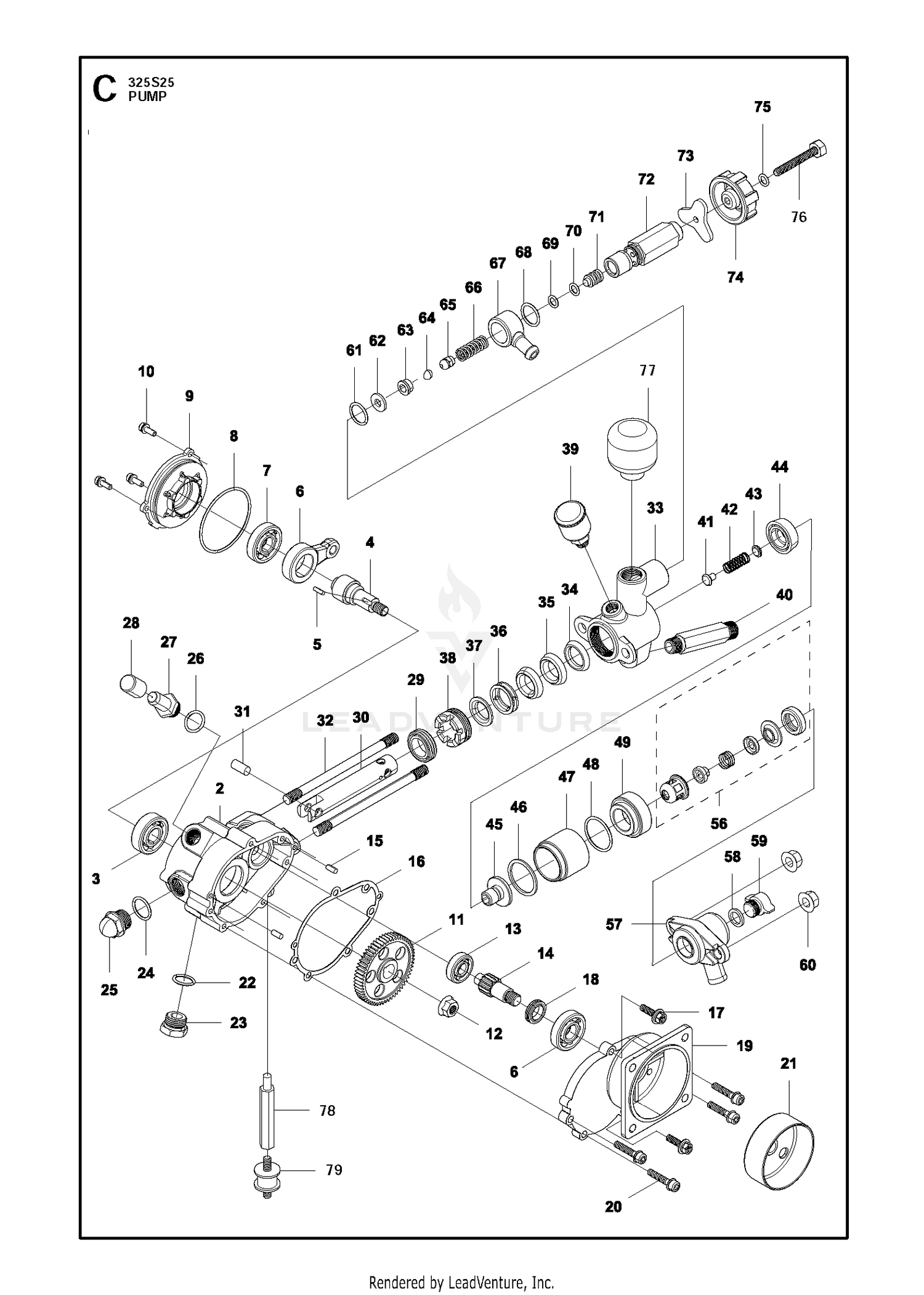

HYDRAULIC PUMP - MOTOR
Parts (71)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 574123101 | PUMP BODY Price: $18.83 |
| 3 | 574123201 | BEARING NO.6201 Price: $3.62 |
| 4 | 574123301 | CRANKSHAFT Price: $11.46 |
| 5 | 574123401 | KEY Price: $0.46 |
| 6 | 574123501 | CONNECTING Price: $8.31 |
| 7 | 574123601 | BEARING NO.6001 Price: $4.10 |
| 8 | 574123701 | O-RING Price: $0.60 |
| 9 | 574123801 | PUMP COVER Price: $5.27 |
| 10 | 574123901 | SCREW Price: $0.17 |
| 11 | 574124001 | REDUCTION GEAR Price: $7.61 |
| 12 | 574124101 | NUT Price: $0.12 |
| 13 | 574124201 | BEARING NO.609 Price: $4.79 |
| 14 | 574124301 | PINION SHAFT Price: $8.31 |
| 15 | 574124401 | PUMP BODY PIN Price: $0.60 |
| 16 | 574124501 | PACKING Price: $0.61 |
| 17 | 574124601 | SCREW Price: $3.04 |
| 18 | 574124701 | OIL SEAL Price: $1.11 |
| 19 | 574124801 | ENGINE COVER Price: $11.17 |
| 20 | 574124901 | SCREW Price: $0.58 |
| 21 | 574125001 | CLUTCH DRUM Price: $8.19 |
| 22 | 574125101 | O-RING Price: $0.05 |
| 23 | 574125201 | SCREW Price: $3.04 |
| 24 | 574125301 | O-RING Price: $0.24 |
| 25 | 574125401 | OIL MIRROR Price: $1.17 |
| 26 | 574125501 | O-RING Price: $0.05 |
| 27 | 574125601 | OIL BOLT Price: $6.44 |
| 28 | 574125701 | GROMMET Price: $0.24 |
| 29 | 574125801 | OIL SEAL Price: $1.11 |
| 30 | 574125901 | PLUNGER (PISTON) Price: $22.81 |
| 31 | 574126001 | PISTON PIN Price: $0.60 |
| 32 | 574126101 | BODY SCREW Price: $1.11 |
| 34 | 574126301 | V-PACKING Price: $2.28 |
| 35 | 574126401 | V-PACKING ASSY Price: $1.76 |
| 36 | 574126501 | GREASE PACKING Price: $3.51 |
| 37 | 574126601 | U-PACKING Price: $0.63 |
| 38 | 574126701 | ADJUSTING RING Price: $3.51 |
| 39 | 574126801 | GREASE CUP ASSY Price: $2.93 |
| 40 | 574126901 | OUTLET BOLT Price: $5.80 |
| 41 | 574127001 | SPRING SEAT Price: $0.17 |
| 42 | 574127101 | SPRING Price: $0.17 |
| 43 | 574127201 | PLATE Price: $0.99 |
| 44 | 574127301 | HARD RUBBER Price: $5.99 |
| 45 | 574127401 | PLUNGER SCREW Price: $7.99 |
| 46 | 574127501 | PACKING Price: $0.60 |
| 47 | 574127601 | SLEEVE Price: $16.37 |
| 48 | 574127701 | O-RING Price: $0.17 |
| 49 | 574127801 | VALVE SEAT Price: $0.23 |
| 56 | 574127901 | VALVE ASSY Price: $6.44 |
| 57 | 574128001 | SUCTION CHAMBER Price: $16.97 |
| 58 | 574128101 | O-RING Price: $0.01 |
| 59 | 574128201 | WING NUT Price: $0.60 |
| 60 | 574128301 | NUT Price: $1.76 |
| 61 | 574128401 | O-RING Price: $0.05 |
| 62 | 574129201 | WASHER Price: $0.12 |
| 63 | 574129401 | PACKING Price: $1.17 |
| 64 | 574129501 | PRESSURE BALL Price: $0.60 |
| 65 | 574129601 | SPRING SEAT Price: $0.60 |
| 66 | 574129701 | PRESSURE SPRING Price: $0.60 |
| 67 | 574129101 | OVERFLOW CONNECTOR Price: $0.24 |
| 68 | 574128501 | SET RING Price: $3.51 |
| 69 | 574129801 | O-RING Price: $0.05 |
| 70 | 574129801 | O-RING Price: $0.05 |
| 71 | 574129901 | REGULATOR SHAFT Price: $0.60 |
| 72 | 574128601 | PRESSURE PIPE Price: $11.63 |
| 73 | 574128701 | SET PLATE Price: $2.99 |
| 74 | 574128801 | PRESSURE PLATE Price: $0.60 |
| 75 | 574128901 | SET WASHER (2/set) Price: $2.99 |
| 76 | 574129001 | SET BOLT Price: $0.60 |
| 77 | 574130001 | AIR CHAMBER Price: $16.37 |
| 78 | 574130101 | STRUT BOLT Price: $1.76 |
| 79 | 574130201 | RUBBER CRANKCASE STAND Price: $1.76 |
