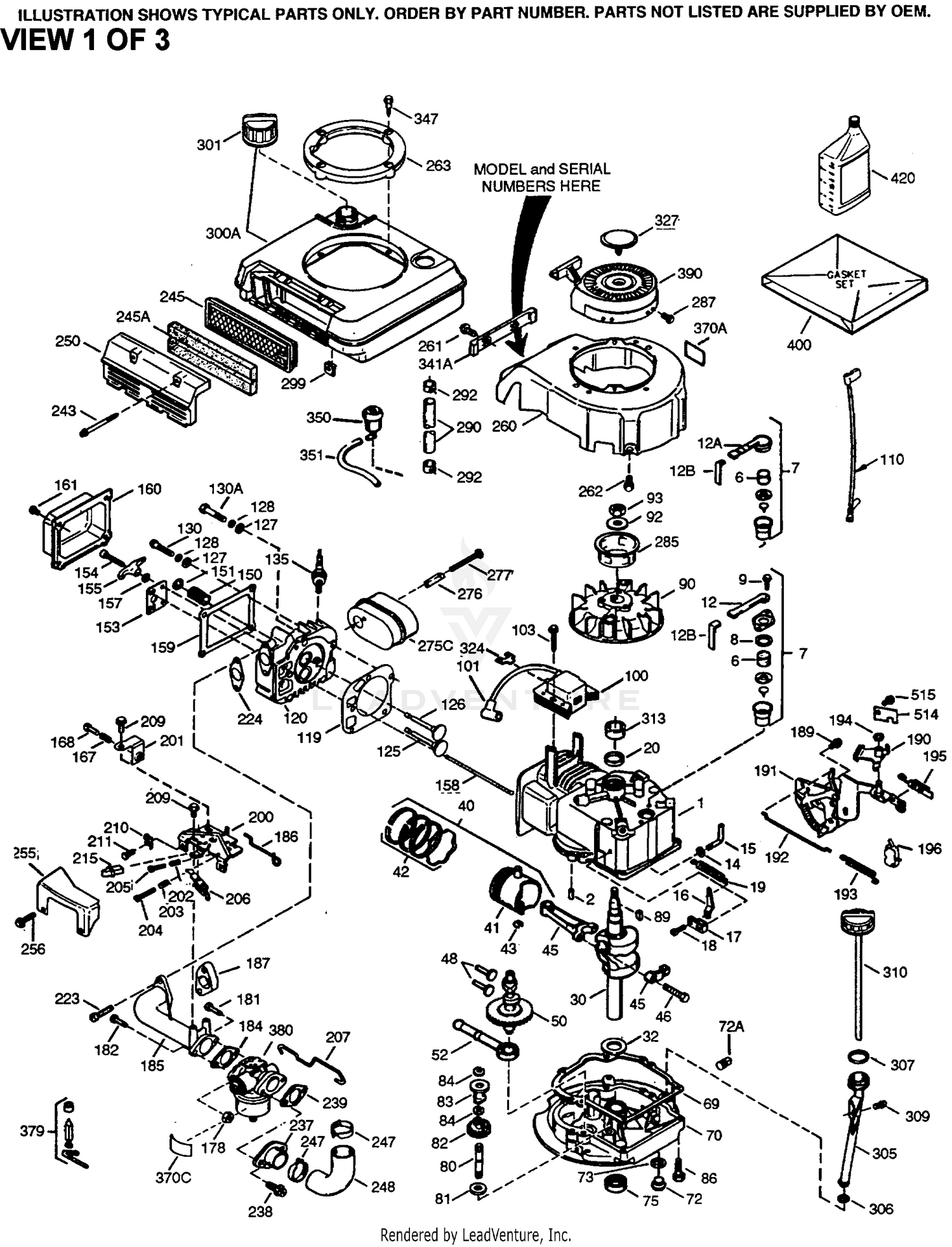

| Ref | Part Number | Description |
|---|
| 1 |
36574 |
CYLINDER Price: Call Us |
| 2 |
26727 |
DOWEL PIN Price: $1.26 |
| 6 |
33734 |
AIR CLEANER Price: $1.22 |
| 7 |
36557 |
BREATHER Price: $13.50 |
| 12A |
36558 |
COVER & TUBE Price: $7.26 |
| 12B |
34695 |
ELBOW Price: $1.18 |
| 14 |
28277 |
WASHER Price: $1.26 |
| 15 |
30589 |
GOVERNOR ROD Price: $3.89 |
| 16 |
32651 |
GOV LEVER Price: $1.26 |
| 17 |
31335 |
CLAMP Price: $1.26 |
| 18 |
651018 |
SCREW This part replaces 650548. Price: $1.18 |
| 19 |
36281 |
EXT SPRING Price: $0.88 |
| 20 |
32600 |
OIL SEAL Price: $4.80 |
| 30 |
37522 |
CRANKSHAFT This part replaces 36587. Price: $83.03 |
| 40 |
35544A |
PISTON ASSY STD Price: $43.10 |
| 40 |
35545A |
PISTON ASSY 010 Price: Call Us |
| 40 |
35546 |
PISTON ASSY 020 Price: $52.46 |
| 41 |
35541 |
PISTON & PIN ST Price: $32.31 |
| 41 |
35542 |
PISTON & PIN 10 Price: $31.11 |
| 41 |
35543 |
PISTON & PIN 20 Price: $31.11 |
| 42 |
35544A |
PISTON ASSY STD This part replaces 35547A. Price: $43.10 |
| 42 |
35548A |
RING SET 010 Price: Call Us |
| 42 |
35549 |
RING SET 020 Price: Call Us |
| 43 |
20381 |
RET RING Price: $1.26 |
| 45 |
32875A |
CONN ROD Price: $33.84 |
| 46 |
32610A |
SCREW Price: $1.26 |
| 48 |
35616A |
VALVE LIFTER This part replaces 35616. Price: $2.63 |
| 50 |
36573 |
CAMSHAFT Price: $31.78 |
| 52 |
29914 |
OIL PUMP Price: $6.54 |
| 69 |
37609 |
GASKET This part replaces 35261. Price: $2.25 |
| 70 |
37608A |
MTG FLANGE This part replaces 34311D. Price: $55.26 |
| 72 |
36083 |
DRAIN PLUG Price: $4.95 |
| 75 |
27897 |
OIL SEAL Price: $5.95 |
| 80 |
30574A |
GOV SHAFT Price: $5.00 |
| 81 |
651080 |
WASHER This part replaces 30590A. Price: $1.24 |
| 82 |
30591 |
GEAR Price: $9.93 |
| 83 |
30588A |
GOV SPOOL Price: $1.26 |
| 86 |
650488 |
SCREW Price: $1.25 |
| 89 |
611004 |
KEY Price: $1.10 |
| 90 |
611299 |
FLYWHEEL Price: $52.41 |
| 92 |
650815 |
WASHER Price: $1.25 |
| 93 |
650816 |
NUT Price: $2.95 |
| 100 |
34443D |
LAMINATION This part replaces 34443A. Price: $35.95 |
| 101 |
610118 |
PLUG COVER Price: $4.45 |
| 103 |
651007 |
SCREW Price: $1.17 |
| 110 |
37047 |
GROUND WIRE This part replaces 34961. Price: $1.26 |
| 119 |
36575 |
GASKET Price: $6.54 |
| 120 |
36576 |
CYL HEAD Price: Call Us |
| 125 |
36471 |
EXH VALVE STD Price: $9.82 |
| 125 |
36472 |
EXH VALVE OS Price: Call Us |
| 126 |
29315C |
EX/INT VALVE OS Price: Call Us |
| 126 |
37711 |
INT VALVE ST Price: $9.63 |
| 127 |
650691 |
WASHER Price: $1.25 |
| 128 |
730324 |
WASHER KIT This part replaces 650690. Price: $6.86 |
| 130 |
650912 |
SCREW Price: $1.26 |
| 130A |
650999 |
SCREW Price: $2.62 |
| 135 |
34645 |
SPARK PLUG Price: $2.34 |
| 150 |
31672 |
VALVE SPRING Price: $1.26 |
| 151 |
31673 |
VALVE CAP Price: $1.23 |
| 153 |
35623 |
GUIDE Price: Call Us |
| 154 |
650913 |
STUD Price: $1.26 |
| 155 |
35624A |
ROCKER ARM Price: $19.02 |
| 157 |
650914 |
NUT Price: $1.22 |
| 158 |
36807 |
PUSH ROD KIT This part replaces 36577. Price: $6.54 |
| 159 |
35626 |
GASKET Price: $2.62 |
| 160 |
35627 |
COVER Price: $11.40 |
| 161 |
30063 |
SCREW Price: $1.26 |
| 178 |
29752 |
NUT Price: $1.26 |
| 182 |
30088A |
SCREW Price: $1.26 |
| 184 |
26756 |
Gasket Price: $2.95 |
| 185 |
36579 |
INTAKE PIPE Price: $29.06 |
| 186 |
34337 |
GOV LINK Price: $1.26 |
| 187 |
36580 |
SPACER Price: $5.21 |
| 189 |
650839 |
SCREW Price: $1.20 |
| 191 |
36559B |
BRACKET ASSY This part replaces 36559. Price: $26.00 |
| 195 |
610973 |
TERMINAL Price: $2.60 |
| 200 |
33131A |
CONTROL ASSY Price: $23.80 |
| 202 |
36482 |
COMP SPRING Price: $2.80 |
| 203 |
31342 |
COMP SPRING Price: $3.95 |
| 204 |
651029 |
SCREW This part replaces 650549. Price: $1.22 |
| 205 |
651019 |
SCREW This part replaces 650777. Price: $1.22 |
| 206 |
610973 |
TERMINAL Price: $2.60 |
| 207 |
34336A |
GOV LINK This part replaces 34336. Price: $1.23 |
| 209 |
30200 |
SCREW Price: $3.25 |
| 210 |
27793 |
CLIP Price: $1.26 |
| 211 |
28942 |
SCREW Price: $0.88 |
| 223 |
651043 |
SCREW Price: $1.26 |
| 223A |
651044 |
SCREW Price: $1.26 |
| 224 |
36581 |
GASKET Price: $0.88 |
| 238 |
650932 |
SCREW Price: $2.00 |
| 239 |
34338 |
GASKET Price: $1.23 |
| 245 |
35066 |
AIR CLEANER Price: $3.95 |
| 250 |
35065 |
CLEANER COV This part replaces 35986. Price: $6.09 |
| 260 |
36583 |
BLOWER HSG Price: $29.31 |
| 261 |
30063 |
SCREW Price: $1.26 |
| 262 |
650831 |
SCREW Price: $1.20 |
| 263 |
36280 |
RING Price: $3.89 |
| 277 |
650988 |
SCREW Price: $2.89 |
| 285 |
35000A |
STARTER CUP Price: $6.54 |
| 287 |
650926 |
SCREW Price: $0.88 |
| 290 |
29774 |
FUEL LINE Price: $2.78 |
| 292 |
26460 |
CLAMP Price: $1.19 |
| 301 |
37844 |
FUEL CAP This part replaces 36246. Price: $4.19 |
| 305 |
36270 |
FILLER TUBE Price: $12.36 |
| 306 |
34265 |
GASKET Price: $1.15 |
| 307 |
36272 |
SEAL Price: $3.89 |
| 309 |
650936 |
SCREW Price: $1.22 |
| 310 |
36271 |
DIPSTICK Price: $12.53 |
| 313 |
34080 |
SPACER Price: $1.26 |
| 324 |
33177 |
TERMINAL Price: $1.26 |
| 327 |
35392 |
STARTER PLUG Price: $1.22 |
| 341A |
36578 |
BRACKET Price: $6.54 |
| 370A |
36261 |
DECAL Price: Call Us |
| 380 |
632713A |
CARBURETOR This part replaces 632713. Price: Call Us |
| 390 |
590785 |
STARTER This part replaces 590694. Price: $33.49 |
| 400 |
36584A |
GASKET SET This part replaces 36584. Price: $10.75 |
| 420 |
730225A |
OIL SAE 30 This part replaces 730225. Price: $3.38 |
| 514 |
36458A |
LOCK OUT DEVICE This part replaces 36458. Price: $3.89 |
| 515 |
650926 |
SCREW Price: $0.88 |
