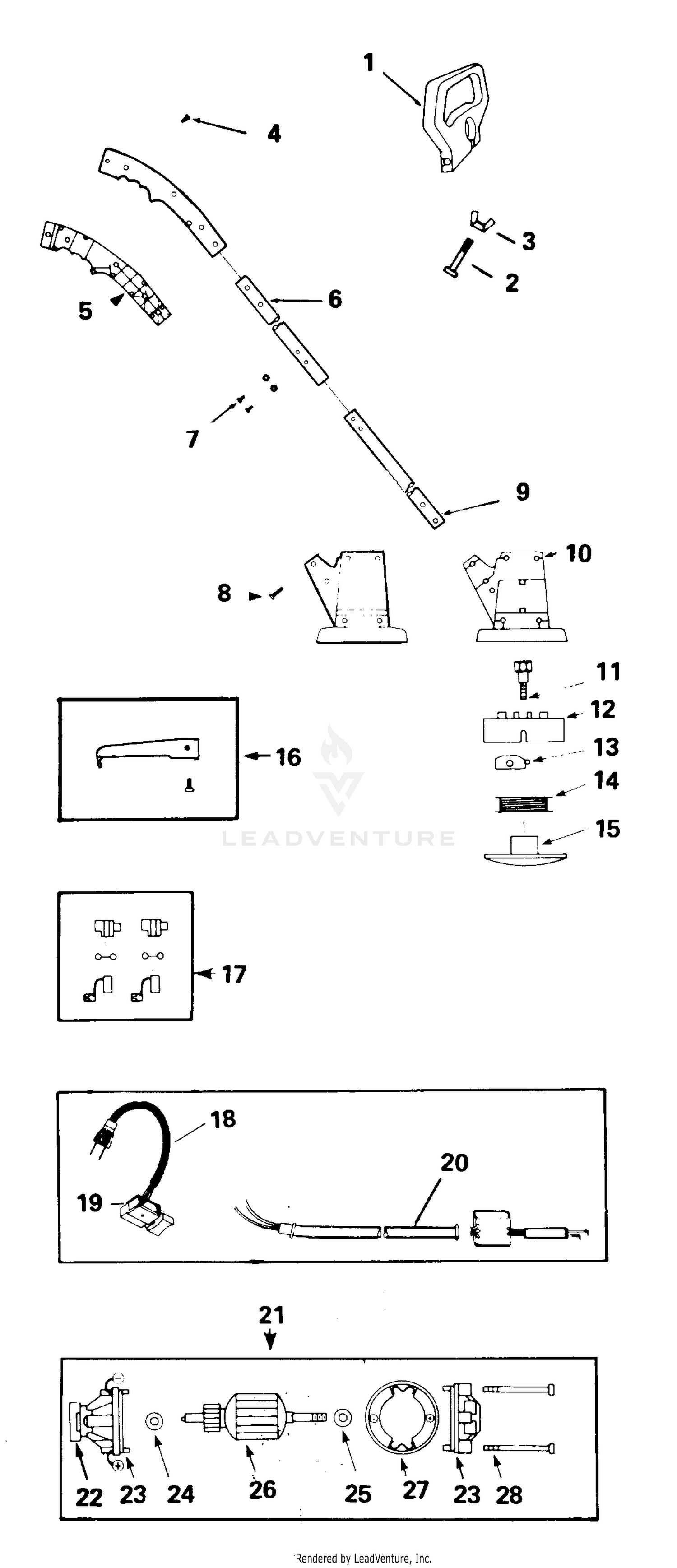

TRIMMER ASSEMBLY — Parts Catalog

Ref	Part Number	Description
1	3253-7	WASHER-LOCK Price: $0.27
1	530092637	ASSIST HANDLE Price: $3.33
2	3234-6	SCREW-HHF This part replaces 32144-13. Price: $3.19
2	530092638	BOLT Price: $3.33
3	10-2780	DISCONTINUED Price: Call Us
3	530092049	WING NUT Price: $3.33
4	323-6	SCREW-HH Price: $0.66
4	530092598	SCREW Price: $3.33
5	10-2820	DISCONTINUED Price: Call Us
5	530092639	TRIGGER HANDLE SET Price: $3.33
6	530092641	TUBE, UPPER Price: $3.33
6	603773	LOCKNUT This part replaces 32146-2. Price: $2.09
7	530092626	TUBE FASTENER KIT Price: $3.33
8	530092624	SCREW Price: $3.33
9	530092644	TUBE, LOWER Price: $3.33
10	530092694	MOTOR HOUSING SET Price: $3.33
11	530092646	ADAPTOR Price: $3.33
12	530092695	HUB w/LINE SAVERS Price: $3.33
13	530093216	LINE SAVER Price: $1.99
14	952701513	SPOOL, WOUND Price: Call Us
15	530092651	BALL LOCK Price: $3.33
16	530092669	LINE LIMITER KIT Price: $3.33
17	530092652	BRUSH KIT Price: $3.33
18	530090866	POWER CORD PIGTAIL Price: $3.33
19	530090824	SWITCH Price: $3.33
20	530092698	HARNESS w/RECTIFIER Price: $3.33
21	530092656	MOTOR Price: $3.33
22	530092657	INSULATOR Price: $3.33
23	530092658	END BELL SET Price: $3.33
24	530092659	WASHER-THRUST, .025" Price: $3.33
25	530092661	WASHER-THRUST, .010" Price: $3.33
26	530092662	ARMATURE Price: $64.99
27	530092663	FIELD ASSEMBLY Price: $3.33
