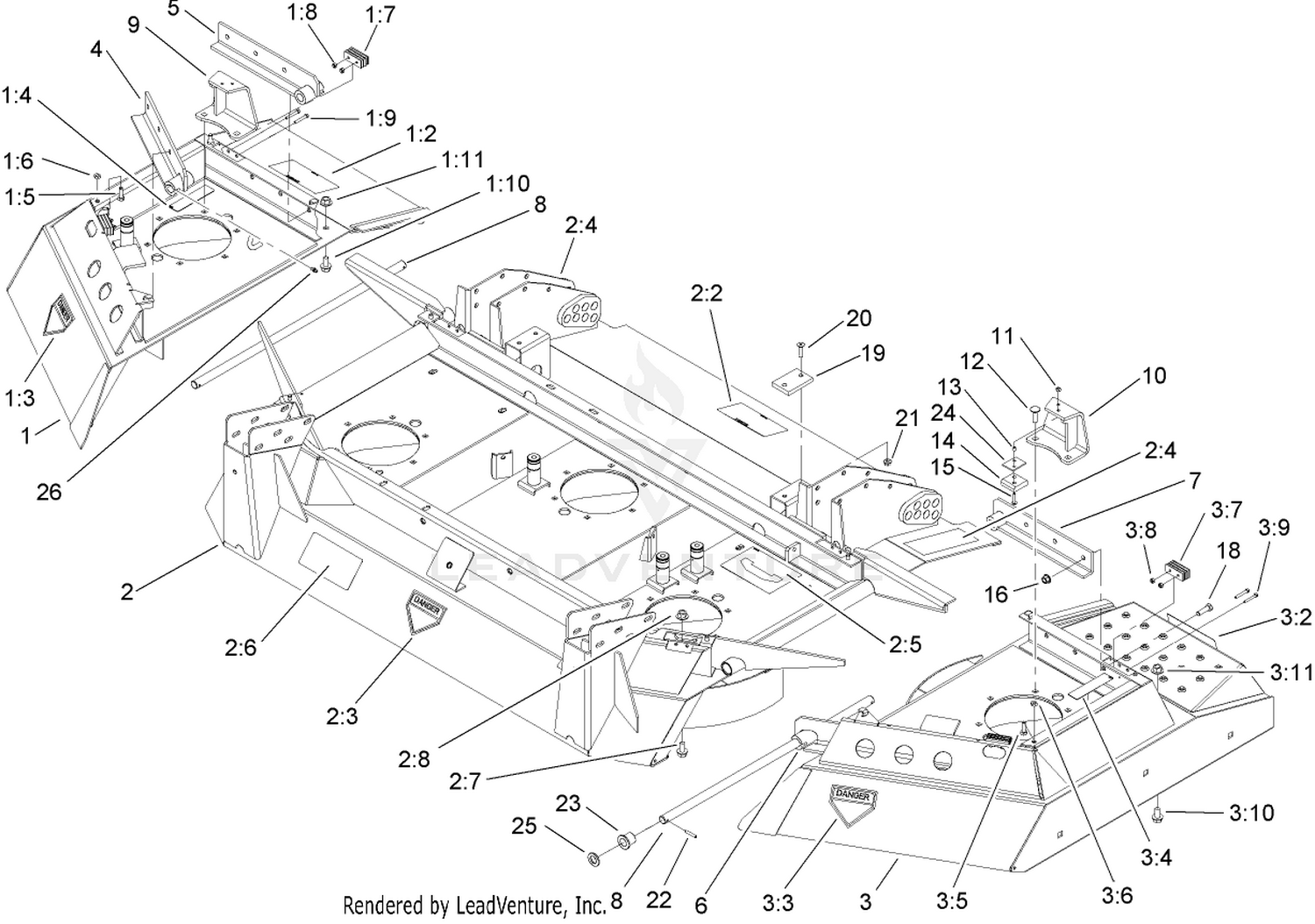

Deck and Wing Assembly
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 106-0037 | RH WING DECK ASM Price: $1,976.13 |
| 2 | 106-0038 | CENTER DECK ASM Price: $6,517.73 |
| 3 | 106-0039 | LH WING DECK ASM Price: $1,850.37 |
| 4 | 69-6690-01 | HINGE-FRONT, RIGHT Price: $130.62 |
| 5 | 69-6710-01 | HINGE-REAR, RIGHT Price: $143.11 |
| 6 | 69-6640-01 | HINGE-FRONT, LEFT Price: $157.33 |
| 7 | 69-6670-01 | HINGE-REAR, LEFT Price: $162.98 |
| 8 | 69-6900 | SHAFT-HINGE Price: $62.29 |
| 9 | 94-6762-01 | BRACKET-RH Price: $98.42 |
| 10 | 94-6760-01 | BRACKET-LH Price: $94.57 |
| 11 | 3296-2 | NUT-LOCK, NI Price: $1.89 |
| 12 | 3231-4 | SCREW-CARR Price: $3.59 |
| 13 | 40-9520 | SPACER Price: $0.33 |
| 14 | 40-0330 | CUSHION-RUBBER Price: $8.08 |
| 15 | 32122-28 | SCREW Price: $5.02 |
| 16 | 32128-36 | NUT-HF Price: $1.56 |
| 18 | 323-6 | SCREW-HH Price: $0.66 |
| 19 | 69-9290 | PAD-BUMPER Price: $9.52 |
| 20 | 32108-103 | SCREW-FH Price: $0.68 |
| 21 | 32128-20 | NUT-HF Price: $0.99 |
| 22 | 32121-6 | PIN-ROLL, SLOTTED Price: $0.28 |
| 23 | 92-3162 | BUSHING Price: $2.78 |
| 24 | 42-6200 | SHIM-CUSHION Price: $9.09 |
| 25 | 95-3297 | BEARING-THRUST Price: $4.11 |
