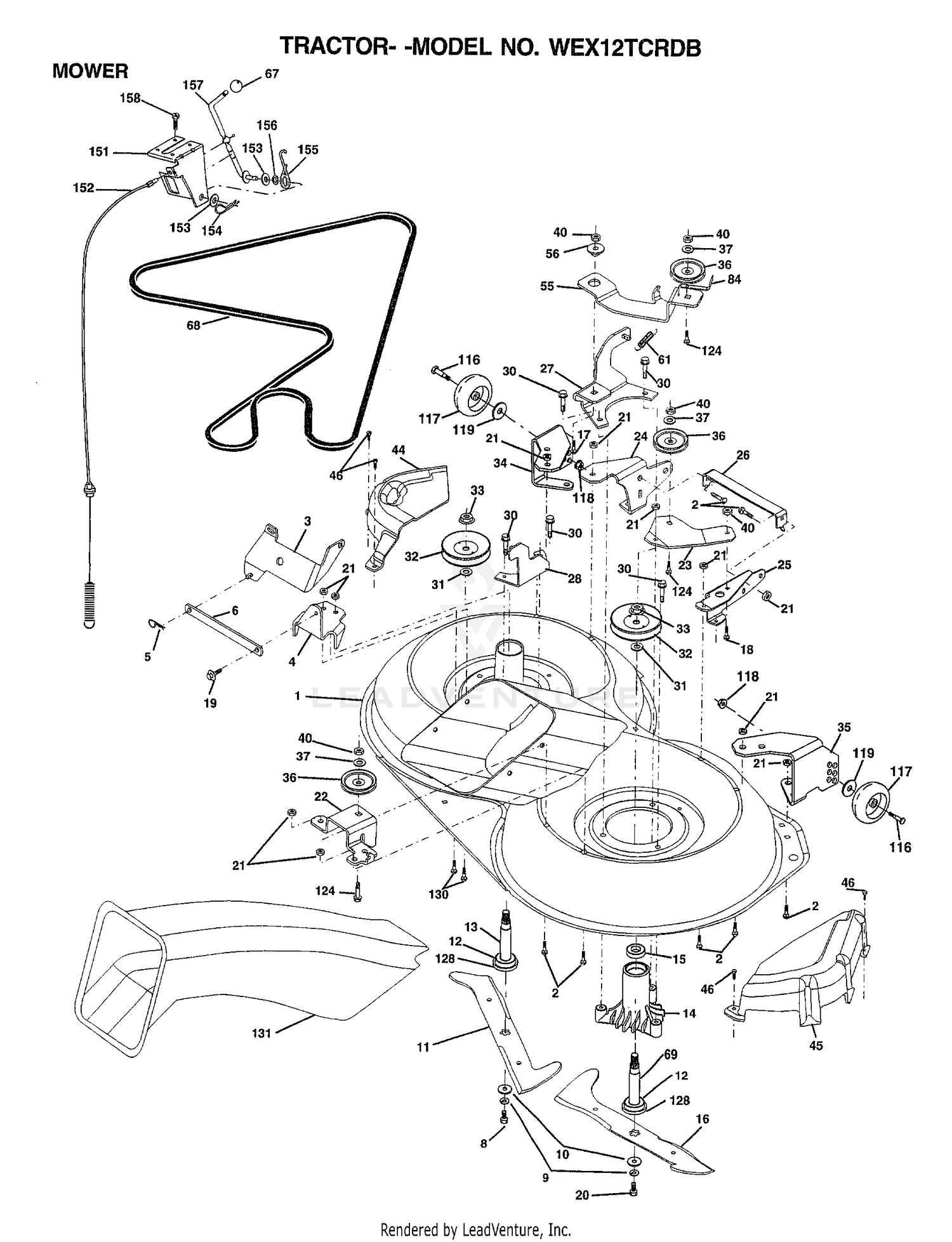

| Ref | Part Number | Description |
|---|
| 1 |
165552 |
HOUSING.ASM.MOWER Price: Call Us |
| 1 |
60-3820 |
SPINDLE Price: $1,516.53 |
| 2 |
60-3830 |
SEAL Price: $60.55 |
| 2 |
72140506 |
BOLT Price: Call Us |
| 3 |
165569 |
BRKT.ASM.S-BAR.CHASSIS Price: Call Us |
| 3 |
60-3880 |
CONE Price: $179.96 |
| 4 |
165558 |
BRKT.BAR.SWAY.DECK Price: Call Us |
| 4 |
60-3850 |
CUP Price: $109.74 |
| 5 |
4939M |
SUB= 85902 Price: Call Us |
| 5 |
60-3840 |
CONE Price: $163.95 |
| 6 |
165557 |
BAR.SWAY.92.CRD Price: Call Us |
| 6 |
62-6450 |
RETAINING RING KIT Price: $152.42 |
| 7 |
107-4341 |
BOLT-WHEEL Price: $21.71 |
| 8 |
850857 |
BLADE BOLT Price: Call Us |
| 9 |
10030600 |
SUB= 10040600 Price: Call Us |
| 9 |
98-8270 |
BOLT Price: $1.59 |
| 10 |
107-4345 |
COVER Price: $545.42 |
| 10 |
140296 |
WASHER.HARD.BLADE Price: Call Us |
| 11 |
108-1445 |
RING-RETAINING Price: $1.97 |
| 11 |
170037 |
BLADE Price: Call Us |
| 12 |
129895 |
BEARING.BALL Price: Call Us |
| 12 |
62-6430 |
GEAR Price: $142.98 |
| 13 |
137645 |
SUB= 137646 Price: Call Us |
| 13 |
60-3990 |
WASHER-THRUST Price: $10.52 |
| 14 |
107-4346 |
O-RING Price: $4.76 |
| 14 |
128774 |
HSG ASM MANDREL Price: Call Us |
| 15 |
110485X |
BEARING Price: Call Us |
| 15 |
60-4060 |
COVER Price: $9.99 |
| 16 |
107-4347 |
PLUNGER Price: $25.56 |
| 16 |
170038 |
BLADE Price: Call Us |
| 17 |
322-1 |
SCREW-HH Price: $0.22 |
| 17 |
72140610 |
BOLT.3/8-14X1.25 Price: Call Us |
| 18 |
60-4040 |
PLUG Price: $11.10 |
| 18 |
72110608 |
BOLT D Price: Call Us |
| 19 |
108-1443 |
PRIMARY CARRIER ASM Price: $1,365.47 |
| 19 |
132827 |
BOLT SHD 5/16-18 Price: Call Us |
| 20 |
165484 |
BOLT.3/8-24X1.25 Price: Call Us |
| 20 |
60-3900 |
GEAR Price: $1,114.65 |
| 21 |
108-1444 |
SECONDARY CARRIER ASM Price: $1,524.37 |
| 21 |
73680500 |
SUB= 73690500 Price: Call Us |
| 22 |
165243 |
BRKT.IDLER.SPRT.CRD Price: Call Us |
| 22 |
82-8700 |
RING Price: $1.97 |
| 23 |
60-3950 |
SPRING Price: $8.11 |
| 24 |
165242 |
BRKT.SUSP.LF.92.CRD Price: Call Us |
| 24 |
60-3940 |
WASHER Price: $4.07 |
| 25 |
107-4342 |
HUB Price: $1,742.44 |
| 25 |
165244 |
BRKT.SUSP.RF.92.CRD Price: Call Us |
| 26 |
165237 |
BRACE.SUPT.SUSP.FRT.CRD Price: Call Us |
| 26 |
60-3910 |
WASHER Price: $1.35 |
| 27 |
165568 |
BRKT.ASM.SUSP.RR.92.CRD Price: Call Us |
| 27 |
60-3890 |
BOLT Price: $3.11 |
| 28 |
107-4340 |
SHAFT-INPUT Price: $281.87 |
| 28 |
165567 |
BRKT.ASM.SUSP.LR.92.CRD Price: Call Us |
| 30 |
60-3800 |
COUPLING Price: $131.07 |
| 31 |
129963 |
WASHER Price: Call Us |
| 32 |
153531 |
PULLEY.MAND.36/46 Price: Call Us |
| 33 |
137266 |
SUB= 139729 Price: Call Us |
| 34 |
165239 |
BRKT.GUAGE.WHL.LF.92.CRD Price: Call Us |
| 35 |
165238 |
BRKT.GUAGE.WHL.RF.92.CRD Price: Call Us |
| 36 |
146763 |
PULLEY.IDLER.4.25 Price: Call Us |
| 37 |
19131316 |
WASHER Price: Call Us |
| 40 |
73680600 |
SUB= 73690600 Price: Call Us |
| 44 |
165724 |
COVER.MANDREL.LH.92.CRD Price: Call Us |
| 45 |
165556 |
COVER.MANDREL.RH.92.CRD Price: Call Us |
| 46 |
137729 |
SCREW.1/4-20X5/8 Price: Call Us |
| 55 |
165445 |
ARM.IDLER.92.CRD Price: Call Us |
| 56 |
165723 |
SPACER.RETAINER.MOWER Price: Call Us |
| 61 |
165945 |
SPRING.TENSION.BELT Price: Call Us |
| 67 |
106932X |
KNOB T(3/8 HOLE) Price: Call Us |
| 68 |
165555 |
HEX-BELT.92.MWR.105AA Price: Call Us |
| 69 |
165482 |
SHAFT.ASM.W/LWR.BRG.RH.THD Price: Call Us |
| 116 |
137644 |
BOLT.SHOULDER Price: Call Us |
| 117 |
133957 |
WHEEL GAGE DONUT Price: Call Us |
| 118 |
73930600 |
LOCKNUT Price: Call Us |
| 119 |
19121414 |
WASHER Price: Call Us |
| 124 |
72110612 |
BOLT.3/8-16X1.50 Price: Call Us |
| 128 |
153390 |
WASHER.FELT. Price: Call Us |
| 130 |
72110506 |
SUB= 72270506 Price: Call Us |
| 131 |
165661 |
CHUTE.BAGGER.CRD Price: Call Us |
| 151 |
169670 |
BRKT CLUTCH CABLE Price: Call Us |
| 152 |
170300 |
CABLE CLUTCH CRD SERVICE Price: Call Us |
| 153 |
169674 |
WASHER FLAT Price: Call Us |
| 154 |
169675 |
SPRING RETAINER Price: Call Us |
| 155 |
169671 |
SPRING RETENTION LVR CLUTCH CAB Price: Call Us |
| 156 |
169672 |
SPACER Price: Call Us |
| 157 |
169669 |
ROD.CLUTCH.CABLE.3/8 Price: Call Us |
| 158 |
17720410 |
SCREW LT Price: Call Us |
| 130794 |
MANDREL |
ASM Price: Call Us 130794 |
| 165579 |
MANDREL.ASM.CRD.LH.THREADS |
Price: Call Us 165579 |
