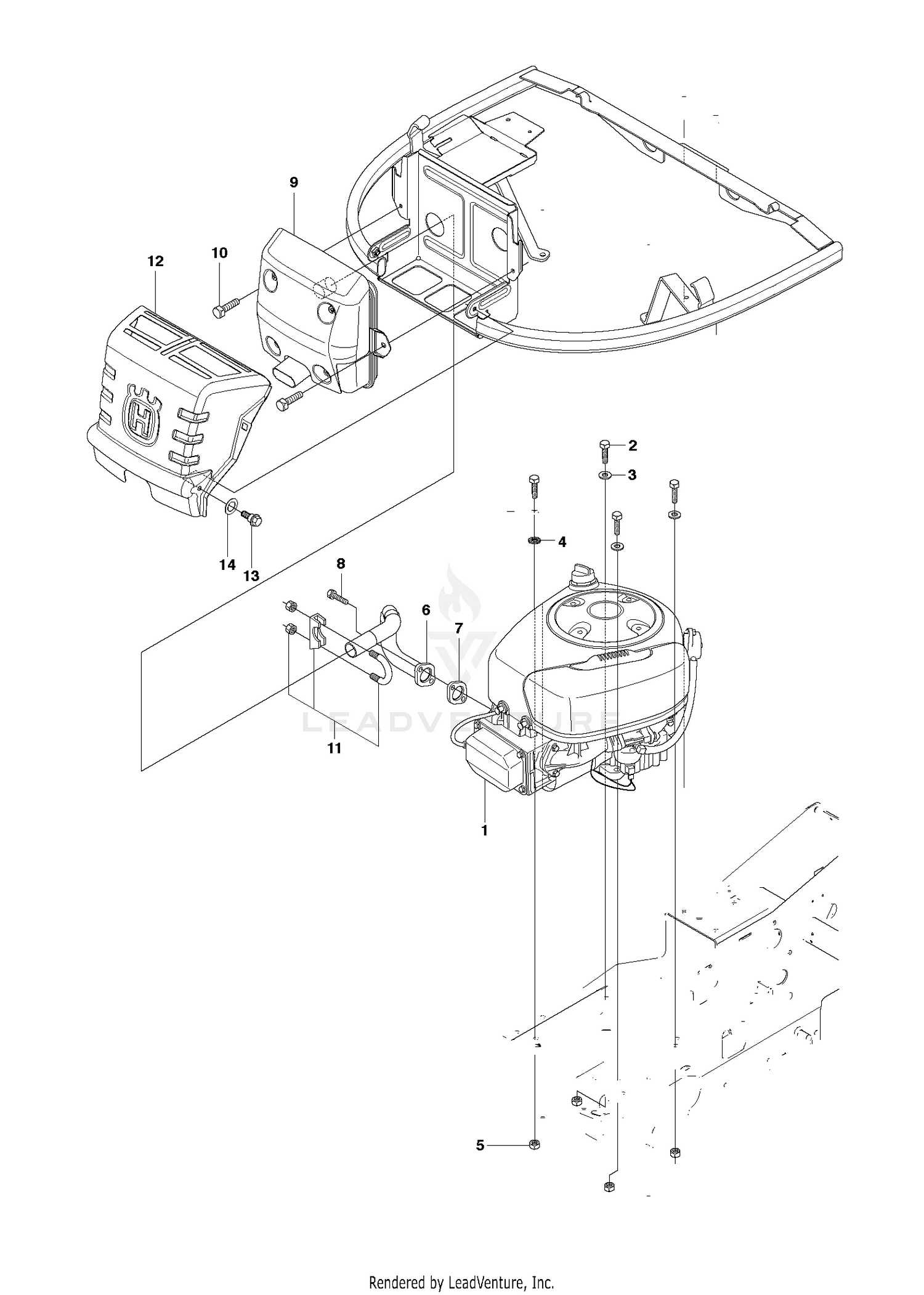

ENGINE
Parts (33)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 544833101 | ENGINE Price: $1,699.99 |
| 2 | 725245751 | SCREW Price: $4.99 |
| 3 | 734116401 | WASHER BRB 8.4X17 Price: $5.99 |
| 4 | 735216400 | Washer Price: $1.29 |
| 6 | 535500601 | EXHAUST PIPE ASSY Price: $32.99 |
| 7 | 506914501 | FLANGE Price: $4.99 |
| 8 | 506556301 | BOLT Price: $3.99 |
| 9 | 544335701 | MUFFLER ASSY Price: $159.99 |
| 10 | 105-3735 | CONTROL PLATE ASM Price: $167.82 |
| 10 | 725236461 | SCREW Price: $2.99 |
| 11 | 501152201 | CLAMP ASSY EXHAUST This part replaces 506668401. Price: $2.99 |
| 12 | 544248301 | HEAT PROTECTOR Price: $119.99 |
| 13 | 506597401 | BOLT Price: $5.99 |
| 14 | 506839401 | SPRINGWASHER Price: $3.99 |
| 20 | 98-9662 | LEVER-CONTROL, SPEED Price: $72.44 |
| 30 | 98-9572 | LEVER-CONTROL, SPEED Price: $47.15 |
| 40 | 105-3788 | O-RING Price: $2.90 |
| 50 | 98-7602 | PIN-SPRING Price: $0.64 |
| 60 | 98-9594 | WASHER-PLAIN Price: $2.49 |
| 70 | 98-9589 | NUT Price: $1.46 |
| 80 | 98-9658 | GOVERNOR LEVER ASM Price: $34.84 |
| 90 | 98-9663 | LEVER-STOP, ENGINE Price: $13.34 |
| 100 | 98-7601 | SEAL-OIL Price: $7.88 |
| 110 | 98-9472 | SPRING-RETURN Price: $8.91 |
| 120 | 98-9664 | SHAFT-LEVER, STOP Price: $33.92 |
| 130 | 98-9637 | GASKET Price: $3.98 |
| 140 | 98-7692 | BOLT Price: $0.92 |
| 150 | 127-0401 | BOLT-HEX Price: $0.39 |
| 160 | 98-7654 | GASKET Price: $8.84 |
| 170 | 105-3710 | STUD Price: $1.16 |
| 180 | 100-2203 | NUT-FLANGE Price: $0.87 |
| 190 | 117-7565 | BOLT-ADJUSTING Price: $2.66 |
| 200 | 117-7566 | BOLT-ADJUSTING Price: $4.96 |
